684-2451-022

(0) No Reviews yet
$20.49
SKU: Trombetta 684-2451-022

This item is IN STOCK

Current Stock: 72

Details

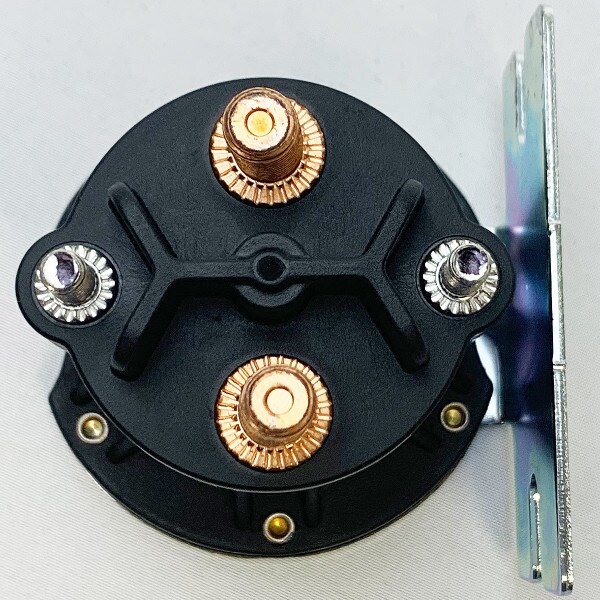

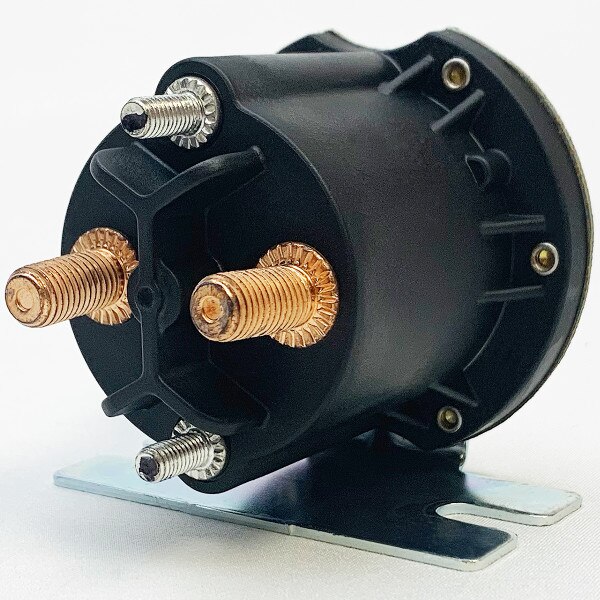

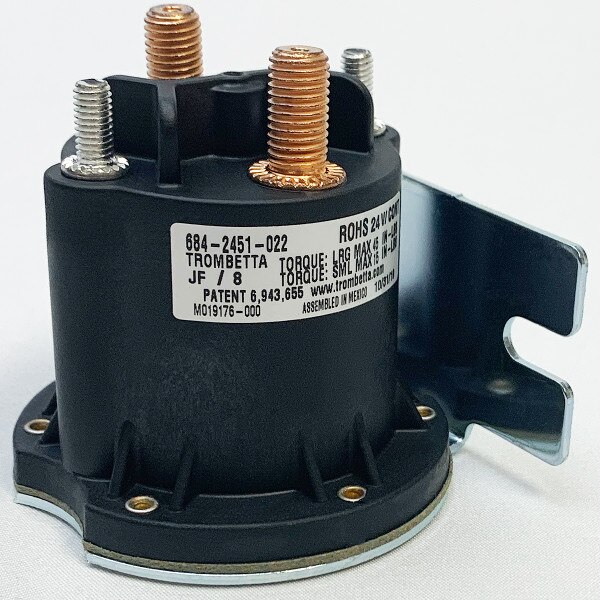

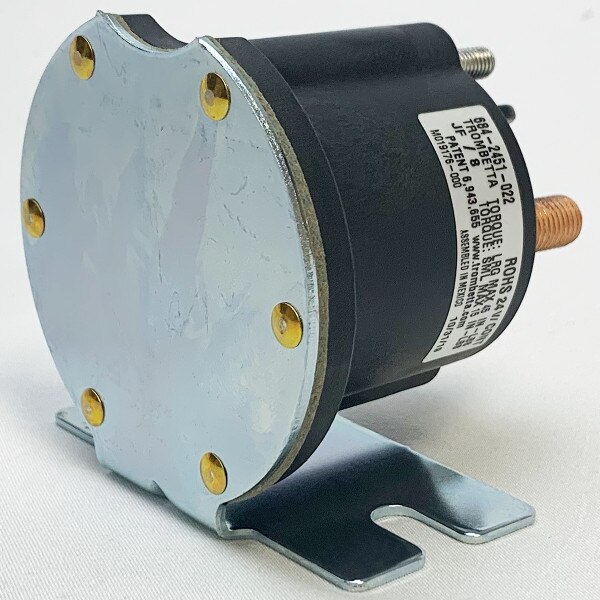

The unique design of the Trombetta 684-2451-022 PowerSeal 24 Volt DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal. Coil terminals: non-grounded, two (2) 10-32; Contact studs: two (2) 5/16-24; Duty cycle: open,100% continuous; Contact material: silver alloy; flat "L" mounting bracket, Voltage: 24V. Sealed design protects against dust and water jets. The PowerSeal?s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again. Sales Bulletin: Intermittent Duty PowerSeal FamilySales Bulletin: Continuous Duty PowerSeal FamilyDimensional Drawing: 684-XX51 (E08432)Installation Instructions: Non-Grounded PowerSeal ContactorHow To Order This Part



For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.
