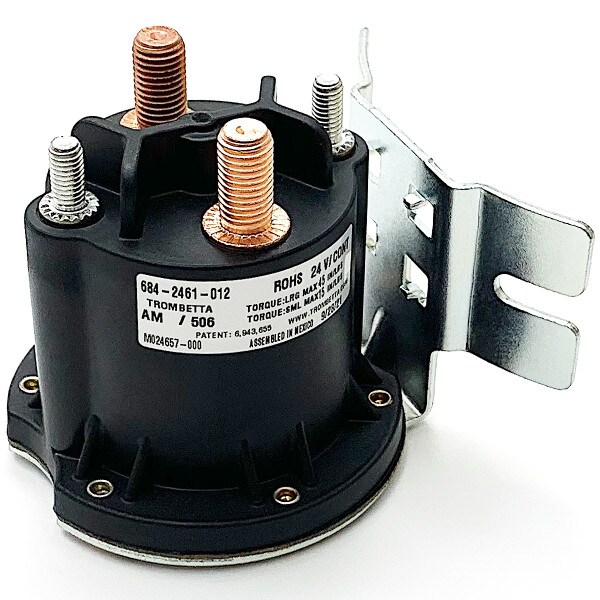

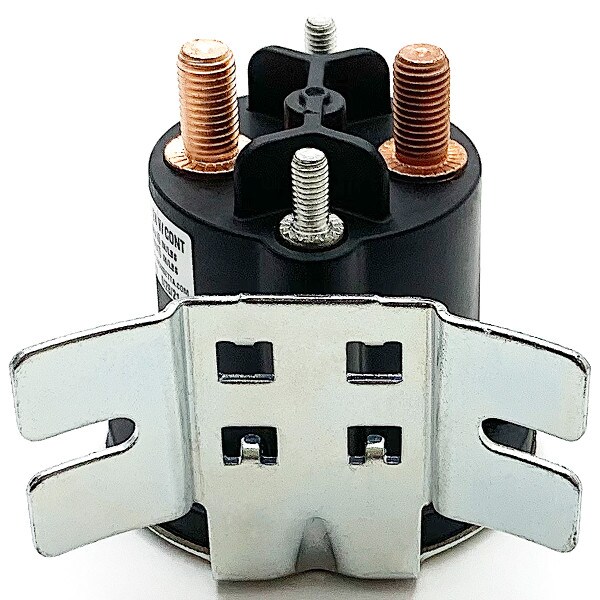

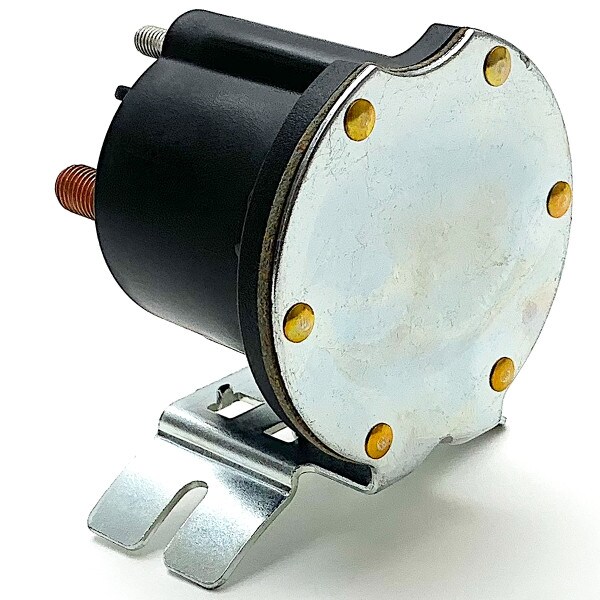

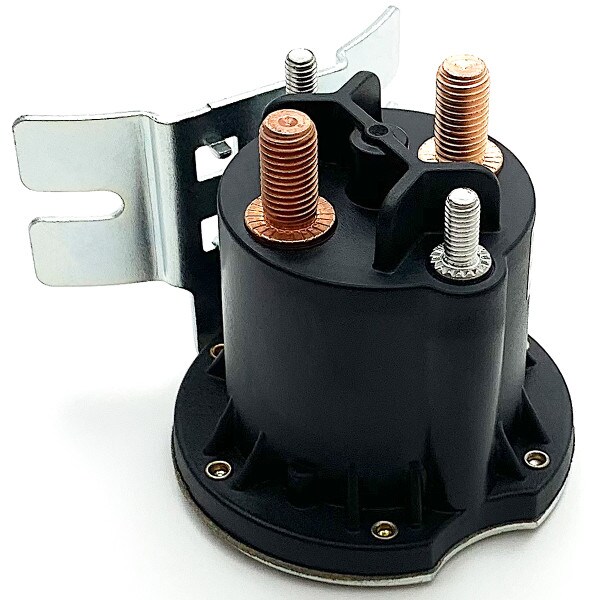

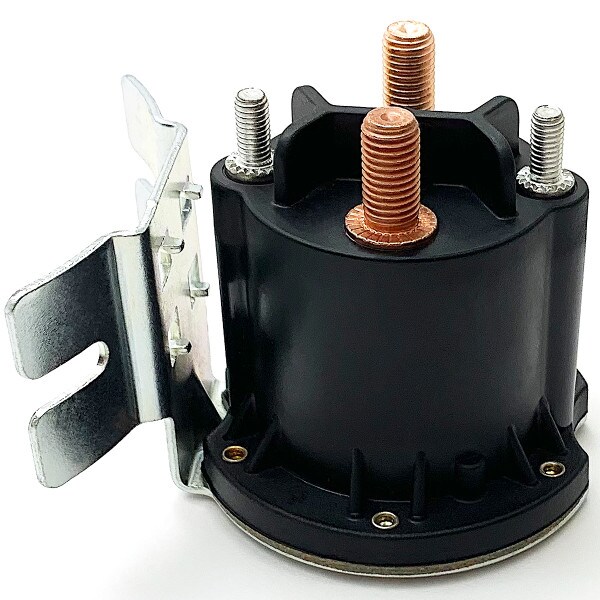

684-2461-012 PowerSeal 24 Volt DC Contactor
The unique design of the Trombetta 684-2461-012 PowerSeal 24 Volt DC Contactor allows it to be used in tough environmental conditions. If your application requires a sealed or submersible design, you must have the PowerSeal.
Coil terminals: Non-grounded, two (2) 10-32; Contact studs: two (2) 5/16-24; Duty cycle: 100% continuous; Contact material: silver alloy; Curved Narrow "L" mounting bracket; Voltage: 24V. Sealed design protects against dust and water jets.
The PowerSeal’s IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If the PowerSeal unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.
Sales Bulletin: Continuous Duty PowerSeal Family
Dimensional Drawing: 684-XX61 (E08516)
Installation Instructions: Non-Grounded PowerSeal Contactor
How To Order This Part
