7' Leadwire: Thermocouple to LED Pyrometer, "K-Type" (035-013-07)
Hewitt Industries 7' Leadwire for Thermocouple to LED Pyro, "K-Type" (035-013-07)
035-013-07 replaces 035-008More often than not, the leadwire length on a thermocouple is not adequate to make a connection.

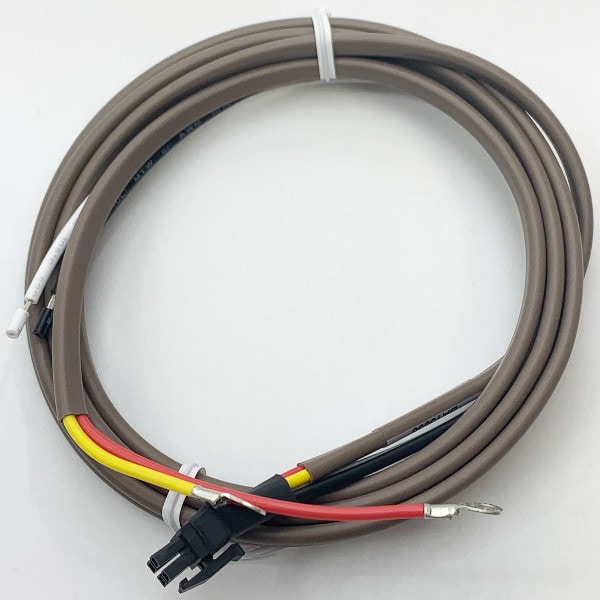

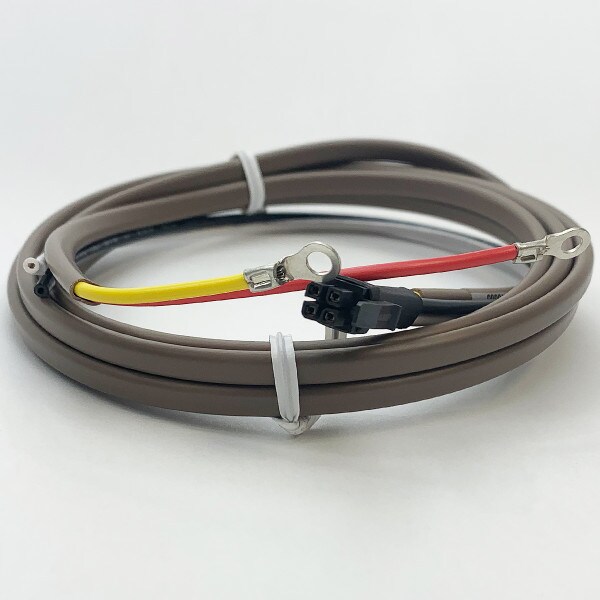

Hewitt offers this seven (7) foot long, "k-type" extension leadwire to increase the connection distance between a thermocouple and your Hewitt 2" LED pyrometer (010-210).
This model has four wires: the red wire (-) and the yellow wire (+) are a full 7 feet in length with round terminal lugs at the thermocouple end.
The black wire and the white wire (ground only) measure 12" in length and power the LED light in the pyrometer. At the other end, all four wires come together in a 4-pin male connector which snaps easily into the female connector on the back of the pyrometer.
If this web store item appears as "Out Of Stock", you may still purchase the item by adding it to your shopping cart anyway. We'll confirm availability and lead time with the manufacturer and let you know your approximate ship date.
Literature:
Sales Bulletin
