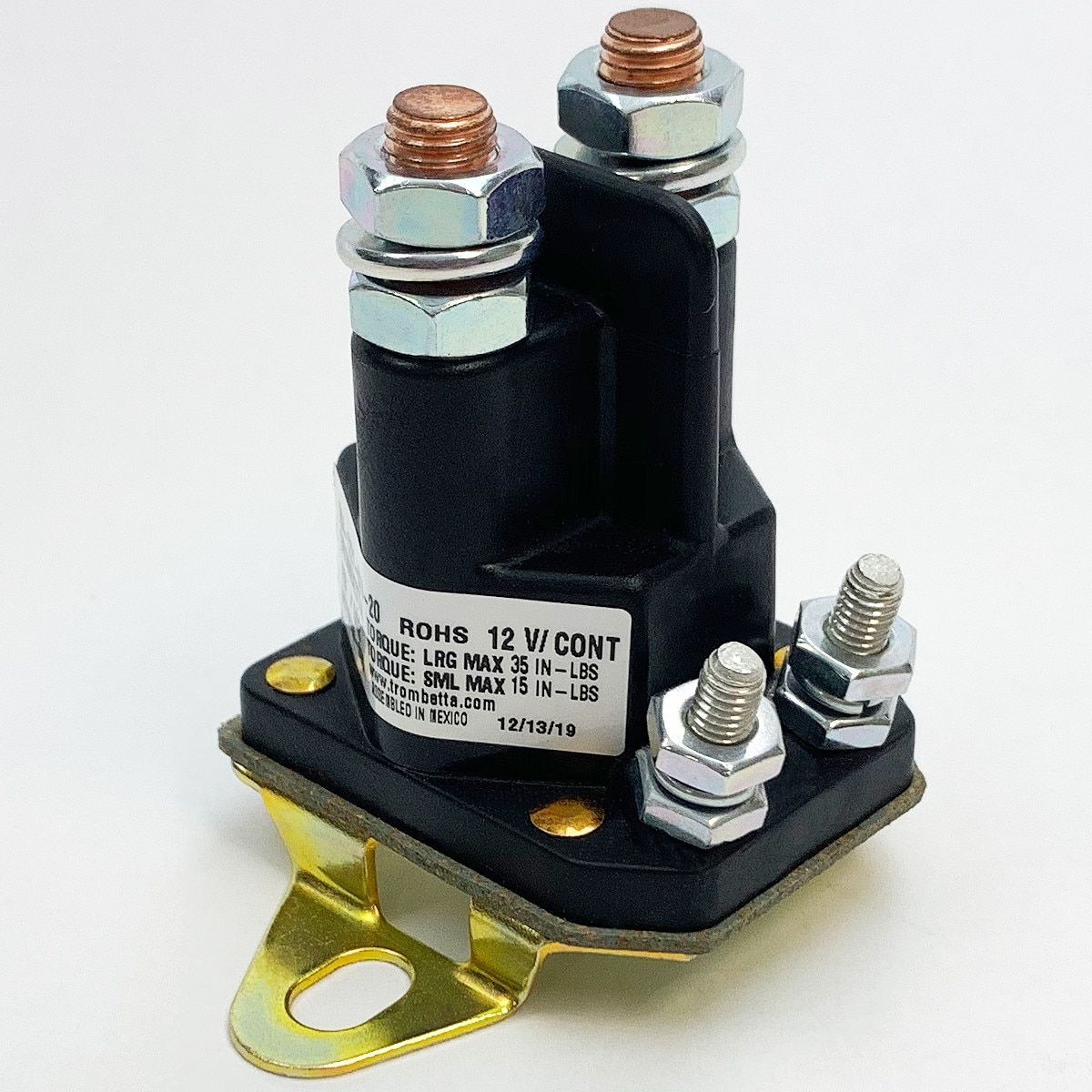

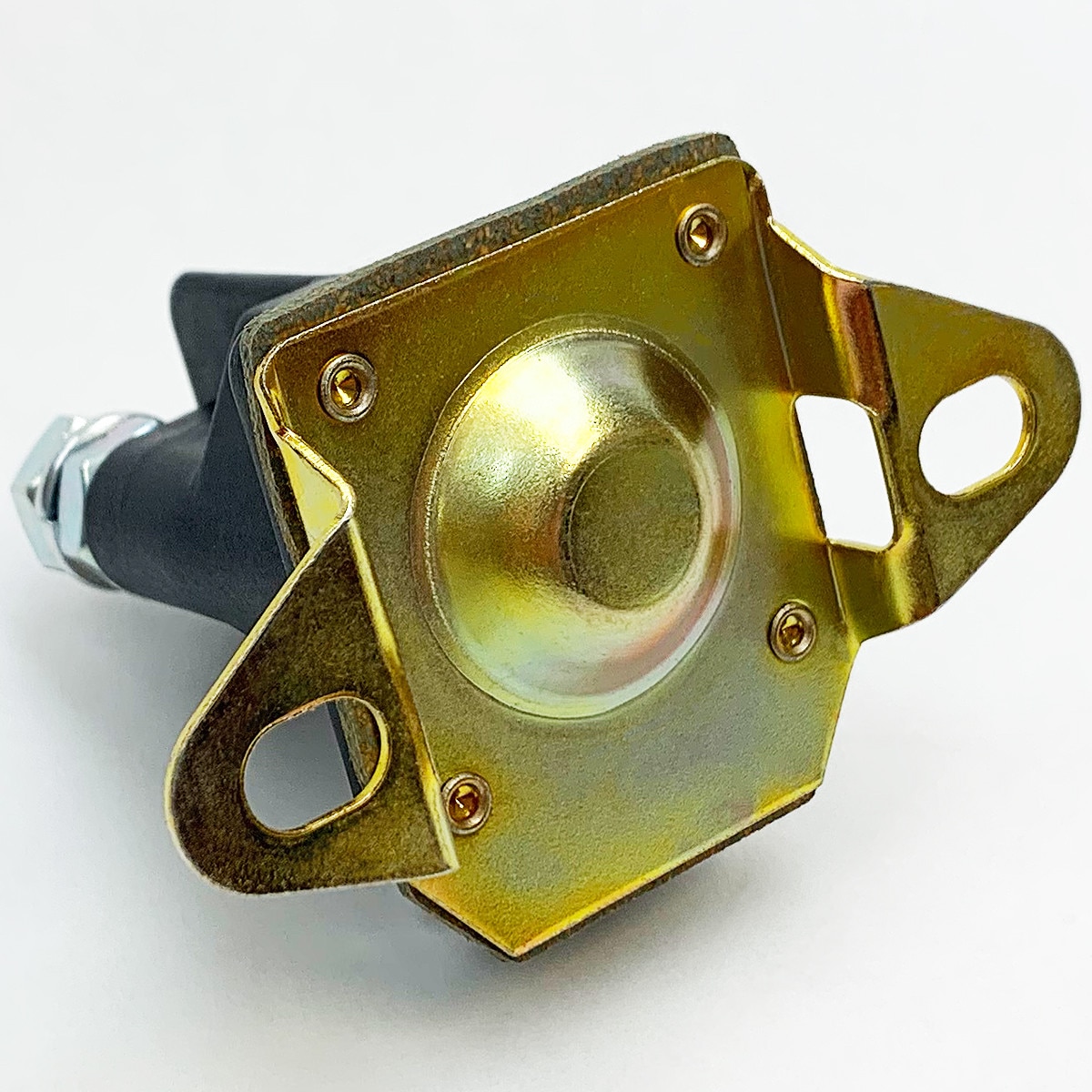

Trombetta 12 Volt DC Contactor (784-1221-020-20)

High Performance Plastic Family: 12VDC Contactor; (2) 5/16-24 high-current studs; (2) non-grounded 10-32 coil connection studs; continuous duty; silver alloy contacts; standard base bracket; no additional sealing; hardware included (784-1221-020-20)

A strong, high temperature resistant housing surrounds the Trombetta 784-1221-020-20 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions.

This 12-volt DC contactor can be used for both small engine starting applications and driving electric motors.



• Coil Terminals: Non-Grounded, Two (2) 10-32 Studs
• Contact Studs: (2) 5/16-24
• Duty Cycle: 100% Continuous
• Contact Material: Silver Alloy
• No Additional Sealing
• Mounting Hardware Included



Literature



1. Sales Bulletin: Plastic Family
2. Dimensional Drawing
3. Installation Instructions: Non-Grounded Plastic Contactor with Coil Studs
4. How To Order This Part
