Trombetta Plastic 12VDC Contactor (812-1211-211)
Trombetta Plastic - 12VDC Contactor; 1/4-20 studs; intermittent duty; spade terminal coil connection. (812-1211-211)
A strong, high temperature resistant housing surrounds the Trombetta 812-1211-211 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions. This 12 Volt DC contactor can be used for both small engine starting applications and driving electric motors. Works with some Briggs & Stratton mowers.
Plastic Family: 12 Volt DC Contactor
Coil terminals: (1) grounded 1/4" spade; (2) 1/4-20 studs; 15% sustained duty; copper contacts; L bracket; resistant to dust, liquid.
Pictures

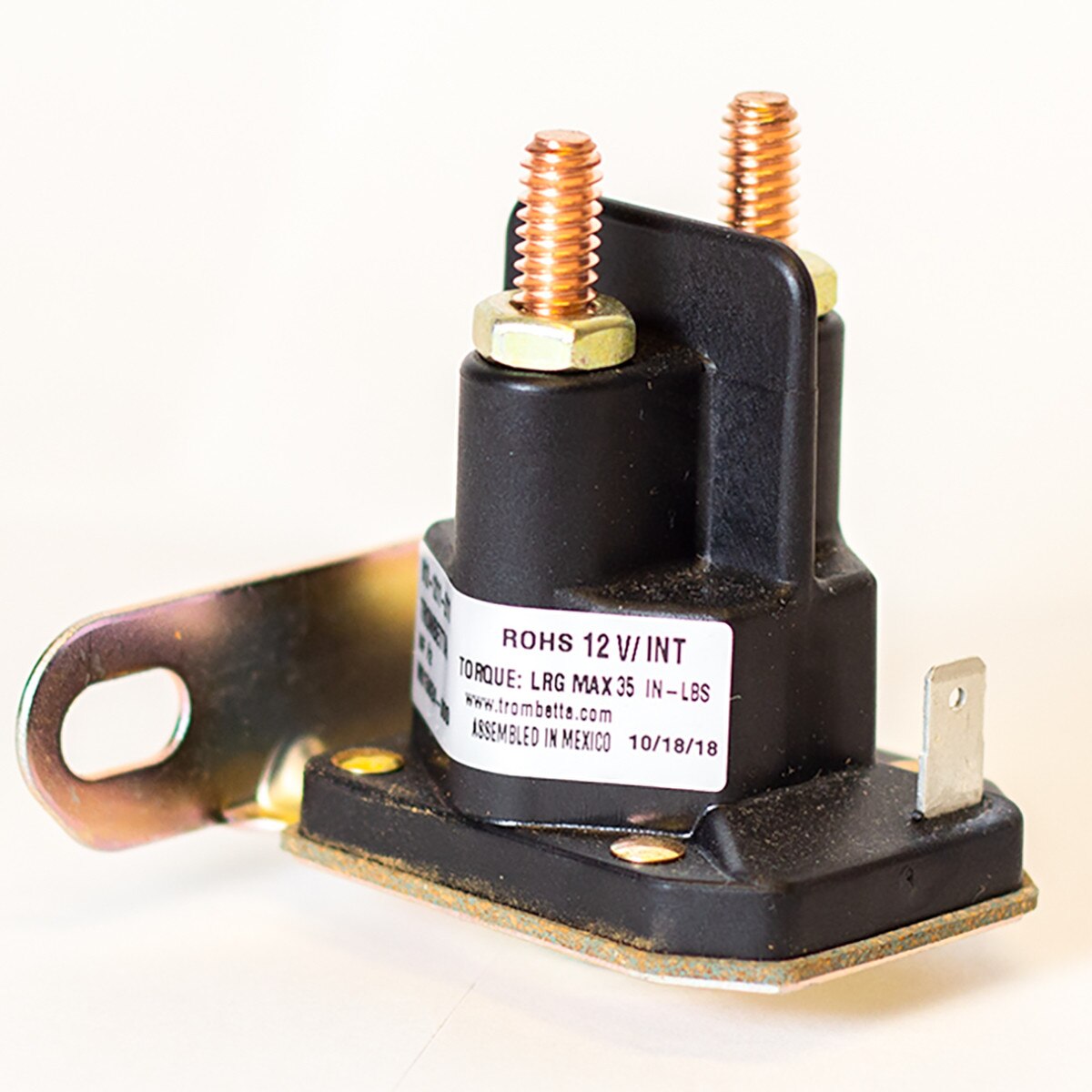

Larger Front View

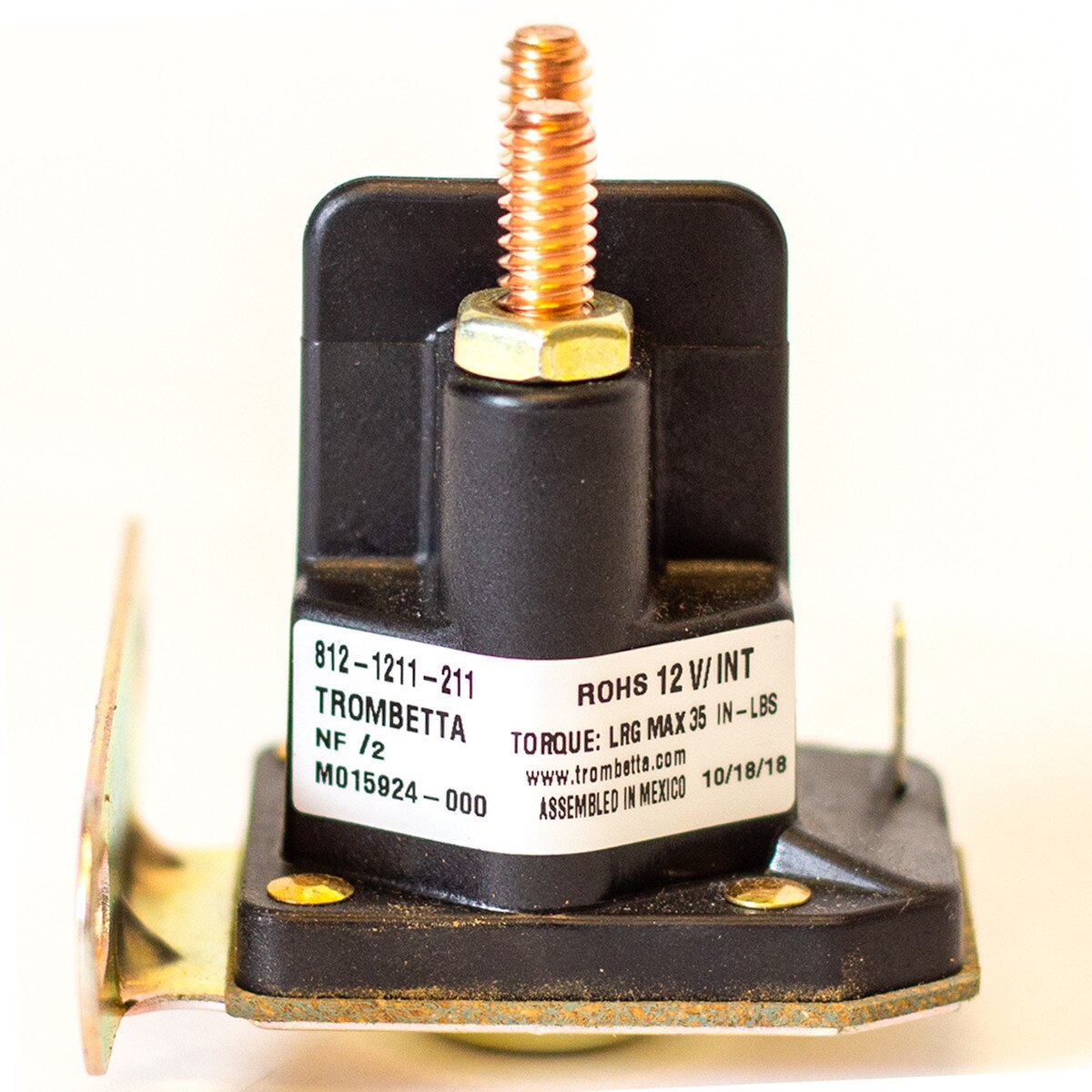

Larger Side View

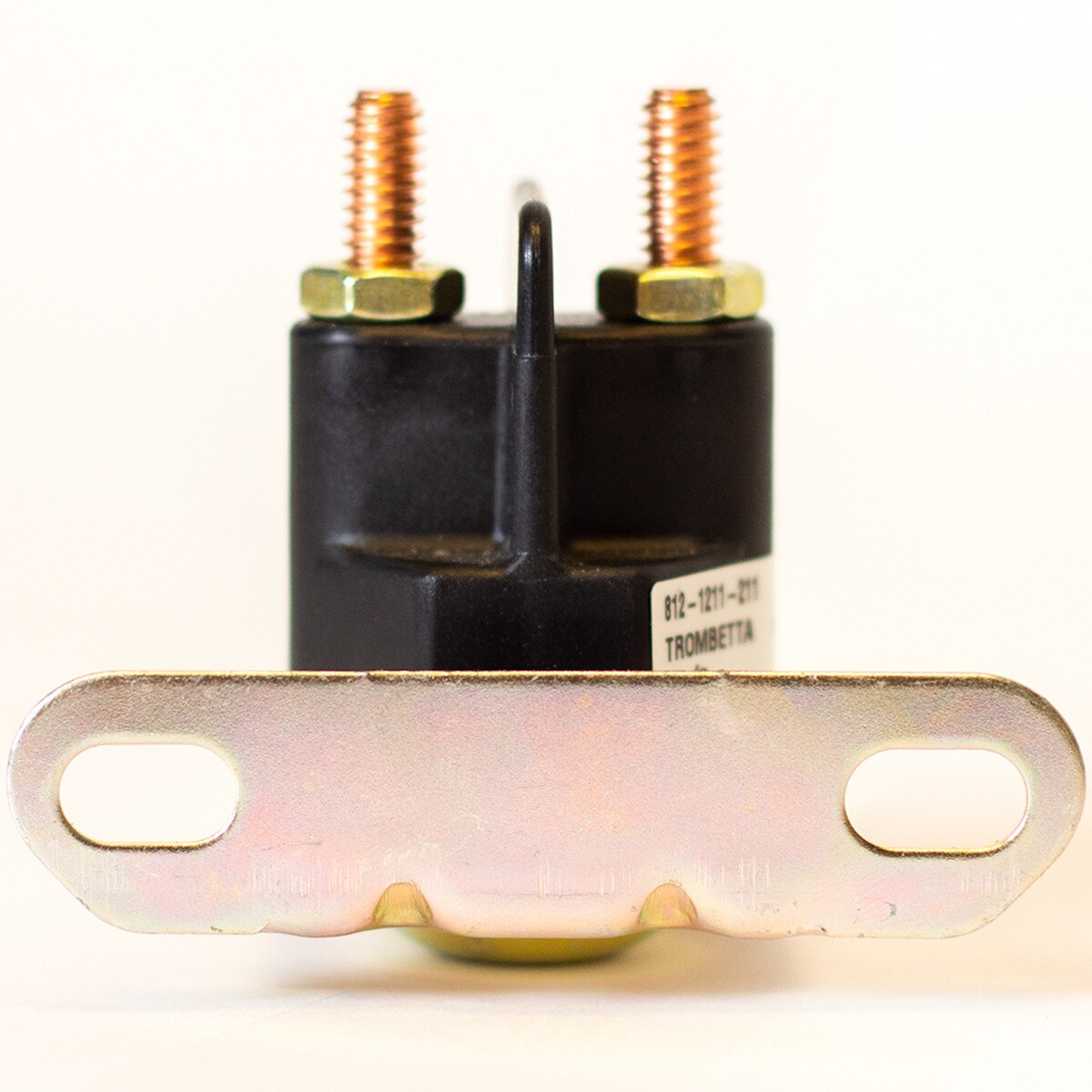

Larger Mounting Bracket View
Literature
- Sales Bulletin: Plastic Family
- Installation Instruction: Grounded Plastic Contactor with Spade
- How To Order This Part
MurCal is an Authorized Distributor of Trombetta products.
MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
