Plastic Family: 12 Volt DC Contactor (862-1241-211-12)
Plastic Family: 12 Volt DC Contactor (862-1241-211-12)

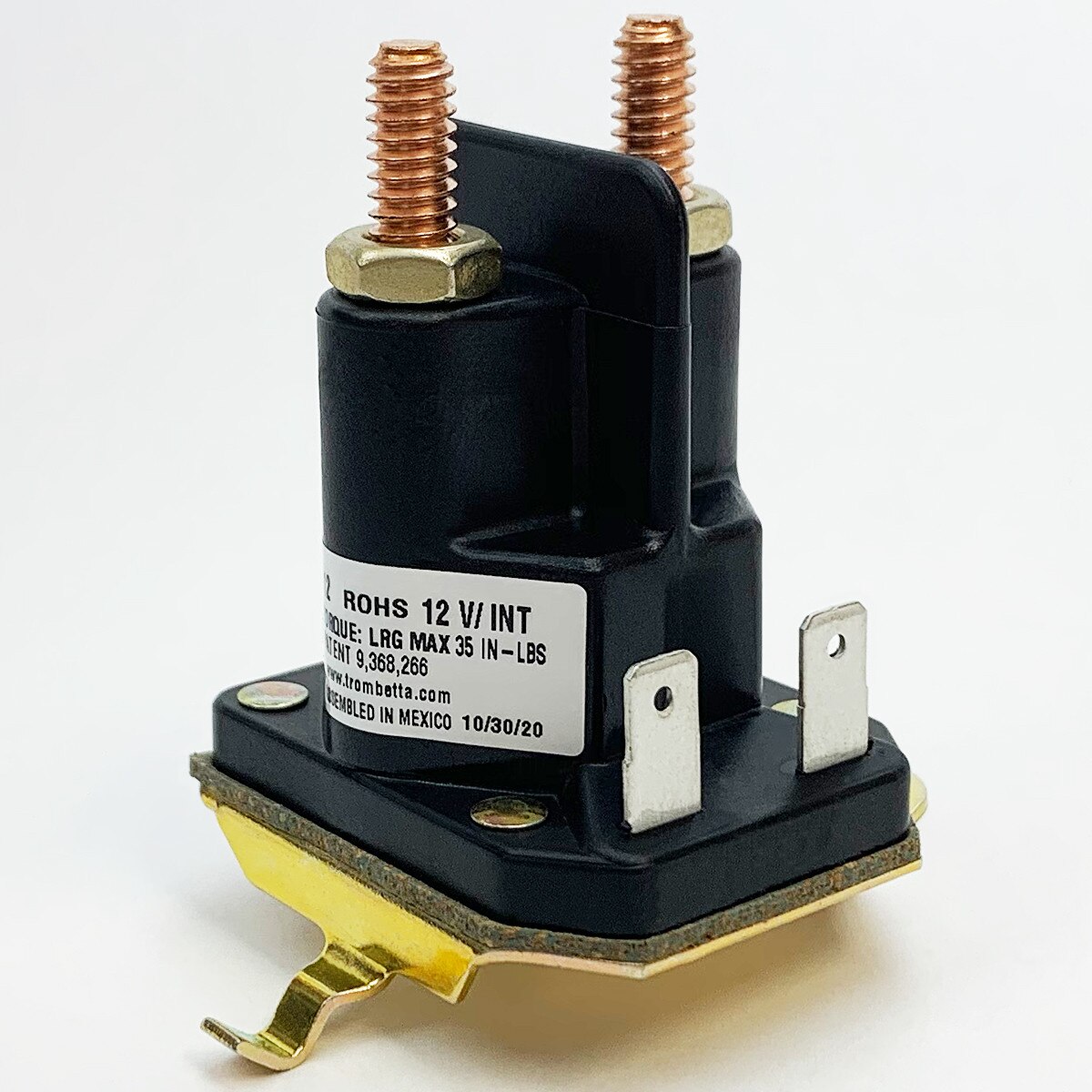

A strong, high temperature resistant housing surrounds the Trombetta 862-1241-211-12 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions.
Because of the uniquely designed mounting bracket, this 12 Volt DC contactor is EXCLUSIVE to Sears lawnmowers.
Features:
- Coil terminals: (2) non-grounded 1/4" spades.
- high current contact studs: (2) 1/4-20.
- 15% sustained duty.
- copper contacts.

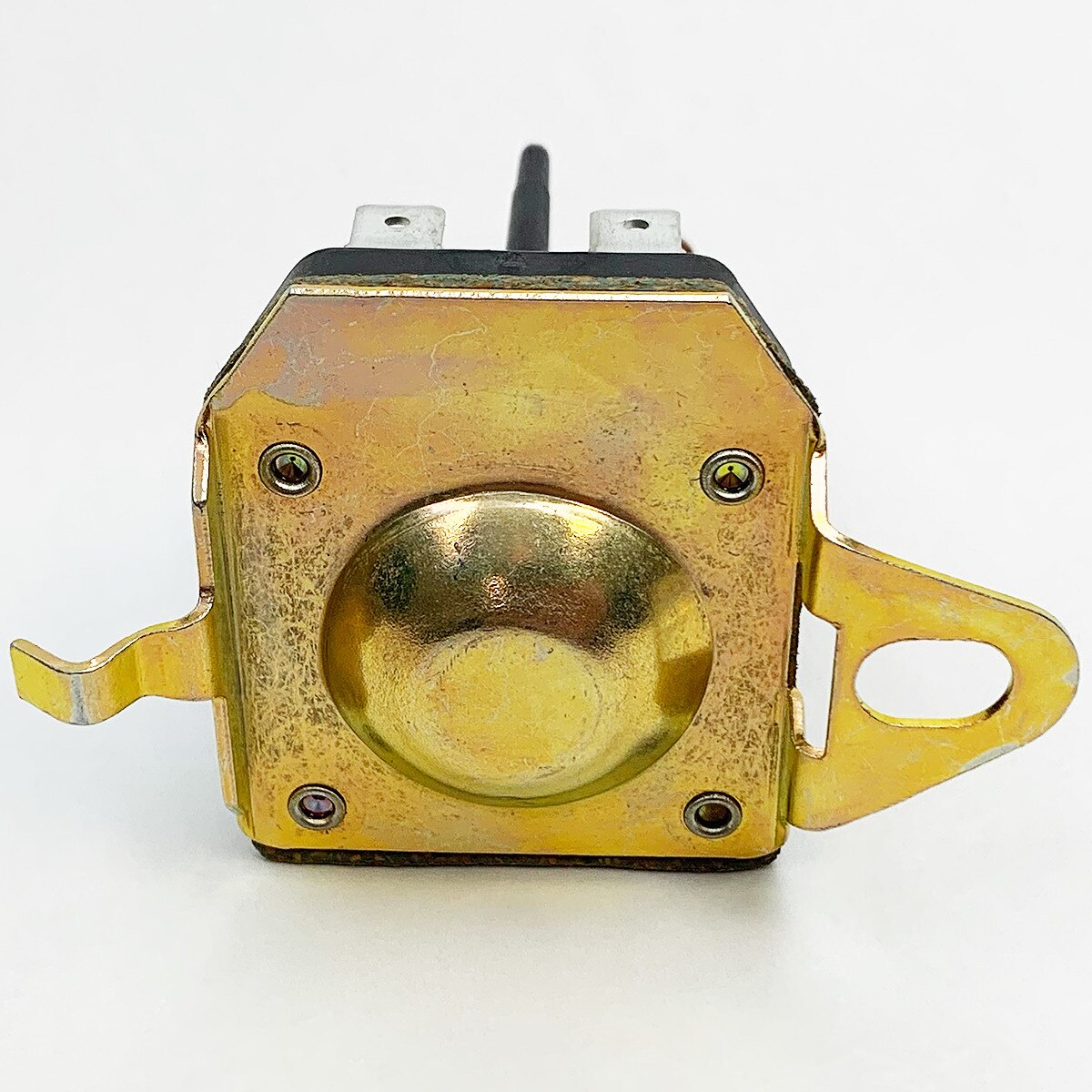

- oval hole (1) bracket with (1) mounting tab.
- sealing is resistant to dust, liquid.
Literature:
- Sales Bulletin: Plastic Family
- Installation Instructions: Non-Grounded Plastic Contactor with Spades
- Dimensional Drawing
- How To Order This Part
MurCal is an Authorized Distributor of Trombetta products.
MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
