Trombetta 892-1221-210-50 12 Volt DC Contactor
Trombetta 892-1221-210-50 Plastic Family: 12 Volt DC Contactor
A strong, high temperature resistant housing surrounds this improved Trombetta 892-1221-210-50 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions. This 12 volt intermittent duty contactor, with a carry current of 200 amps and inrush of 300 amps, can be used for both small engine starting applications and driving electric motors. You may use this model with confidence.
Coil terminals: (2) 1/4-20 copper contact studs; (2) non-grounded 10-32 studs, plus spades; 15% sustained duty; standard base bracket; no additional sealing.

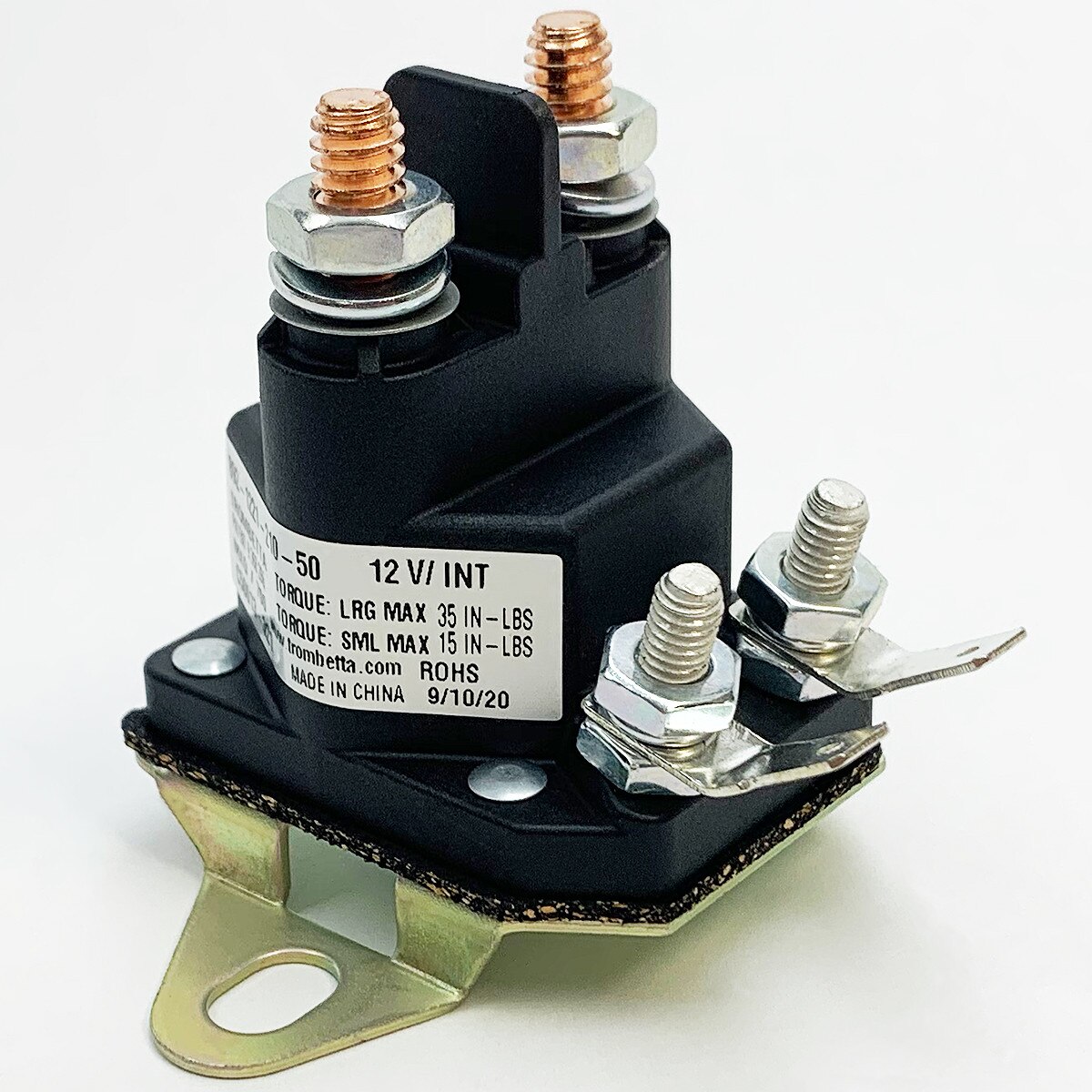

Image: Larger Front/Side View

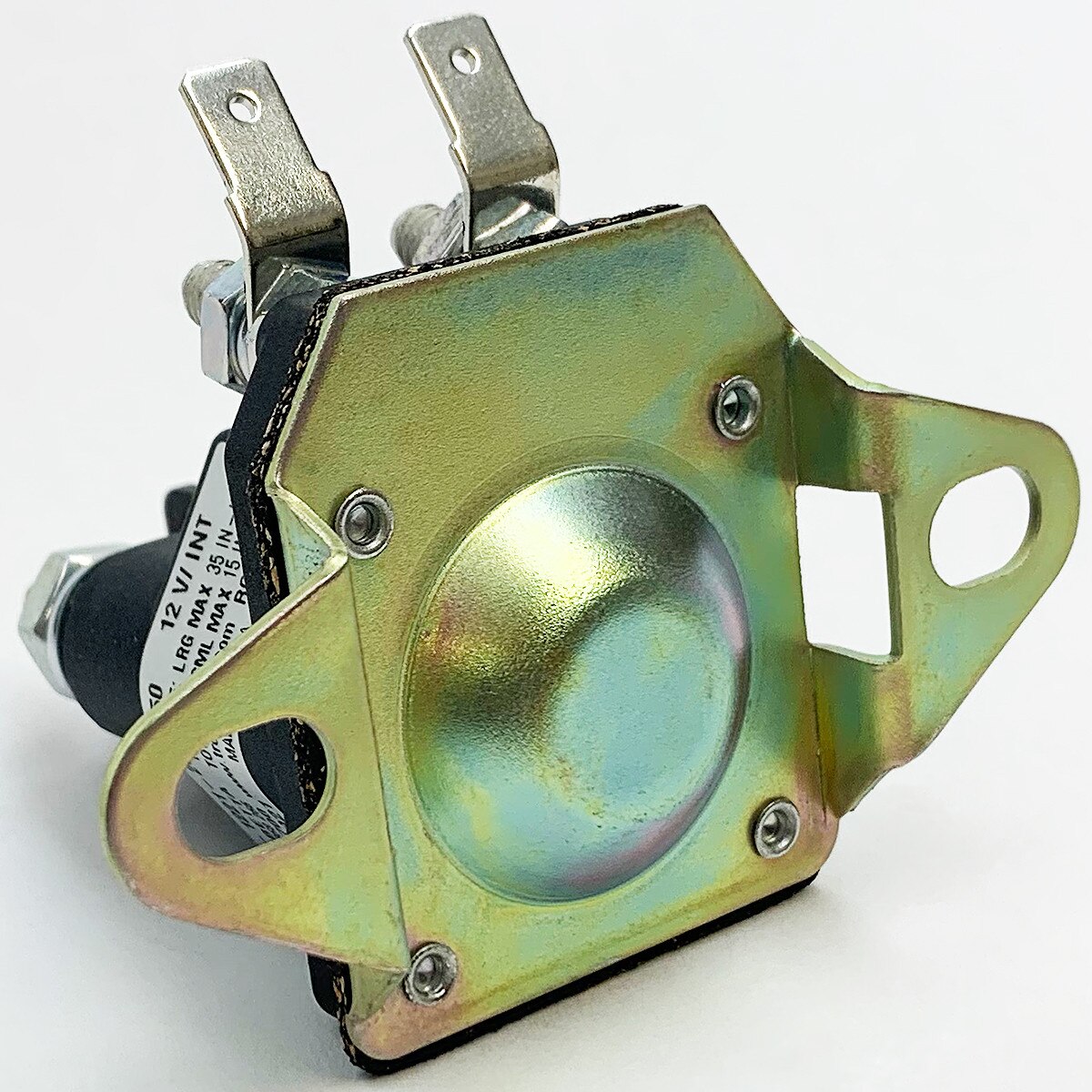

Image: Larger Rear View
LITERATURE
- Sales Bulletin: Plastic Family
- Installation Instructions: Non-Grounded Plastic Contactor with Coil Studs & Spades
- How To Order This Part
MurCal is an Authorized Distributor of Trombetta products.
MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
