Trombetta Plastic Family: 12 Volt DC Contactor (892-1251-210-50)

Trombetta Plastic Family: 12VDC Contactor; (2) 1/4-20 studs with push nut fasteners to lock each stud in place & (2) non-grounded 10-32 studs, plus spades; intermittent duty; copper contacts; hardware provided; universal bracket, 6.5 volt pull in voltage; direct replacement for 892-1251-210 (892-1251-210-50)

This new model features a smaller profile, push nut fastener stud locks, and a lower pull in voltage than the previous 892-1251-210 model. Trombetta considers the new "-50" model an improved version of the 892-1251-210, mainly because of the push nut fasteners.

A strong, high temperature resistant housing surrounds this improved Trombetta 892-1251-210-50 DC Contactor, resulting in high efficiency and suitability for a variety of environmental conditions. This 12 volt contactor can be used for both small engine starting applications and driving electric motors. This model is a direct replacement for part # 892-1251-210, which has been discontinued. You may use this model with confidence.

Coil Terminals: Non-Grounded, Two (2) 10-32 Studs, with Spades
High-Current Studs: Two (2) 1/4-20 Studs with Push Nut Fasteners to Lock Each Stud in Place
Voltage: 12 Volt
Duty Cycle: Intermittent (15% Sustained)
Contact Material: Copper
Hardware Provided
Mounting Bracket: Universal
No Additional Sealing
Lower 6.5 Volt Pull-In Voltage


Literature:



1. Sales Bulletin: Plastic Family
2. Dimensional Drawing (892-1251-210-50 and -53)
3. Dimensional Drawing (892-1251-210)
4. Installation Instructions: Non-Grounded Plastic Contactor with Coil Studs & Spades

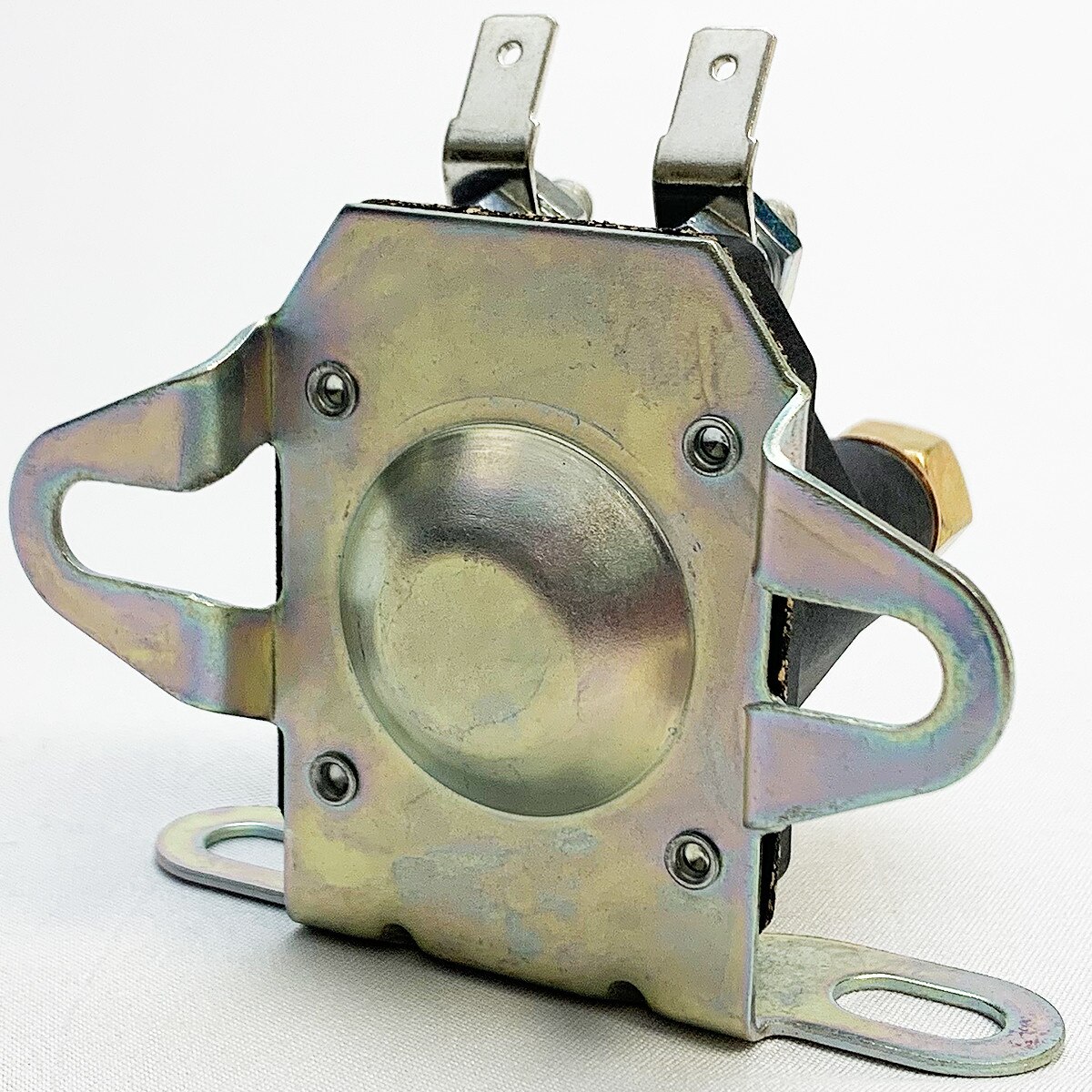

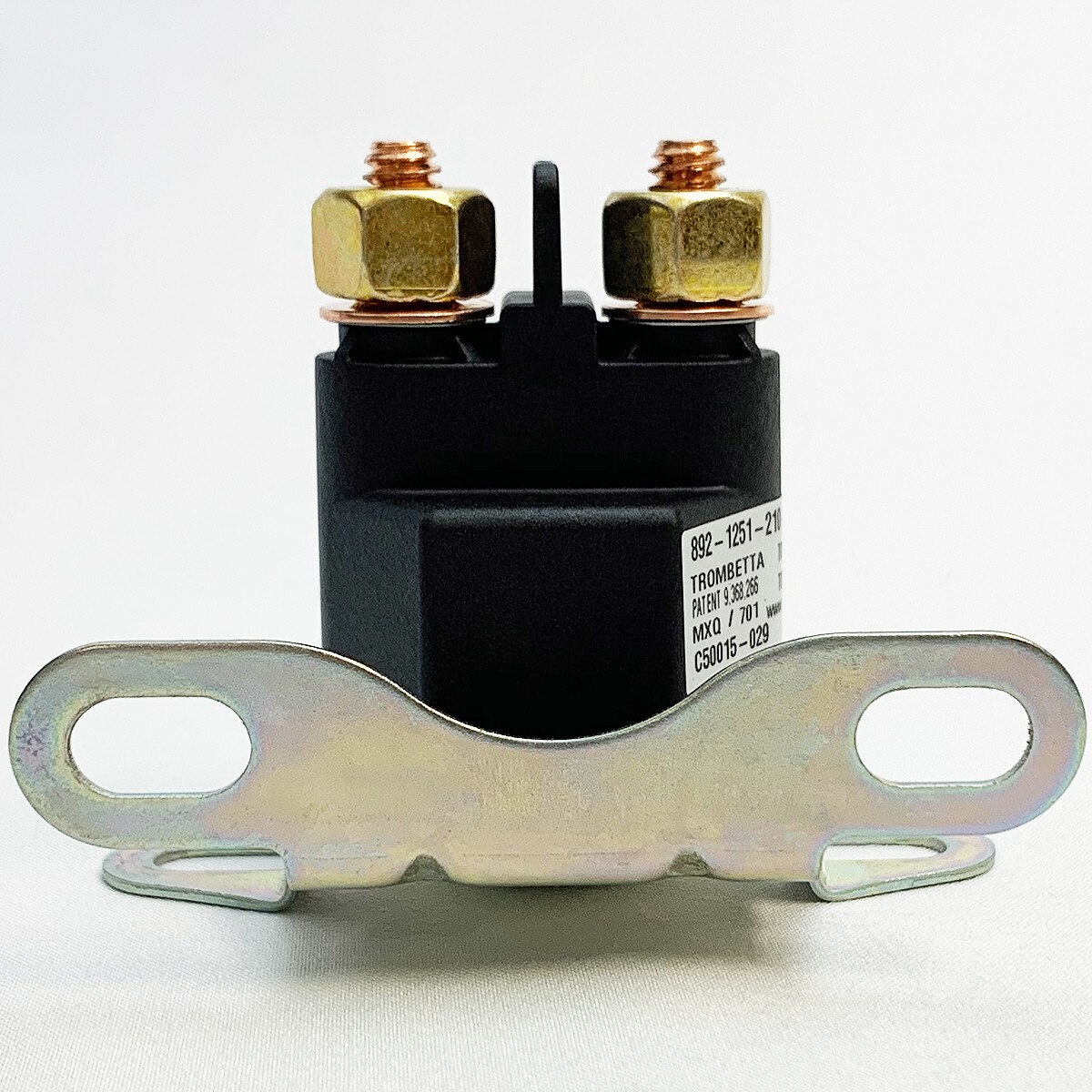

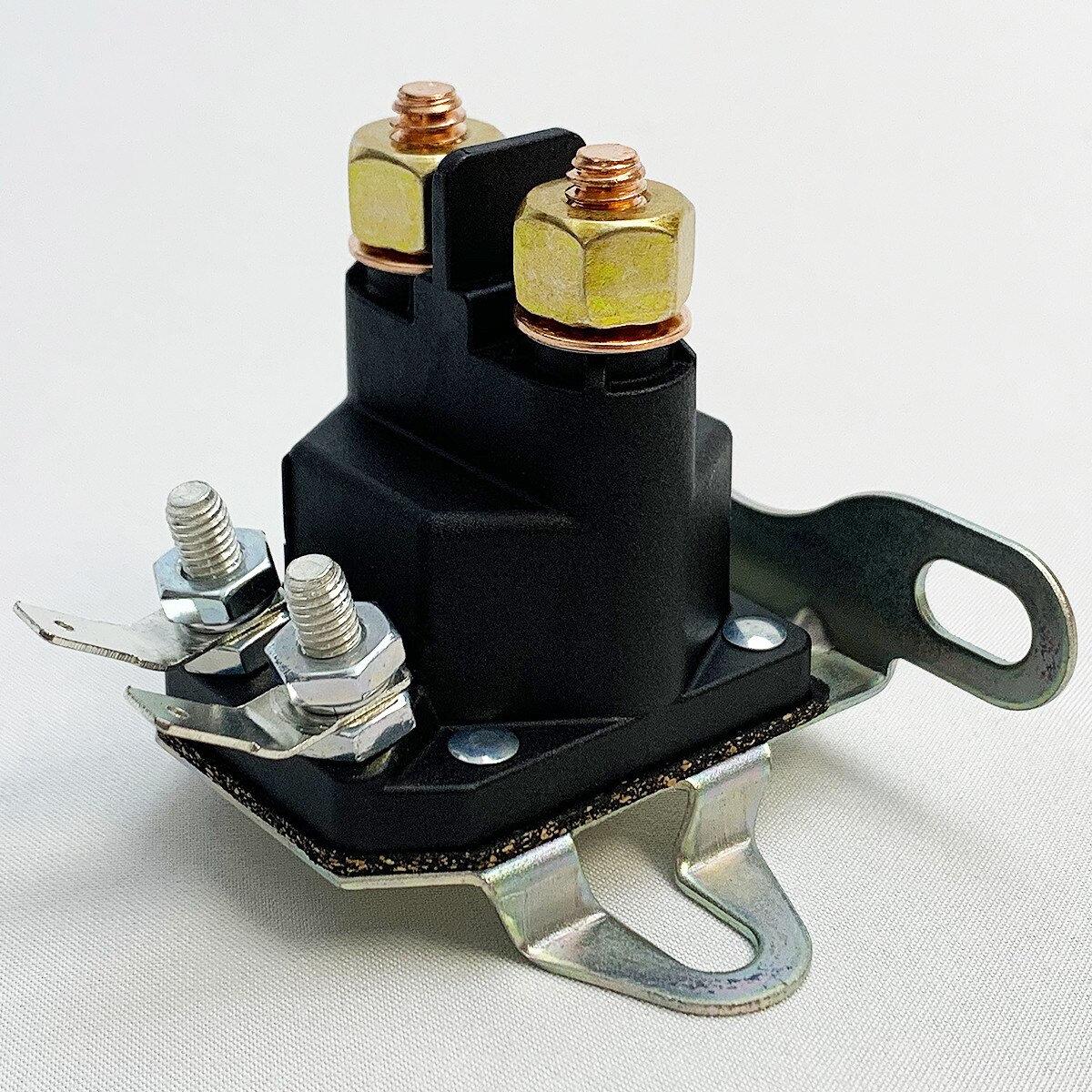

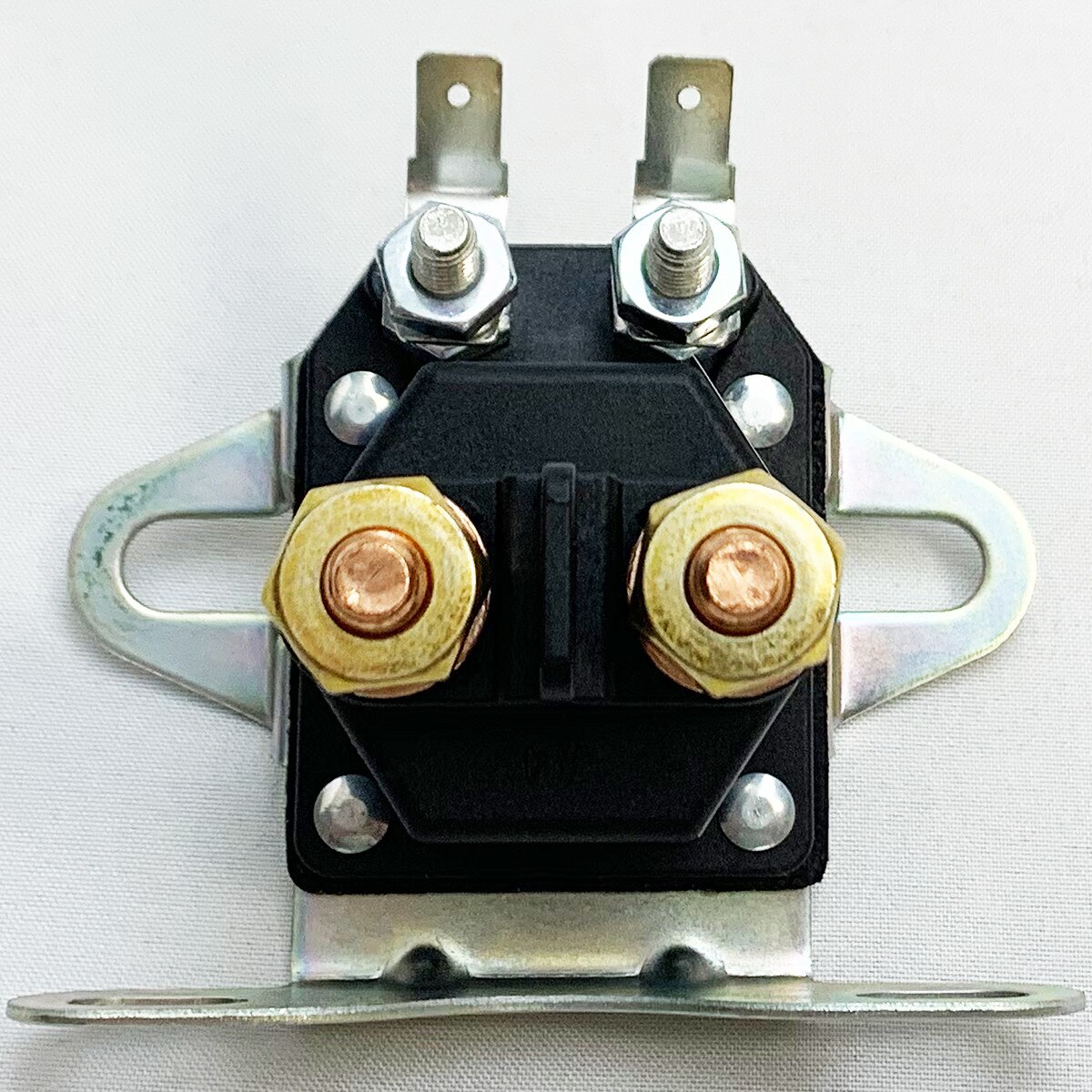

5. Close-Up Photographs
6. How To Order This Part
