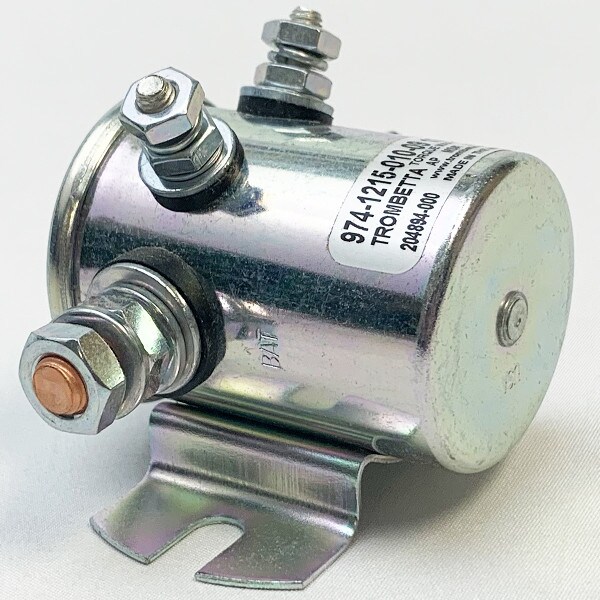

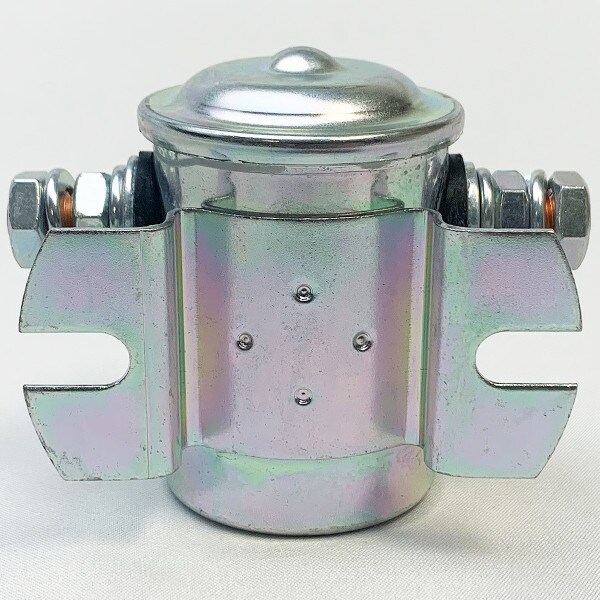

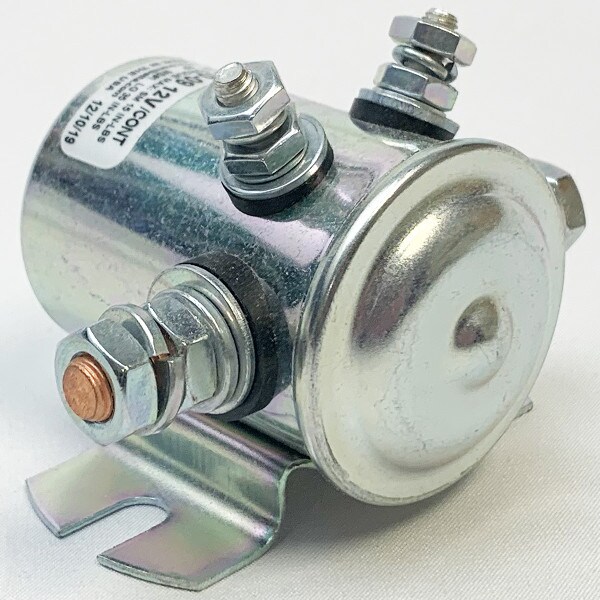

Trombetta Metal - 12VDC Contactor (974-1215-010-09)

Metal - 12VDC Contactor; (2) 5/16-24 & (2) non-grounded 10-32 studs; continuous duty; copper contacts; standard slot bracket; with mounting hardware.  (974-1215-010-09)

The Trombetta 974-1215-010-09 Metal DC Contactor utilizes a metal casing which allows for higher application ratings. The strength of this simple workhorse device is its ability to handle high currents, both inrush and interrupt.

Coil Terminals: Non-Grounded, Two (2) 10-32 Studs
Contact Studs: Two (2) 5/16-24 Studs
Duty Cycle: 100% Continuous
Contact Material: Copper
Voltage: 12 Volt
Standard Slot Bracket
No Additional Sealing
Mounting Hardware Included


Literature:

1. Sales Bulletin: Metal Family
2. Dimensional Drawing
3. Installation Instructions: Non-Grounded Metal Contactor
4. Old Part Number Conversion Chart
5. How To Order This Part
