Trombetta Metal - 24 VDC Contactor (974-2415-010-09)

(0)No Reviews yet
$31.99
SKU: Trombetta 974-2415-010-09

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

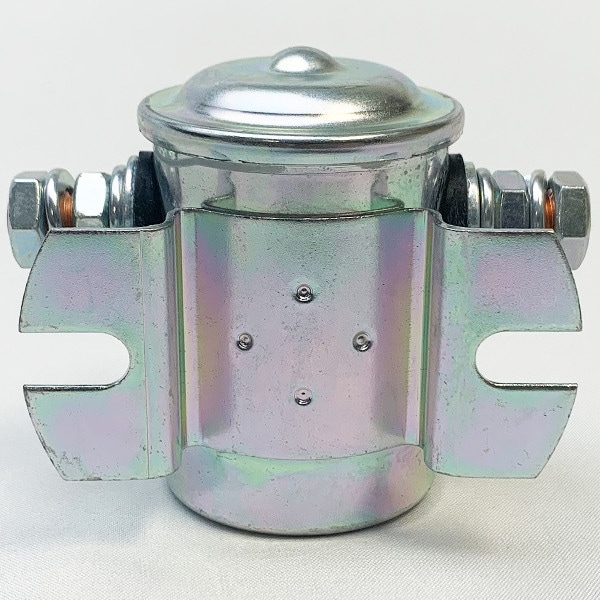

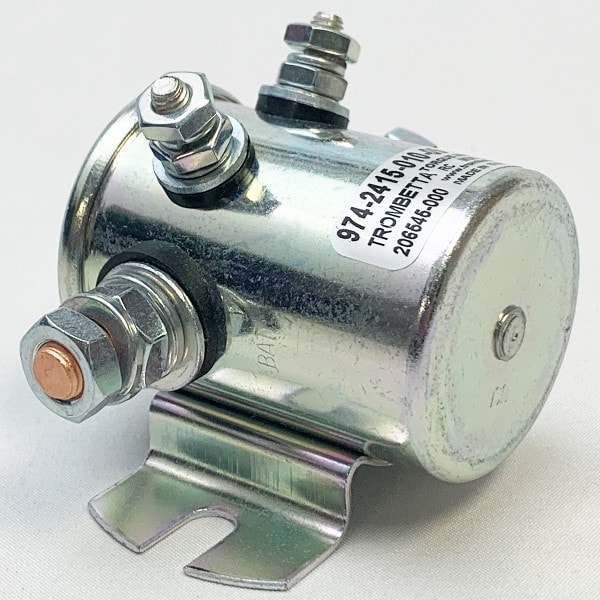

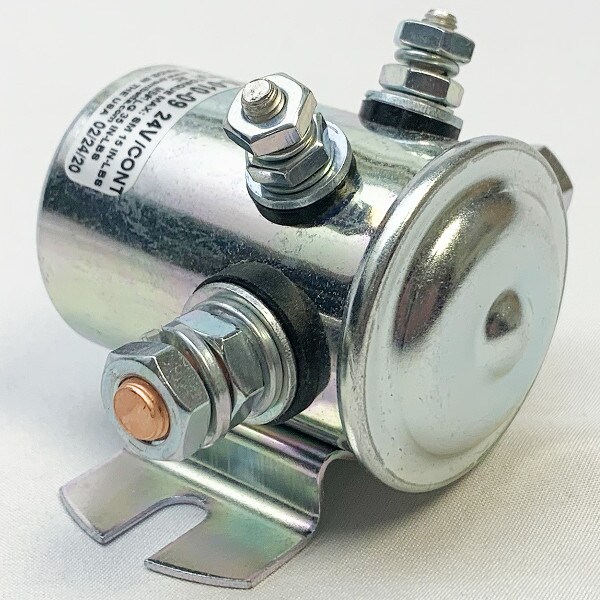

Metal - 24 VDC Contactor; (2) 5/16-24 & (2) non-grounded 10-32 studs; continuous duty; copper contacts; standard slot bracket; with mounting hardware.  (974-2415-010-09)


The Trombetta 974-2415-010-09 Metal DC Contactor utilizes a metal casing which allows for higher application ratings. The strength of this simple workhorse device is its ability to handle high currents, both inrush and interrupt.

Coil Terminals: Non-Grounded, Two (2) 8-32 Studs
Contact Studs: Two (2) 5/16-24 Studs
Duty Cycle: 100% Continuous
Contact Material: Copper
Voltage: 24 Volt
No Additional Sealing
Mounting Hardware Included


Literature:


  1. Sales Bulletin
  2. Dimensional Drawing
  3. Installation Instructions
  4. How To Order This Part



MurCal is an Authorized Distributor of Trombetta products.


MurCal provides application and product support, before and after the sale. Our in-house technical sales representatives have been trained by Trombetta and have the knowledge necessary to answer your questions. When you make an important purchase decision, be sure to consider the company that provides Trombetta's factory authorized sales and service.
