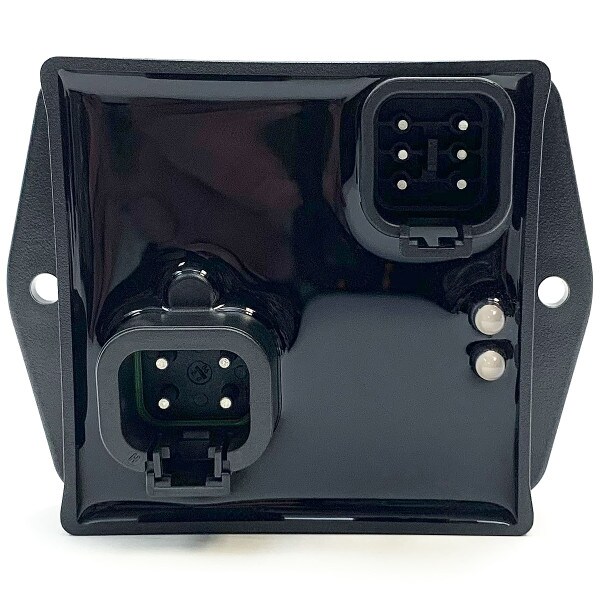

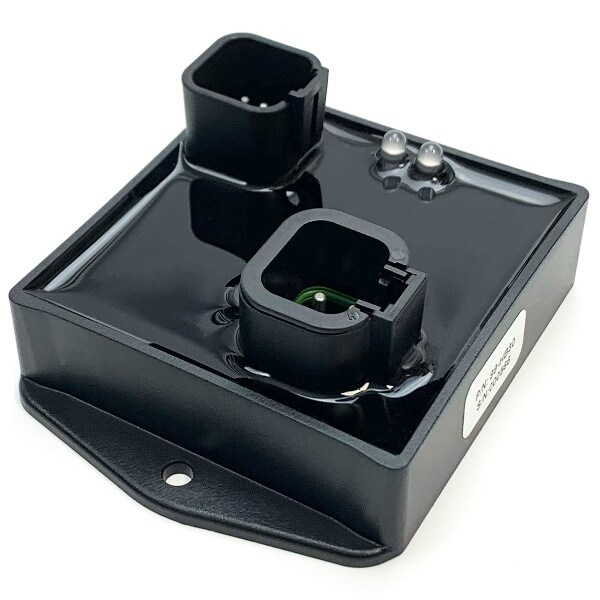

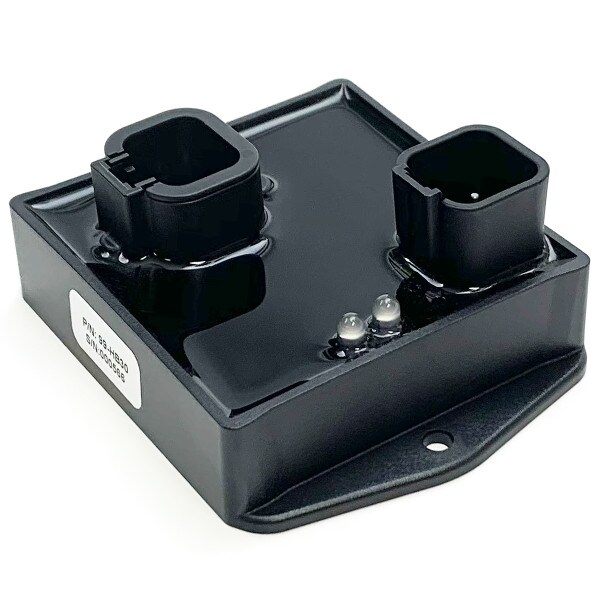

99-0790 “Non-CAN” H-Bridge Module
99-0790 "Non-CAN” H-Bridge Module - Previously: 99-HB30
Trombetta’s “Non-CAN” (Automotive) H-Bridge Module has an operating voltage of 12V to 24V, a (sourcing) continuous output current of 20A, and has built in short circuit and overload protection along with reverse battery and voltage transient protection. This solid state H-Bridge module is designed for harsh duty with an integrated automotive connector interface that delivers superior ingress protection while meeting the functional demands of the mobile equipment market.
Operation:
This device is used to reverse the direction of a load like an actuator, valve, or motor.
• In stopped mode, both outputs are disconnected from battery and ground
• In ‘forward’ mode, output 1 is connected to battery and output 2 is connected to ground
• In ‘reverse’ mode, output 1 is connected to ground and output 2 is connected to battery
• In ‘dynamic high braking’ mode, both outputs are connected to battery.
• In ‘dynamic low braking’ mode, both outputs are connected to ground
Product Features:
• 12V or 24V nominal voltage range
• 20A (sourcing) continuous output current
• PWM range of 5Hz to 5000Hz
• 0.1% duty cycle increments
• IP67 rated
• -40°C to 105°C operating temp. range
• Reverse battery protection
• Short circuit / overload protection
• Voltage transient protection
• Auto baud rate detection 125Kbps – 1Mkbps
• LED output polarity status
• Poka Yoke mounting
