A20PE-OS-300 Pressure Swichgage (05704317)

(0)No Reviews yet
SKU: A20PE-OS-300 (05704317)

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

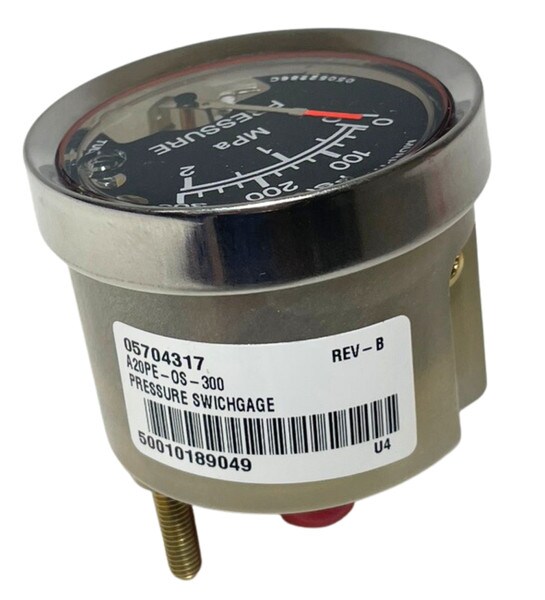

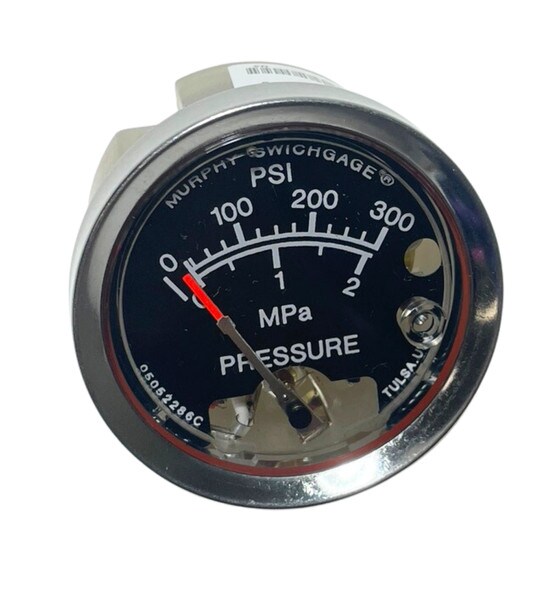

A20PE-OS-300: 2" Pressure Swichgage; internal snap-acting SPDT switch; oil sealed; 0-300 psi (05704317)


The A20 Series (2 inch/51 mm dial) SWICHGAGE® models are diaphragm-actuated, pressure-indicating gages, with built-in electrical switches for tripping alarms and/or shutdown devices.

All models of these rugged, built-to-last instruments are face sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals.

Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.

For series A20P the gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.

Models A20PE have internal snapacting SPDT switches for three wire control; can be wired to make or to break a circuit.

Applications include: engines/equipment in Oil Field, Marine, Irrigation, Construction and Trucking Engines for Lube Oil Pressure, Water Pump Pressure, Hydraulic Pressure, Air Pressure, etc.



  1. Sales Bulletin
  2. Installation Instructions


 MurCal is an Authorized Distributor of Murphy by Enovation products.

MurCal provides experienced application and product support, before and after the sale.


For California customers: Prop 65 WARNING: This product may have been manufactured with or uses components that can expose you to chemicals which are known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
