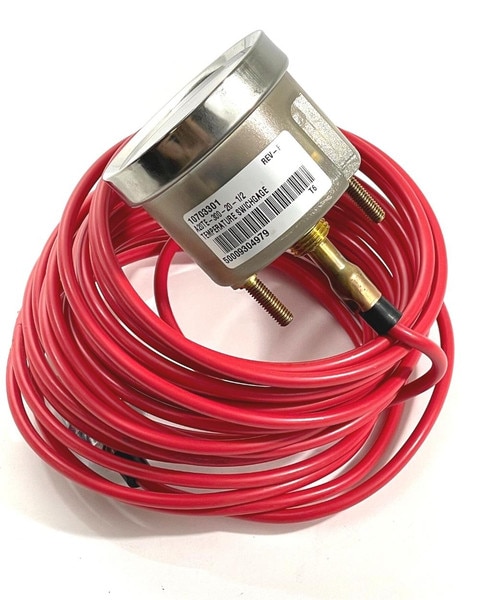

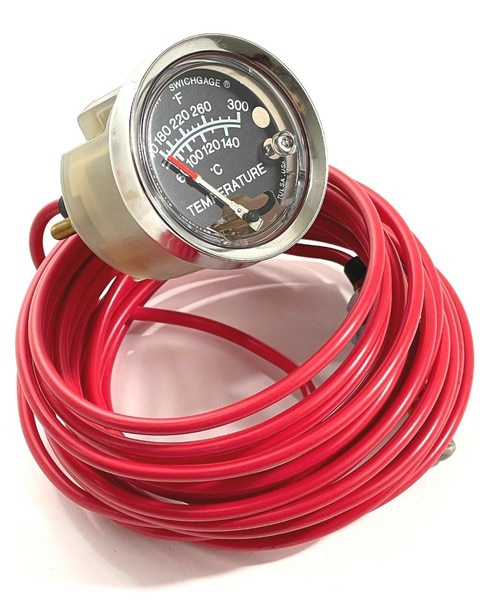

A20TE-300-20-1/2 Temperature Switchgage® (10703301) RATIONALIZED
A20TE-300-20-1/2: 2" Temperature Switchgage®; Polycarbonate Case; Internal snap-switch; 140-300 temp range; 20ft lead (10703301)
The A20 Series (2 inch/51 mm dial) SWICHGAGE® models are diaphragm-actuated, temperature-indicating gages, with built-in electrical switches for tripping alarms and/or shutdown devices.
All models of these rugged, built-to-last instruments are fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel, and O-ring seals. These vapor/pressure actuated gages feature a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against a diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
The gage pointer acts as a temperature indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contact(s) are isolated from ground. They have self-cleaning motion to enhance electrical continuity and have internal snap-acting SPDT switches.
Literature:
