A20TG-250-8-1/2 Temperature Swichgage® (10703250)
A20TG-250-8-1/2: 2" Temperature Swichgage®; 130-250 temp range; 8 ft capillary (10703250)

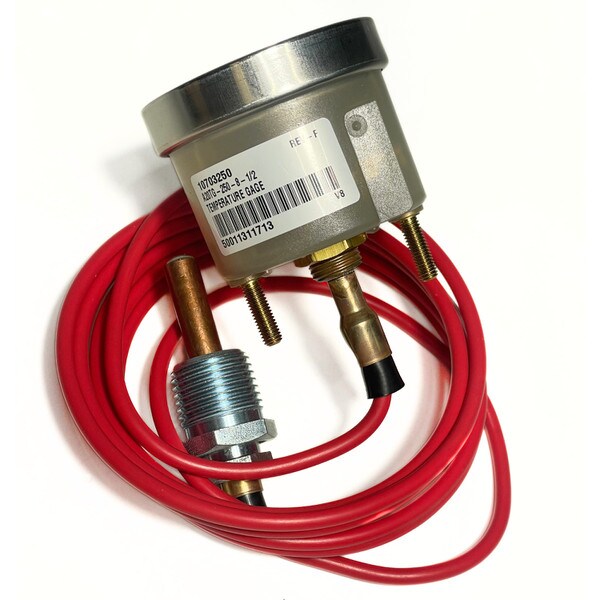

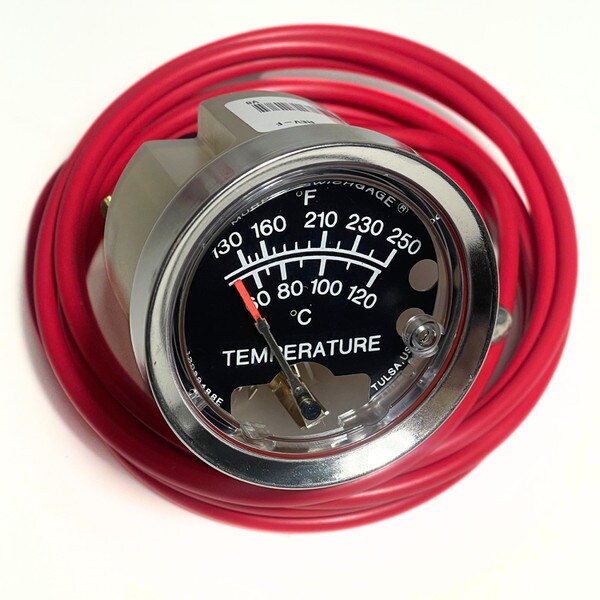

The Mechanical 130-250F Temperature Murphygage 2 in. w/ 8 Ft Capillary and Polycarbonate Case A20TG-250-8-1/2 by Murphy is diaphragm-actuated, temperature-indicating gage without contacts/switch. This rugged, built-to-last instrument is fully sealed from the environment by the unique combination of a polycarbonate case and lens, a polished stainless steel bezel and O-ring seals. This vapor actuated gauge features a sealed capillary tube and a sensing bulb. When subjected to heat, the liquid in the sensing bulb changes to vapor creating pressure against a diaphragm mechanism. The diaphragm translates this vapor pressure into a mechanical gage reading.
Applications for A20 series temperature swichgage instruments include: engines and equipment in oil field, marine, irrigation, construction and trucking industries. Monitoring engine coolant temperature, crankcase oil and transmission oil.
FEATURES:
- 2 inch/51 mm dial
- O-ring Seals
- Polished Stainless Steel Bezel
- Corrosion Resistant Polycarbonate Case
- Indicating Gage
- OS = Oil sealed (Silicone Oil)
- Gage-only model without contacts
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
