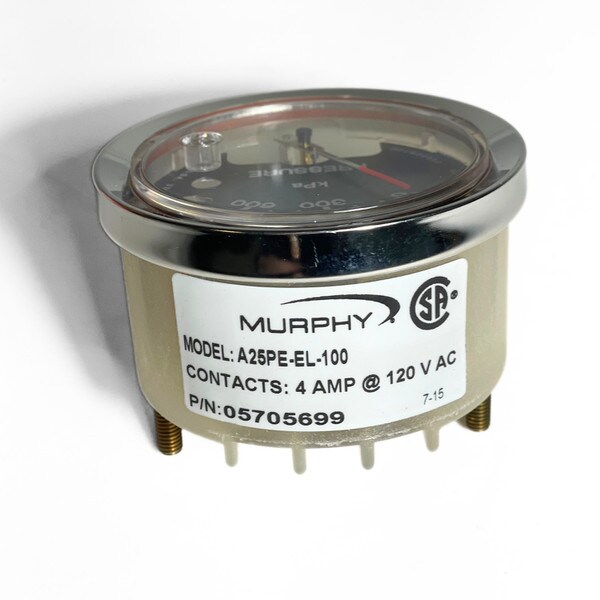

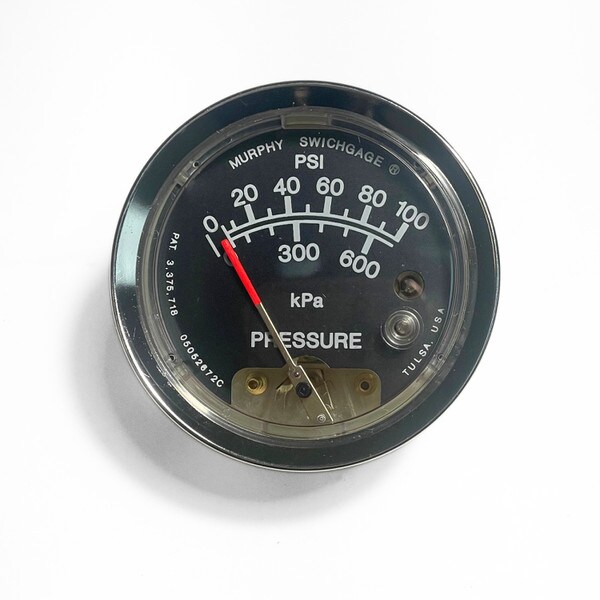

A25PE-EL-100 Pressure Swichgage® (05705699)
A25PE-EL-100: 2.5" Pressure Swichgage®; Internal Snap-acting SPDT switch; Explosion-Proof less case; 0-100 psi (05705699)
The Murphy 0-100 PSI Explosion-Proof Less Case Mechanical Pressure Swichgage 2.5" with Internal Snap-Acting SPDT Switch A25PE-EL-100 is a diaphragm-actuated pressure-indicating gage with built-in electrical switch for tripping alarms and/or shutdown devices. This rugged, built-to-last instrument is face sealed from the environment. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning. The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts have self-cleaning motion to ensure electrical continuity.
The A25PE-EL-100 features internal snap-acting SPDT switch, instead of the single pole/pointer contacts. When the switch closes on falling pressure, it becomes Set, as pressure rises the switch Resets , for three wire control; can be wired to make or to break a circuit.
Applications includes: engines/equipment in Oil Field, Marine, Irrigation, Construction and Trucking Engines for Lube Oil Pressure, Water Pump Pressure, Hydraulic Pressure and Air Pressure.
FEATURES:
- 2-1/2 inch/64 mm Dial
- Indicating Gage and Limit Switch
- Switch Can Activate Alarms and/or Shut Down Equipment
- Contact(s) Isolated From Ground
- Internal Snap-Acting SPDT Switch
- EL = Explosion-Proof Less Case
