AT03069 Murphymatic® Engine Throttle Controller (40700249)

(0)No Reviews yet
$777.49
SKU: AT03069 (40700249)

This item is IN STOCK

Current Stock: 8

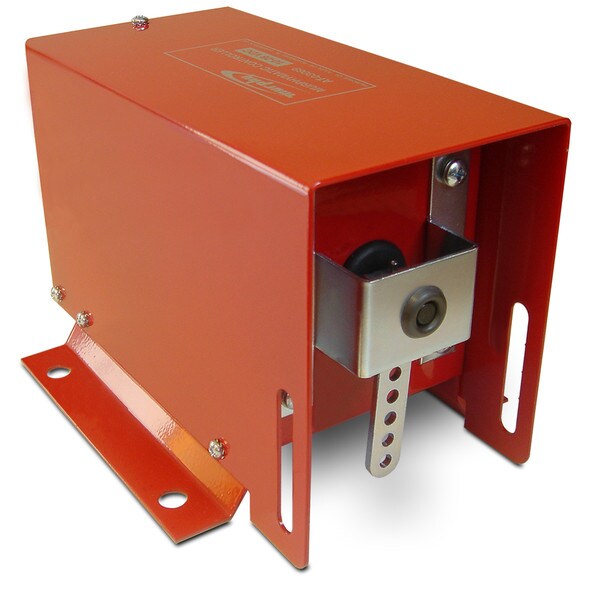

AT03069 Murphymatic® Engine Throttle Controller 12 or 24 VDC. (40700249)


The AT03069 Murphymatic® Engine Throttle Controller is a completely reliable heavy-duty device developed specifically to automatically control engine speed to meet system demand. Low current, high torque, solid state switching, and electronic clutch make it ideal for all automatic and semiautomatic engine systems.
Used with the appropriate Murphy Swichgage®, near constant pressure, level, and load can be maintained.

Common applications include controlling pressure in City water and irrigation systems; controlling level in water or oil storage tanks, sewer disposal systems and flood control basins; controlling temperature in multi engine cooling systems and air conditioning systems; and controlling engine load depending upon external conditions.

Some of the specifications are as follows:
Voltage: 11-28 VDC negative ground.
Maximum Current: 500 mA (1/2 amp).
Torque: 25 inch pounds.
Linkage adjustment on Lever Arm-5 holes: Adjusts travel: 1-3/6" (30 mm); 1-11/16" (43 mm); 2" (51 mm); 2-1/4" (57 mm) approximately. Travel Time: 11 to 20 seconds depending on the voltage and force applied.


Literature:

  1. Sales Bulletin
  2. Installation Instructions


Click the link below to see a much larger image:
Enlarged photo of the AT03069 Engine Throttle Controller
