Ag Implement Flasher Module (24-0010)

(0)No Reviews yet
SKU: Trombetta 24-0010, AG Flasher
For Price & Availability Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Contact Our Sales Team 661-272-4700 or sales@MurCal.com

Ag Implement Flasher Module (24-0010)

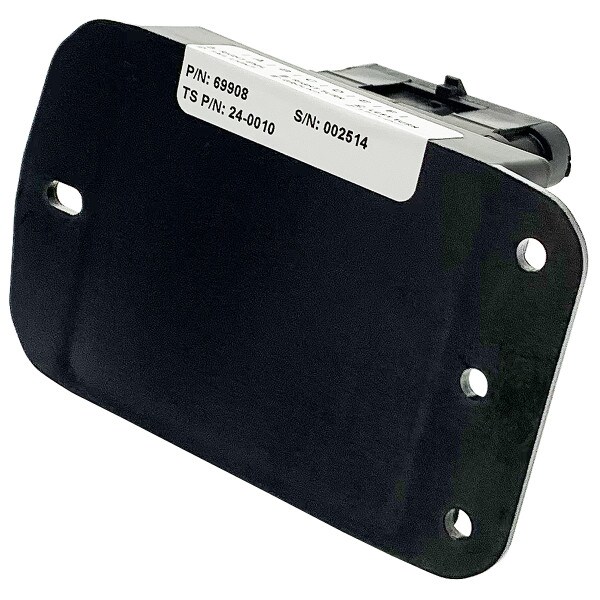

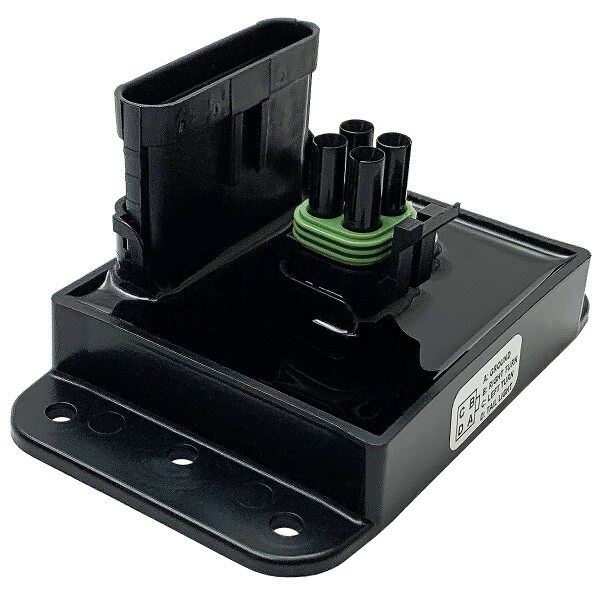

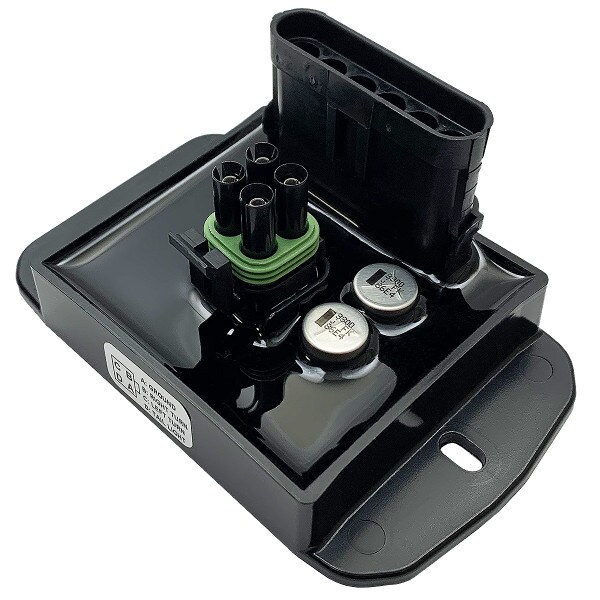

 This enhanced lighting module features integrated automotive connectors to provide a cost effective and heavy duty solution to meet the ASAE standard for Ag lighting.

This module takes the right / left turn and flasher signals, as well as tail lights signal from the tractor and drives the lights on the implement (the tractor outputs are not made to be able to drive the lights on the implement). The connection diagram is pretty self-explanatory, there is not a lot to this module.

Note: This flasher module does not include the mate connectors or wire harnesses.




Product Features:

•  Works with 12V or 24V Systems
•  No Wires
•  Up to 10.0A per Output
•  Small Footprint
•  Potted – Protection from Harsh Environments
•  Sealed Automotive Connectors
•  Easy 2 Point Mounting / Rugged ABS Housing
•  RoHS Compliant
•  Customizable
•  For Use with Incandescent or LED

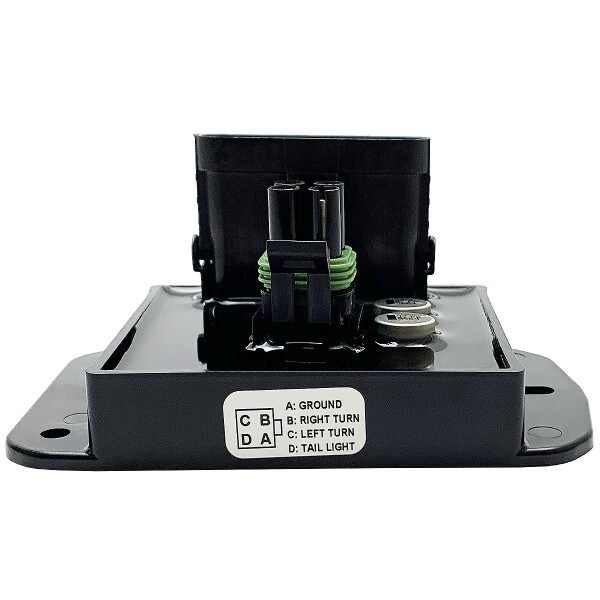

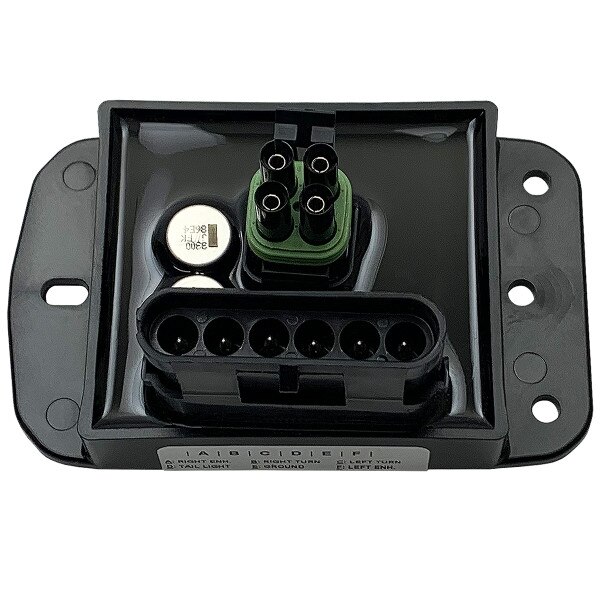

Unit Connections:


12015798 DELPHI
Pin A: Ground from tractor
Pin B: Right turn input from tractor
Pin C: Left turn input from tractor
Pin D: Tail light input from tractor

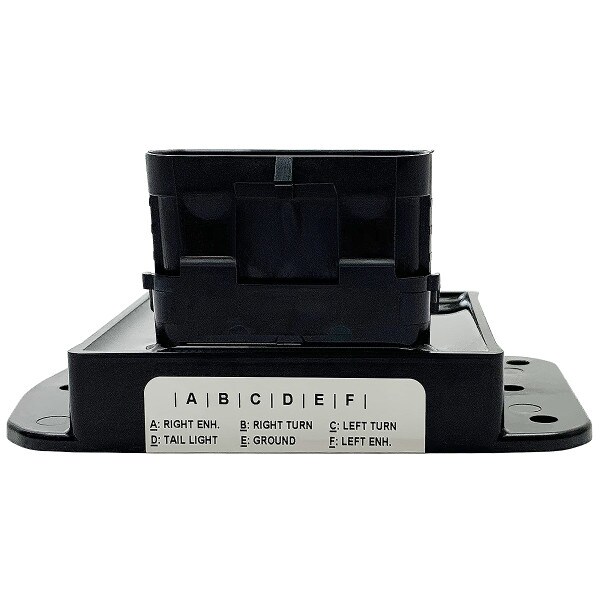

12010975 DELPHI
Pin A: Right turn enhanced output
Pin B: Right turn and flasher output
Pin C: Left turn and flasher output
Pin D: Tail light output
Pin E: Ground
Pin F: Left turn enhanced output



Literature:

  1. Sales Bulletin
  2. Wiring Diagram
  3. Test Procedure
