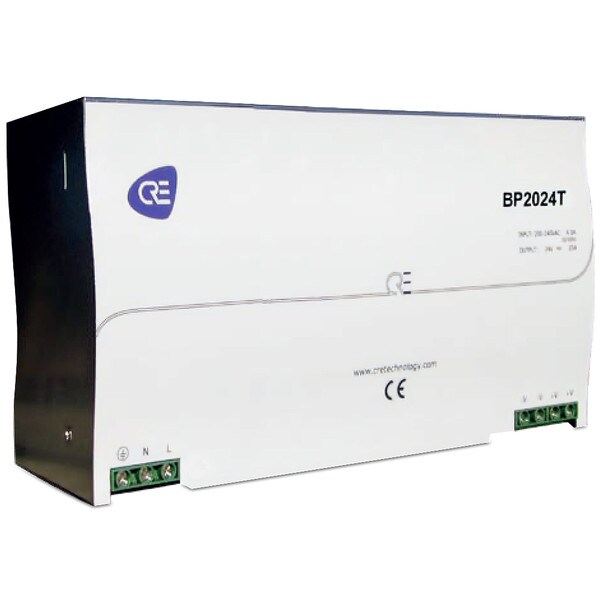

BP Range Battery Charger; 24V; 20A; 3 phases (BP2024T)
BP Range Battery Charger; 24V; 20A; 3 phases (BP2024T)
Classic, Heavy Duty & Reliable
CRE’s 24 Volt BP2024T battery charger offers a range of input voltages from 340 to 550VAC (three phase). This model is rated at 24V of DC voltage with a rated current of 20A and a current range of 0 - 20A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomic design and din rail support allow you to easily integrate it into your plant.
Rated power is 480W with a maximum ripple & noise of 80mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 10.86” (276mm) W x 4.93” (125.2mm) H x 3.94” (100mm) D.
Features:
- Battery Charger (optimized size) 24VDC - 20A Three-phase,
- Voltage input: 340 to 550VAC
- Rail DIN mounting,
- Fixed switching frequency at 55kHz
- NEW: Fault relay output
- 3 years warranty.
Protections:
- Short circuit,
- Overload,
- Overvoltage and over temperature
Literature
- Battery Chargers Sales Bulletin
- BP Series Product Specifications
- BP Battery Chargers Technical Documentation
MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
