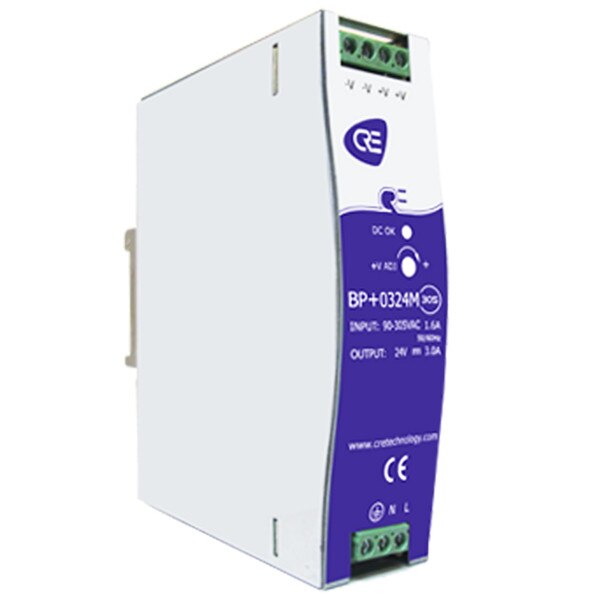

BP+305 Range Battery Charger; 24V; 2.5A (BP+0324M-305)
BP+305 Range Battery Charger; 24V; 2.5A (BP+0324M-305) Diode Integrated
CRE’s 24 Volt BP+ 305 Range battery charger offers a range of input voltages in monophase. This model is rated at 24V of DC voltage with a rated current of 2.5A and a current range of 0 - 2.5A.
Rated power is 75W with a maximum ripple & noise of 120mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.26” (32mm) W x 4.93” (125.2mm) H x 4.0” (102mm) D.
Features
• Battery Charger (optimized size) 24VDC - 2.5A single phase
• Voltage input: 90 to 305VAC
• Rail DIN mounting
• Switching frequency architecture
Protections
• Short circuit
• Overload
• Over-voltage and over-temperature
• Diode integrated
• 3-year warranty
Literature
- Battery Chargers Sales Bulletin
- BP+305 Series Specifications
- BP Battery Chargers Technical Documentation
MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
