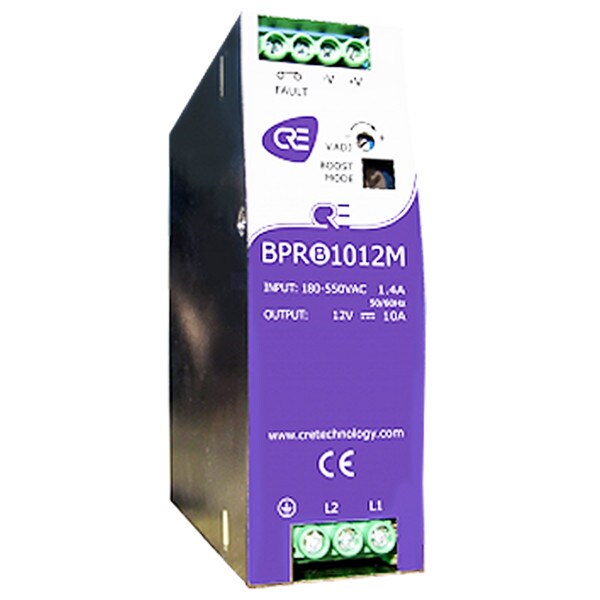

BPRB Boost Mode Range Battery Charger; 12V; 10A (BPRB1012M)
BPRB Boost Mode Range Battery Charger; 12V; 10A (BPRB1012M)
Secure and Reliable, with Safety Relay & Boost Mode
CRE’s 12 Volt BPRB1012M battery charger offers a range of input voltages from 180 to 550VAC. This model is rated at 12V of DC voltage with a rated current of 10A and a current range of 0 - 10A. It integrates a permanent short-circuit protection that accepts the electrical starters inrush current without damage. The ergonomically compact design and din rail support allow you to easily integrate it into your plant.
Rated power is 120W with a maximum ripple & noise of 300mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.58” (40mm) W x 4.93” (125.2mm) H x 4.47” (113.5mm) D. The design includes a Fail Output Relay, and a Boost Mode Input.
CRE is so confident in the quality and reliability of its battery chargers that we offer you a 3-year warranty for each product purchased. Thanks to a heavy-duty case and its free air convection cooling device, CRE battery chargers can operate in extreme temperature situations (between -20°C and +70°C).
Features
- Protections: short circuit, overload, over-voltage, over-temperature
- Battery charger with fault output relay, 12V 10A
- Boost mode input feature
- Single phase
- Cooling by free air convection
- Switching frequency architecture
- 100% full load burn-in test
- Rail DIN mounting: TS-35/7.5 or TS-35/15
- 3-year warranty
Literature
- Battery Chargers Sales Bulletin
- BPRB Series Product Specifications
- BP Battery Chargers Technical Documentation
- Case Study: Off-Power Generation Engine Application
- Case Study: Mega Power Plant Application
