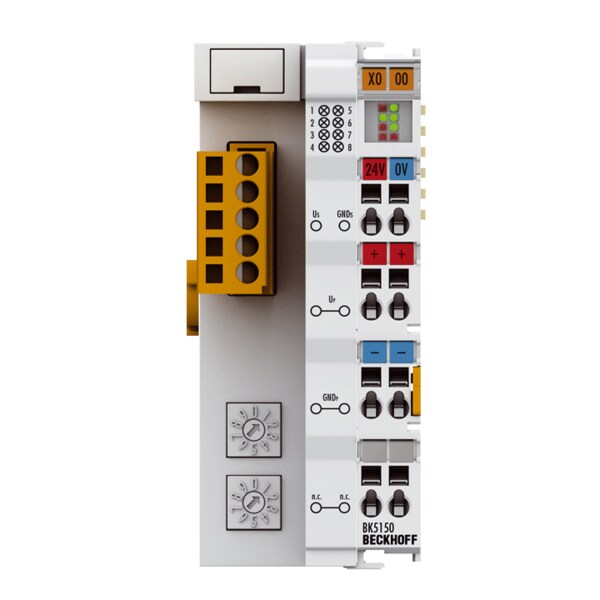

Beckhoff CANopen Compact Bus Coupler (BK5150)

Beckhoff CANopen Compact Bus Coupler for up to 64 Bus Terminals255 with K-bus extension (BK5150)

The Compact Bus Coupler (BK5150) for CANopen extends the Beckhoff Bus Terminal system by a cost-optimized version in a compact housing.

Up to 64 Bus Terminals are supported; with the terminal bus extension, up to 255 Bus Terminals can be connected.
The CANopen Bus Coupler offers automatic baud rate detection up to 1 Mbaud and two address selection switches for address assignment.
A 5-pin connector for the fieldbus connection is included in the scope of supply.
Optionally, the ZS1052-3000 connector with integrated terminating resistor can be connected.
