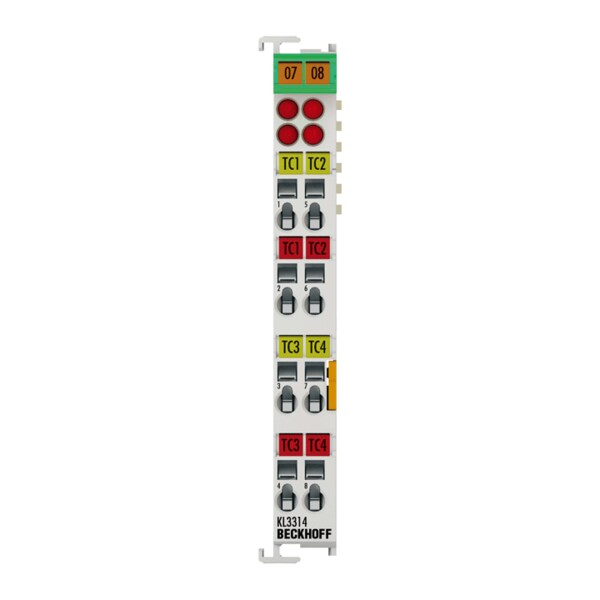

Beckhoff Bus Terminal, 4-channel analog input, temperature, thermocouple, 16 bit (KL3314)

Beckhoff KL3314 | Bus Terminal, 4-channel analog input, temperature, thermocouple, 16 bit

The KL3314 analog input terminal allows four thermocouples to be connected directly. The Bus Terminal’s circuitry can operate thermocouple sensors using the 2-wire technique. Linearization over the full temperature range, which can be selected freely, is realized with the aid of a microprocessor. The error LEDs indicate a broken wire. Compensation for the cold junction is made through an internal temperature measurement at the terminals. The KL3314 can also be used for mV measurement.
