CANdrive™ CDV100F w/ CDV-PW-30 Harness (78700363): Electric Gage Interface
CDV100F w/ CDV-PW-30 Harness (78700363)
As part of the MurphyLink family, the CANdrive CDV100F is an Electric Gage Interface for modern electronic engines. The CANdrive acts as an interface between ECU CANbus/J1939 transmitted data and standard electric indicating gages.
CANdrive and electric gages are an alternative solution to retrofitting of engine senders, magnetic pickups and associated wiring.
CANdrive has dedicated outputs for a tachometer, oil pressure and coolant temperature electric gages. Configurable switches allow for selectivity between 12 or 24 VDC systems, and for all gage outputs to be selected as either Murphy, VDO or Datcon.
CANdrive is packaged in a compact, surface mounted case with epoxy encapsulation for maximum durability and environmental sealing.
Electrical connection is via a 12-way automotive-type connector.

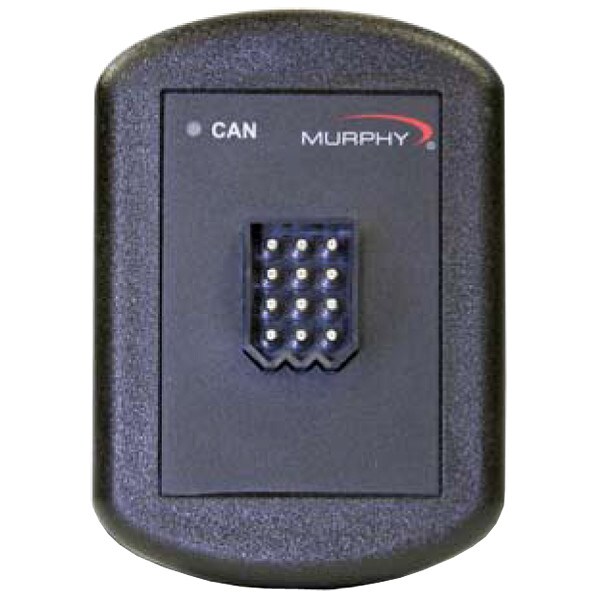

The CDV100F is a 1x CAN status LED with the connector positioned forward.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
