CRE - BTB COMPACT CORE Version with DIN Rail kit (A56-BTB-10)

CRE - BTB COMPACT CORE Version with DIN Rail kit (A56-BTB-10)


The BTB COMPACT is one controller of a complete range for Energy sources and power plant management: Generators, Mains, Photovoltaic, Batteries storage, Tie breakers.

This controller is made to manage bus tie-breaker applications up to 32 bus tiebreakers.
It operates in combination with GENSYS COMPACT PRIME (for generators) and MASTER COMPACT/MASTER COMPACT 1B (for mains) modules. It offers flexibility and time saving thanks to its simple wiring and easy programming.


Hardware & Display

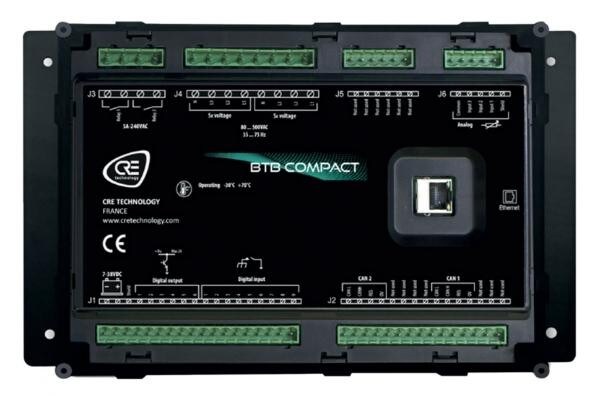

This BTB COMPACT is the core base mounted version and is compatible with i4Gen touchscreen color display.


Software

The BTB COMPACT is configurable from its front panel display, from i4Gen remote touchscreen, or through the free i4Gen Suite software.

 Control and Management

• Compatible with 3 or 4 wires three-phase, or two-phase or single-phase systems.
• 32 modules BTB COMPACT and MASTER COMPACT + 32 modules GENSYS COMPACT PRIME limited to 40 modules in total could be used together on the same application.
• The complete power plant is divided in segments. A segment is a group of MASTER COMPACT and GENSYS COMPACT PRIME module which will always communicate each other.
• 9 x Digital inputs: NO or NC to ground, 3 x Analog inputs: Resistive (0...500Ω) or 0...20mA, 6 x Digital outputs: NE or ND. 1.8A.
• 31 calibration points for analogue inputs (resistive or 0-20 mA).
• Expansion via CANopen: 32 x Digital inputs, 16 x Analog inputs, 32 x Digital outputs.
• 2 x Relay outputs (breaker control): 5A, 240VAC.
• Electrical parameters acquisition from wiring (PT) and from CANbus (KW, KVAR) of GENSYS COMPACT PRIME and MASTER COMPACT.
• Synchronization: Frequency, Phase and Voltage synchronization from Source A to Source B or from Source B to Source A (Synchro scope display available on screen). Synch check (ANSI 25) + Phase sequence protection. Phase shift between 0 and 360 degrees could be added on the synch check relay function (for example to compensate DYN11 MT/BT transformers).
• Adjustable KW ramp and KVAR ramp after synchronization. The 2 ramps are independents and allow managing properly the active and reactive power equalization if KW/KVAR ratio are different on source A and source B before tie-breaker closure.
• Optimized frequency/KW and Voltage/KVAR regulation which does not require PID adjustment in the BTB COMPACT (except for the phase synchronization). The PID control is managed by each generator with GENSYS COMPACT PRIME.
• Automatic detection of mains paralleling on source A or source B. Synchronization from mains to generators will be detected and not allowed. Only synchronization from generators to generators and from generators to mains will be allowed.
• Record of 500 events/alarms/faults with timestamps. Displayed on controller screen and i4Gen with advanced filter.
• 1350 logged events with timestamp and real-time value available, non-volatile memory. Available on uploaded file.
• Alternative selection, Drag and Drop system: 16 parameters can switch between 2 values.
• Scheduler: daily, weekly, monthly. 10 configurable events.
• Easyflex®, Drag and Drop system: 50 programming lines.--New Debug mode displaying in real time the status or value of all variables in the programming lines.
• Easy connect: This function permit to quickly switch the connection between controllers.
  • Automatically detects CRE TECHNOLOGY controllers on an Ethernet network.
  • It allows to automatically configure CRE TECHNOLOGY controllers IP address to be able to access them with the current network configuration.
• Circuit breakers management:
  • The breakers positions feedback could be connected or not.
  • Adjustable pulses or latched contact for breaker closing.
  • Adjustable pulses or latched contact for breaker opening.
  • MN/MX coil management.
  • Alarm management for closing failure, opening failure, unexpected closure, unexpected opening.
• New Modbus TCP Slave/Master Communication Port.
  • Modbus TCP Slave: All data are accessible by ModBus TCP locally or remotely (web, GPRS).
  • New Modbus TCP Master: possibility to create and configure customized frames.
• 3 isolated com ports are available:
• • 1 CANbus: J1939 electronic engine and I/O extensions.
  • 1 CANbus CRE protocol for communication between all COMPACT controllers.
  • Ethernet: PC communication/ModBus TCP.
• Remote Supervision with color touch screen i4Gen. (7, 10 or 15 inches)
  • Internet connection: Wan port or Wi-Fi hotspot or 4G modem or Smartphone Access point.
  • Visualization - configuration - programming - remote power plant control.
  • Up to 10,000 power plant with a single Zoho Assist account (Zoho Assist PC, MAC, Smartphone application).
  • Use of the Zoho Assist app (PC, MAC, Smartphone).
  • 1 single I4Gen can monitor the entire power plant.
  • New Monitoring and control of the complete power plant (generators, mains, photovoltaic, batteries storage) through a single line diagram generated automatically.
  • Sending emails to events.
• Electrical and mechanical protections.
• Automatic management of CANbus inhibitions according with tiebreaker closed or opened.
• 3 password levels: end user, technician, advanced technician.
• Languages: English, French, Italian, Spanish in standard. Portuguese, Russian, German and other custom languages are available on request.
• Automatic clock synchronization by CANbus.
• Automatic firmware update: When module is connected to i4Gen Suite PC software, you will automatically be asked for a firmware update to the latest version if applicable.
