The C2S is a Synchronization and Safety column for the control of the coupling of two AC sources.
This second-generation microprocessor module integrates all the visualization and control functions for the manual coupling of a generator to a busbar:- Display of phase, frequency and voltage deviations
- Coupling authorization safety relay controlling these three parameters and signaling of the logic states of the controlled installation.

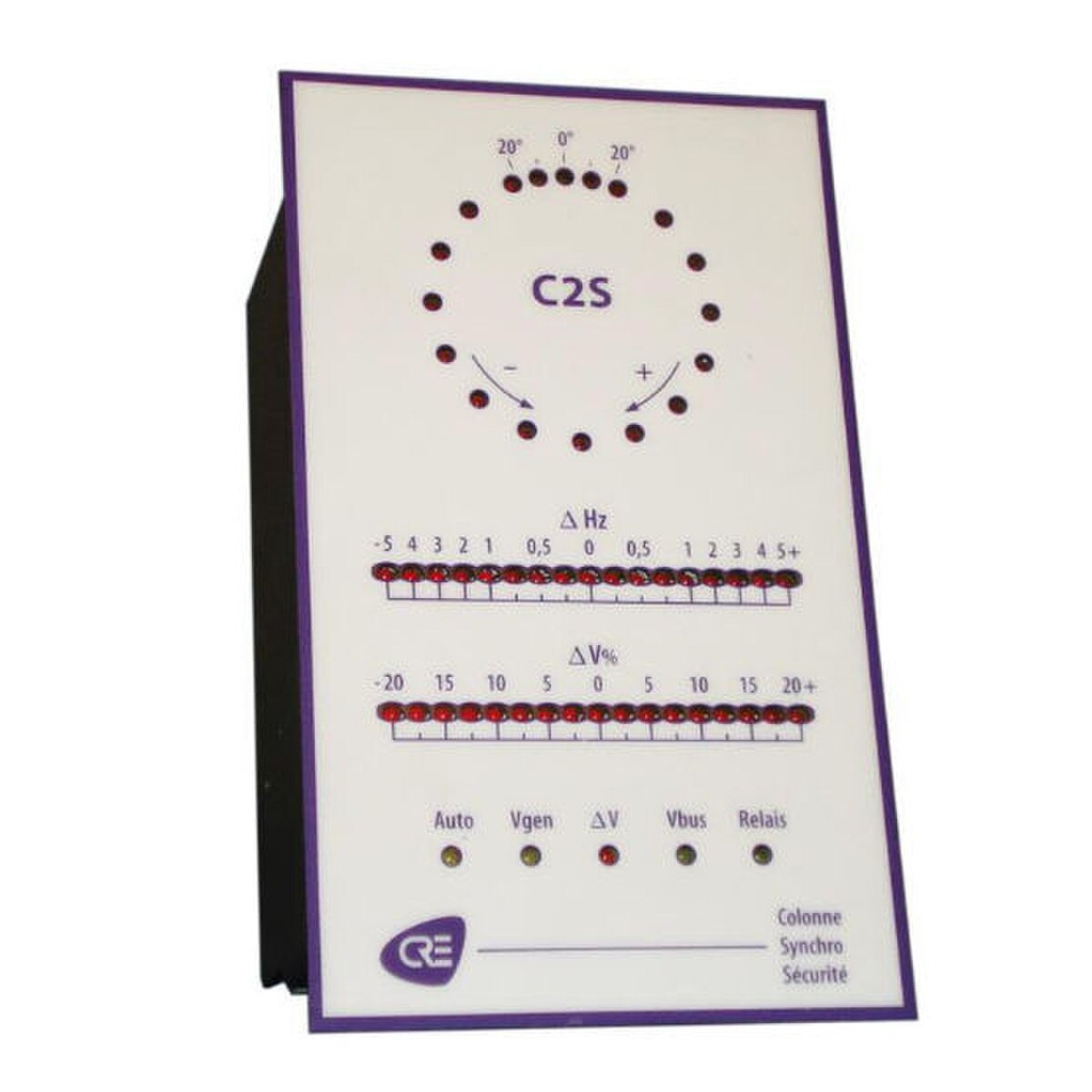

SYNCHRONIZATION COLUMN
- Led synchroscope:
18 LEDs spread over 360° display the phase difference. The synchroscope lines up when the frequency difference is less than 0.5 Hz. - Differential frequency meter:
The frequency difference is displayed by a 17 LED bar graph corresponding to ± 5 Hz with an expanded scale over 1 Hz. - Differential voltmeter:
The voltage difference is displayed by a 17 LED bar graph corresponding to ± 20%.
SAFETY RELAY
- The coupling authorization relay monitors the difference in frequency, voltage and phase. It authorizes coupling only when all the parameters meet the requirements of the installation.
- Frequency difference:
Coupling authorization is given for a frequency difference of less than 0.1 Hz. - Phase difference:
The phase difference which authorizes coupling is adjustable between ± 5° and ± 20°. - Voltage difference: The voltage difference which authorizes coupling is adjustable between ± 2.5% and ± 20%.
