CRE - GENSYS 2.0 MARINE CORE Version (A53Z4)

CRE - GENSYS 2.0 MARINE CORE Version (A53Z4)

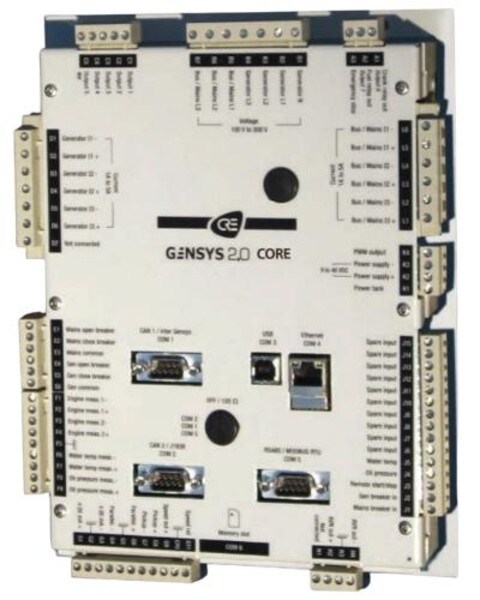

The GENSYS 2.0 CORE MARINE is an easy-to-use rear-mounted, control and paralleling module which can synchronize up to 32 generators.

GENSYS 2.0 CORE MARINE is configured with CRE Config software or via its embedded Web site.



PROGRAMMING BY EQUATIONS:

The GENSYS 2.0 CORE MARINE module is a real PLC unit where equations and sequences can be programmed directly by the user with an Easy PLC software or a simple text editor software.



INPUTS/OUTPUTS EXTENSION:

The number of inputs/outputs that can be added is one of the most important on the market. Extension modules (DIN rail mounting) can be added on the CAN bus. This extends a large number and a large diversity of inputs/outputs up to 128 digital inputs, 64 digital outputs, 44 analog inputs, 32 analog outputs and CANopen standard module.



MINIMUM OPTIONS:

The GENSYS 2.0 CORE MARINE is offered full features with a minimum of options to fit all types of application without expensive add-on packages.

For specific needs, the following options are available:

• Phase shift compensation (ie: Dyn11)



INTER-UNIT ISOLATED CAN BUS:

The GENSYS 2.0 CORE MARINE features an isolated CAN bus dedicated to inter-module communication (dead busbar management, static paralleling, kW and kVAR load sharing...).

CAN bus technology provides high reliability communication while maintaining low wiring cost and complexity.

Literature:
