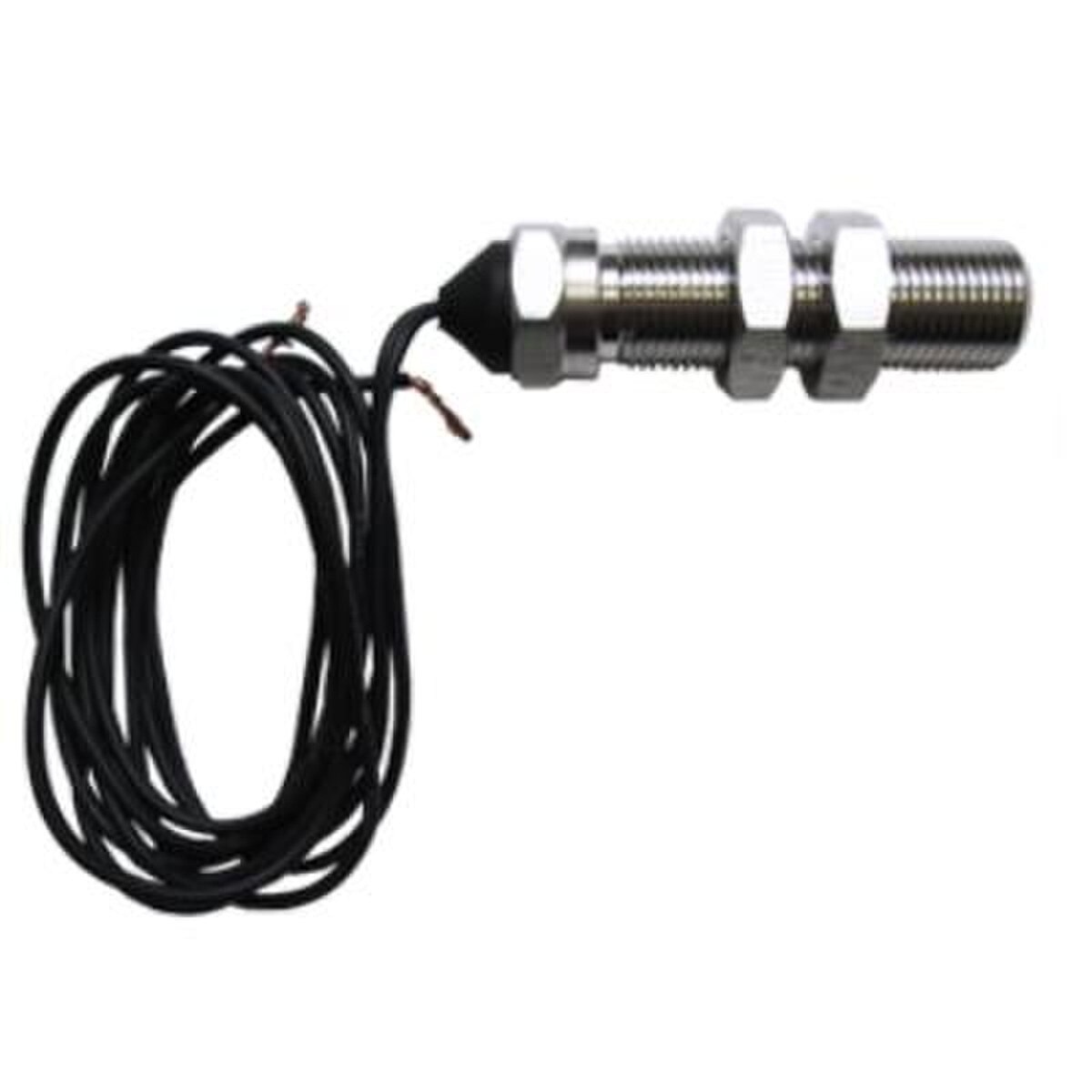

CRE - Magnetic Pick-Up (CO3/4-70W) with SAE thread (3/8-24 UNF) with SAE thread (3/4-16 UNF)

(0) No Reviews yet
$103.99
SKU: CRE - Magnetic Pick-Up (CO3/4-70W)

This item is IN STOCK

Current Stock: 10

CRE - Magnetic Pick-Up (CO3/4-70W) with SAE thread (3/8-24 UNF) with SAE thread (3/4-16 UNF)



The magnetic pick-up (MPU) is the communication link between the engine and the electronic controller. The MPU is installed next to the drive shaft gear made of a material which reacts to a magnetic field. As the flywheel rotates it interrupts the MPU’s magnetic field and produces an AC signal corresponding to the engine speed.


Characteristics:

  • MPU 3/4 16 UNF
  • Insert length 60mm
  • Cable output
  • 2 nuts



Larger Image: CO3/8-60W Magnetic Pick-up


Literature


Magnetic Pickup Sales Bulletin
