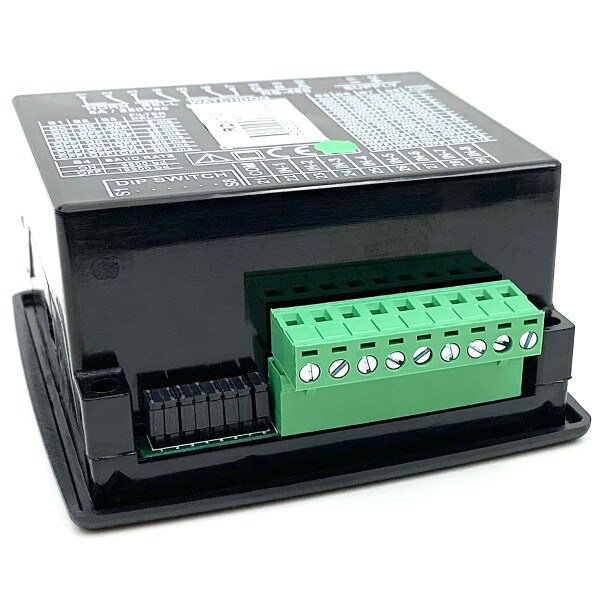

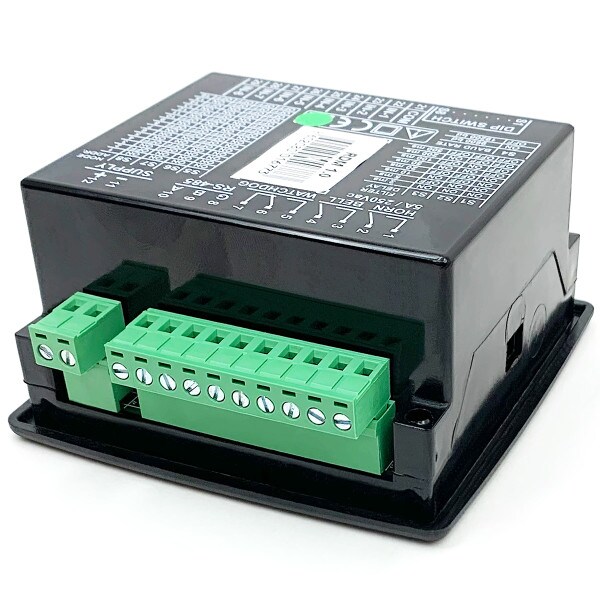

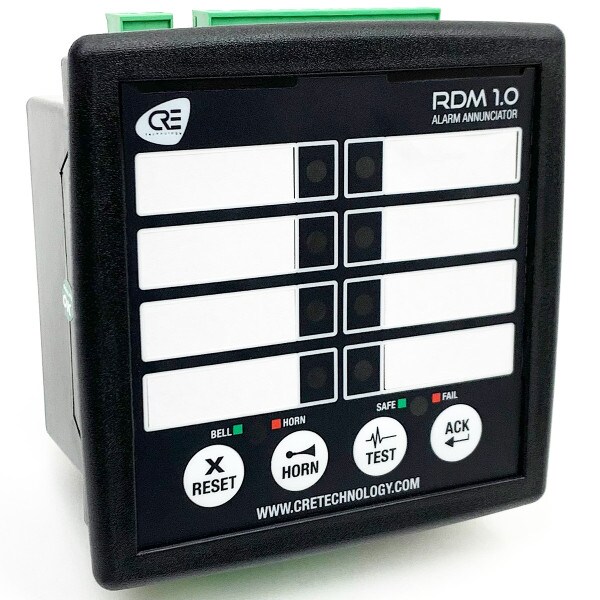

CRE - RDM 1.0 Alarm Annunciator (A60P0)
CRE - RDM 1.0 Alarm Annunciator (A60P0)
The RDM 1.0 is a new, robust and easy to use alarm annunciator suitable for industrial generators applications. The RDM 1.0 is 8 channels, 96x96mm module.
This product offers the following advantages:

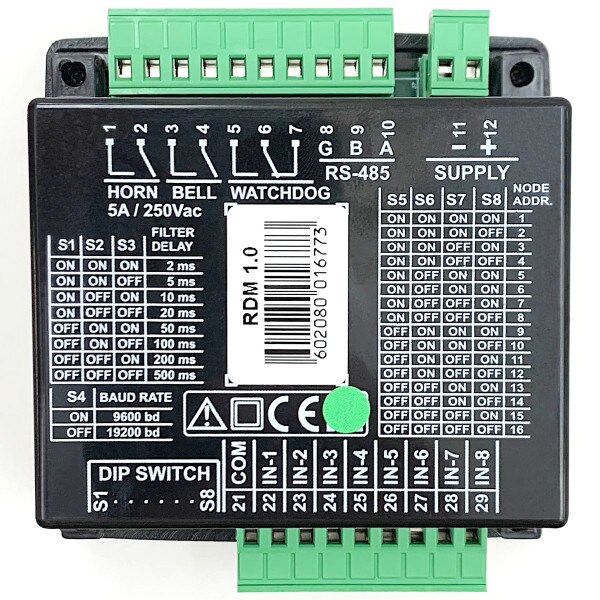

- Front face and dip switch configuration (no computers needed)
- Power supply from 19-150VDC
- 8 digital fault inputs (opto-isolated)
- Filter delays of input can be set (from 2ms to 500ms),
- Watchdog function (led and digital output information)
- Leds color set-up (green or red), to differentiate alarms priorities and to activate 2 different outputs
- Internal buzzer 80dB
- ModBus RTU-RS485
- A tool provided to print alarms names’ tags
- Ideal to meet the NFE 37-312 standard
Literature:
Sales Bulletin
MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
