CRE - i4Gen Range 15" HMI Color Touchscreen (A56V0-15-00)

CRE - i4Gen Range 15" HMI Color Touchscreen (A56V0-15-00)

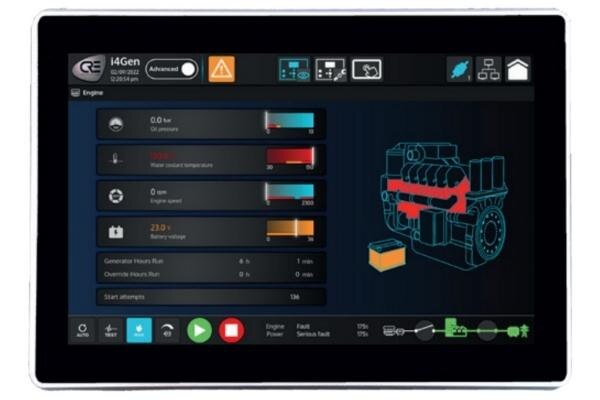

i4Gen.15" is a customer interface made by CRE to offer users a complete monitoring of new CRE controllers. The unit hardware is a multi-touch screen color display developed for harsh environment and industrial areas, providing access to all controller’s data for control and measurement.

With our advanced touch screen panel, it is possible to manage remote control and monitoring, through an internet access (Wi-Fi-LAN connection), with ZOHO Assist platform, and to use e-mail services, for alarms/faults management.



FEATURES & SPECIFICATIONS

Direct display
The i4Gen is able to display information from 1 to 32 controllers using the Ethernet connection and shows a basic overview of the power plant by using controller CANbus data when applicable.

New: Single line diagram & SCADA
The i4Gen now offers you the display of the single line diagram of your complete power plant, as well as the production curves of each source. It allows monitoring and global control just with settings of the controllers.

Easy Connect
This function permit to quickly switch the connection between controllers. Automatically detects CRE TECHNOLOGY controllers on an Ethernet network. It allows to automatically configure CRE TECHNOLOGY controllers IP address to be able to access them with the current network configuration.

Multiuser display
Several i4Gen can be securely connected by an Ethernet hub to a single controller (or a group of controllers). An i4Gen display has two Ethernet communication ports. Easy to use for redundancy application multi-level access or long-distance monitoring panel. One i4Gen display can also be connected to different and several COMPACT platforms.

Internet connection
With WIFI connection, or LAN cable connexion, the i4Gen can be easily connected on internet, to manage remote monitoring or remote control, and emails management.

Events display/recorded
An innovative feature will turn major events into 3D graphical object display, to warn the operator about an important event and to facilitate immediate diagnosis (ex: coolant tank will light up in red in case of coolant temp fault or in orange in case of coolant temp alarm). An event recorder is also available on a dedicated display page, indicating time stamp, status, acknowledgment and corresponding variable.

Literature:

Sales Bulletin


MurCal is an Authorized Distributor of CRE Technology products.
MurCal provides experienced application and product support, before and after the sale.
