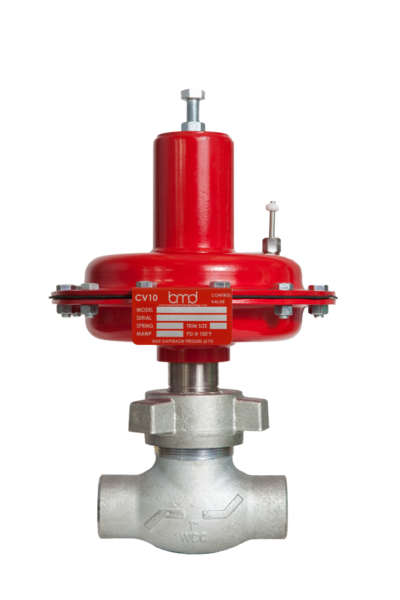

CV10, 1" Globe Body, RFF, Reverse, 9" Actuator, 6-30 PSI, NACE, 1/2" Trim (CV10-1F30R36-NV-4R)

bmd - CV10 Series Dump Valve, 1 Globe Body, RFF 300, #35 Reverse Act, 6-30 Spring, Carbon Steel NACE with Viton Seals, 1/2 Quick Open Carbide Trim (CV10-1F30R36-NV-4R)

The CV10 From BMD Is a Close-Coupled Control Valve Suited for Pressure Control, Level Control and Flow Control.


Features:

• Close-coupled control valve
• Strongly suited for pressure control, level control and flow control
• Used on separators, scrubbers, wellheads and other production equipment
• Hammer union allows the topworks to be removed without taking the valve out of line for easy repair and trim replacement
• Cage-guided design improves seat alignment and longevity

Literature:

1. Sales Bulletin
2. Installation Instructions
