CV10, 1" Tee Body, NPT, Reverse, 9" Actuator, 3-15 PSI, NACE, 1" Trim (CV10-3N50R33-NV-8R)

bmd - CV10 Series Dump Valve, 1 Tee Body, Threaded Ends, Reverse Act #35, 3-15 Spring, Carbon Stee NACE with Viton Seals, 1 Quick Open Tungsten Carbide Trim (CV10-3N50R33-NV-8R)

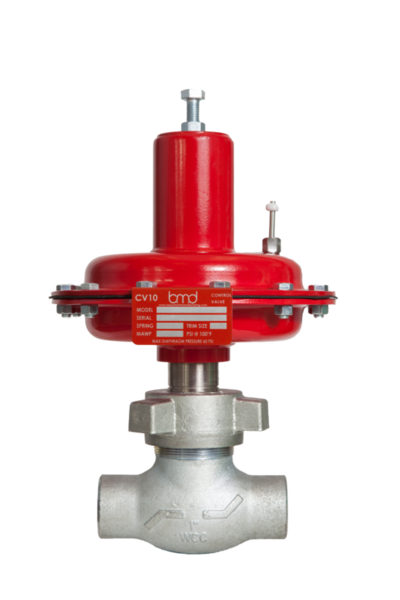

The CV10 is a cage-guided close-coupled control valve also known as dump valves. They are ideally suited for a wide range of applications such as pressure control, level control and flow control. Typical installations include separators, scrubbers, wellheads and other production equipment. Its cage-guided design improves seat alignment and longevity.

Features:


• The hammer union makes maintenance easy.
• The valves are available in a variety of material options and different trim sizes.
• High-flow closed-coupled option available.
• A NACE option is also available for sour service.

The hammer union makes maintenance easy by allowing the topworks to be removed without taking the valve out of line. This feature reduces the amount of time needed to inspect and replace the valve trim.

Literature:

1. Sales Bulletin
2. Installation Instructions
