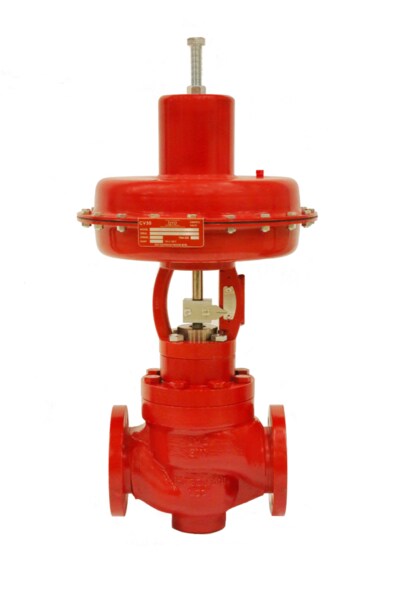

CV30, 3" Globe Body, RFF, #120 Actuator, Direct, 3-15 PSI, D2/Poly Trim (CV30-3F60D23-1CB-1F)
bmd - CV30 Series Control Valve, 3 Globe Body, 600 RFF, #120 Direct Act, 3-15 Spring, Service, Carbon Steel Body, Buna Seals, D2/Polyurethane Trim, Full Port (CV30-3F60D23-1CB-1F)
HIGH-PRESSURE, FULL PORT, CONTROL VALVE
The CV30 control valve is a reliable, full-port control valve in a compact package featuring balanced plug control trim for excellent throttling or on/off control of fluids.
The adjustable topworks is designed to save space while leaving enough room to mount a controller. The soft-seat design achieves repeatable bubble-tight shutoff while remaining out of the flow path. The CV30 is ideally suited for a wide range of applications with pressure control, level control or flow control.
Literature:
MurCal is an Authorized Distributor of BMD products.
MurCal provides experienced application and product support, before and after the sale.
