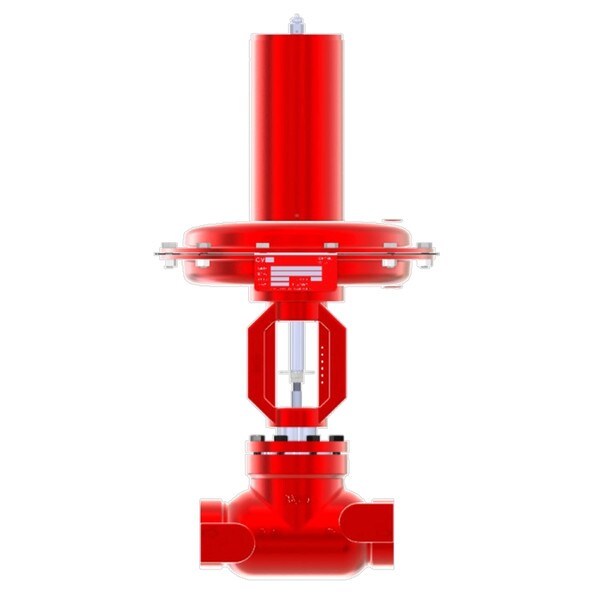

CV41U, 2" Globe Body, RFF-150, #70 Reverse Actuator, 3-15 PSI, 1" Port (CV41U-2FGR73-M8)
bmd - CV41U Series Control Valve, 2-150 Globe Body, Flanged Ends, #70 Reverse Actuator, 3-15 Spring, Metal Seat, 1.00 Port (CV41U-2FGR73-M8)
The CV41 open-yoke control valve is a low pressure, full port dump valve. The full port allows for high flow rates, and its standard soft-seat design gives a consistent leak-free shutoff when the valve closes. Applications include discharging liquid or gas from separators, treaters, knockouts or other vessels. It can also be used for backpressure regulation when paired with a PC48 pressure controller, making it an economical choice for a variety of low-pressure applications.
Features Include:
- Balanced plug control trim with a quick opening characteristic and adjustable top-works.
- Available with a metal-to-metal seat.
- The metal seat version comprises an unbalanced, hex-shaped plug to avoid sand buildup between the plug and cage.
Literature:
MurCal is an Authorized Distributor of BMD products.
MurCal provides experienced application and product support, before and after the sale.
