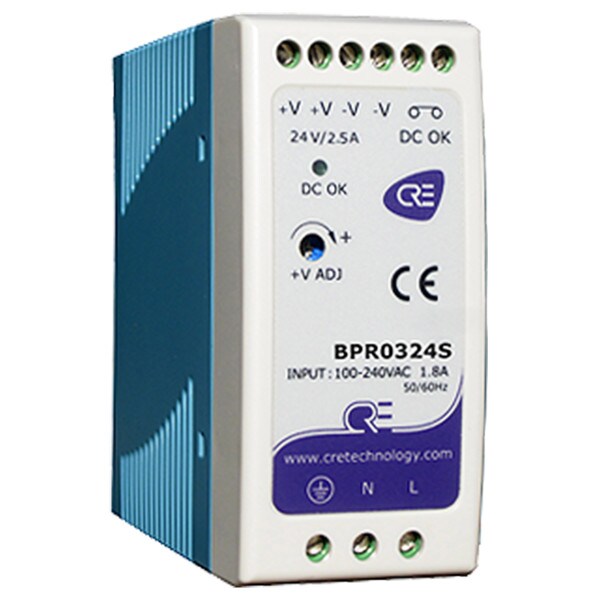

Compact Range Battery Charger; 24V; 2.5A (BPR0324S)
Compact Range Battery Charger; 24V; 2.5A (BPR0324S)
Tiny, Efficient, Advanced Technology
CRE’s Compact Series BPR0324S battery charger is designed to supply constant voltage to the battery with a permanent connection and a maximum of efficiency.
This model is rated at 24V of DC voltage with a rated current of 2.5A and a current range of 0 - 2.5A.
Rated power is 60W with a maximum ripple & noise of 120mVp-p. Ripple and noise are measured at 20MHz of bandwidth by using a 12” twisted pair wire terminated with a 0.1 uf & 47 uf parallel capacitor. Charger dimensions are 1.57” (40mm) W x 3.54” (90mm) H x 3.94” (100mm) D.
Features
• Protections: Short circuit/ overload/ over-voltage
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or TS-35/15
• LED indicator for power on
• FAULT relay contact
• No load power consumption
• 100% full load burn-in test
• 3-year warranty
• Output relay
• Competitive price
Literature
- Battery Chargers Sales Bulletin
- BPR Compact Series Specifications
- BP Battery Chargers Technical Documentation
- Case Study: Off-Power Generation Engine Application
