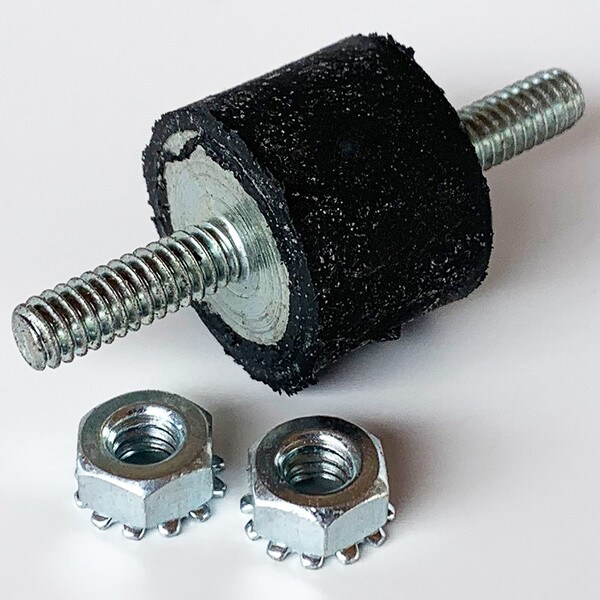

Cylindrical Vibration Isolator: Stud, 1/4"(65000151)
Details
Cylindrical Vibration Isolator: Stud, 1/4" (65000151)
Brand
GRAINGER APPROVED
Manufacturer Part Number
2NPA1
Vibration Isolator Style
Two Threaded Studs
Isolator Material
Rubber
Stud or Tap Material
Clear Zinc Plated; Grade 5
Thread Size
1/4"-20
Stud Length
0.5 in
Overall Diameter
1 in
Height
0.75 in
Maximum Load Downward Compression
50 lbf
Maximum Load Sideways Shear
9 lbf
Includes
0.40 in Deflection
Resistant To
Abrasion
Mounting
Compression
UNSPSC
23153130
Country of Origin
Taiwan (subject to change)
