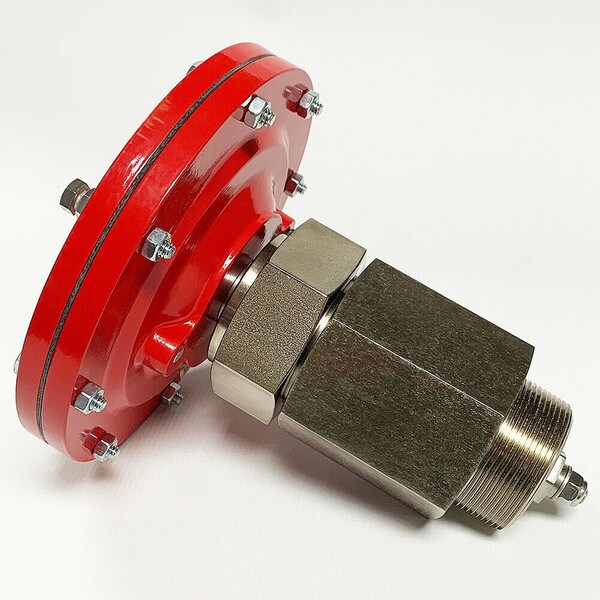

DVU175SS Dump Valve (55700302) *SPECIAL ORDER ITEM*
DVU175SS Dump Valve; 1npt inlet; 3/4 npt outlet; 9mm trim size; 1800psi. (55700302)
———
*SPECIAL ORDER ITEM*
Please Allow Approx. 4 Weeks For Delivery Of This Product
———
The Murphy 1800 PSI Pneumatically Controlled Dump Valve DVU175SS is a pneumatically controlled dump valve. The valves open and close automatically by pneumatic control from a Murphy LS200NDVOR or similar level controller and dump valve operator. Diaphragm operated, the DVU175SS dump valves operate at 30-70 psi (207- 483 kPa) [2.07- 4.83 bar] and up to 1800 psi (12.4 MPa) [124 bar].
Designed for gas compressor scrubbers, the DVU175SS can be used to dump any liquids compatible with its specifications.
PRODUCT FEATURES:
- Compatible With Murphy Level Controls
- Soft Seat Valve
- Manual Valve Operator
- Hex Union Allows Plug and Seat Replacement Without Piping Removal
- Operates on 30–70 psi (207–483 kPa) [2.07–4.83 bar] Control Pressure
Literature
MurCal is an Authorized Distributor of FW Murphy products.
MurCal provides experienced application and product support, before and after the sale.
