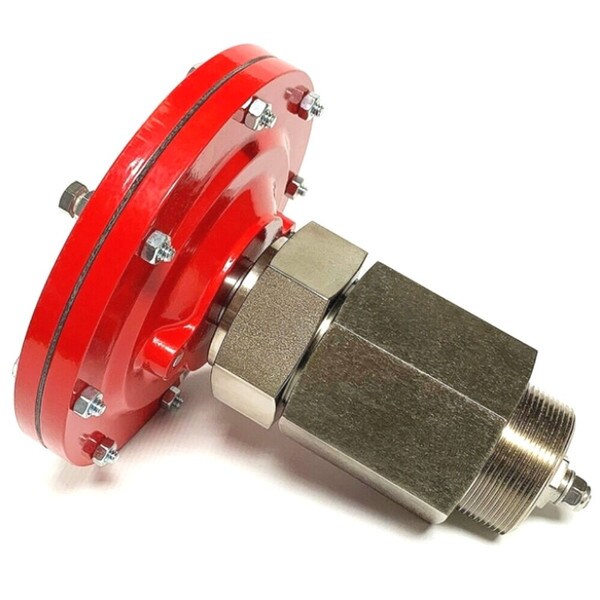

DVU2115 Dump Valve (55700309)
DVU2115: Dump Valve; 2npt inlet; 1 npt outlet; 15mm trim size; 1500psi. (55700309)
The DVU Series features pneumatically controlled dump valves. The valves open and close automatically by pneumatic control from a FW Murphy level controller and dump valve operator.
Diaphragm actuated; a key benefit of this design is a hex union that provides the ability to replace the seat without removing the valve from piping.
The DVU Series is compatible with FW Murphy level controllers. They feature a soft seat valve and manual valve operator. Designed for gas compressor scrubbers, the DVU Series can be used to dump any liquids compatible with its materials of construction
Features:
- For separators/scrubbers to 1500 psi (10.3 Mpa, 103 bar) maximum working pressure
- 2NPT inlet, 1 NPT outlet
- Hex Union Allows Plug and Seat Replacement Without Piping Rem
- Operates on 30–70psi (207–483 kPa) [2.07–4.83 bar] Control Pressure
- Compatible With Murphy Level Controls
- Manual Valve Operator
Literature:
- Sales Bulletin
- Installation & Operation Manual
- Scrubber Level Control System Bulletin
- DVU Selection Guide
