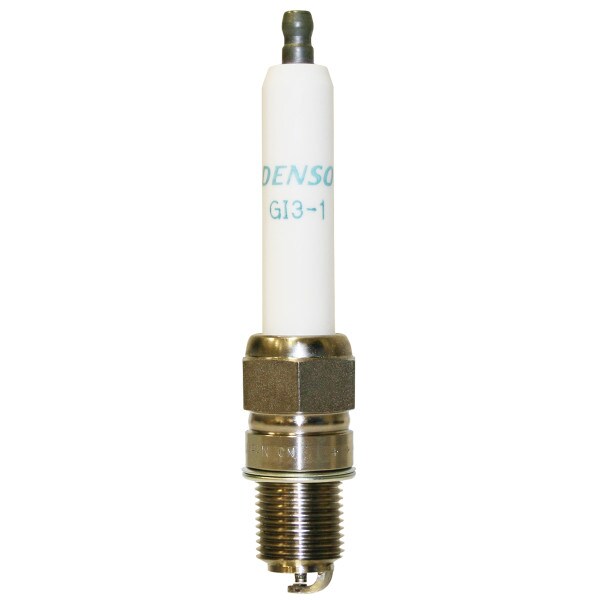

Denso GI3-1 Industrial Ultimate Performance Iridium Saver-Performer (6115)


The GI3-1 Industrial Ultimate Performance Iridium Saver-Performer spark plug reduces maintenance costs by extending work life in high compression lean burn engines.
This unique design guarantees high reliability for withstanding high combustion pressure by incorporating a stress resistant monolithic resistor that adheres to the resistor glass in the high temperature furnace.
The Iridium Saver-Performer's cross groove design on the center electrode (creating four small electrodes) improves sparking performance and suppresses dispersion in voltage value, for an outstanding decrease in required voltage.


Specific details of this model include:


  • Thread Size: 18mm x 1.5
  • Reach: 20.6mm (13/16")
  • Hex Size: 22.2mm (7/8")
  • Gap: 0.3mm (.012")
  • 100% Pre-Fired: All Denso spark plugs are 100% pre-fired to assure the highest quality possible.
  • Copper-Glass Seal: Bonds the center electrode and insulator together for a gas-tight seal. Maintains proper heat and excludes hot combustion gases.
  • Purified Alumina Powder Insulator: Provides exceptional dielectric strength and thermal conductivity allowing the material to stand up to extreme stress.
  • Solid terminal nut.
  • Platinum-alloy tipped fine wire ground electrode, with a platinum pad on the ground electrode and an Iridium pad with cross grooves on the center electrode.

The Denso GI3-1 Industrial Ultimate Performance Iridium Saver-Performer works in the following engine applications:

CATERPILLAR: G3500 (non B, C and E series), G3600 series
CUMMINS: Q19G, QSV81-V16, QSV91-V18
GUASCOR: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480
GE JENBACHER: J612, J616, J620 (1995/9 - BMEP = 16 bar or less)
PERKINS: 4000 Series
SUPERIOR: 1706G2, 1712G1
WARTSILA: W25SG, W28SG, W34SG, W20V, 34SG
WAUKESHA: AT Series: 8L-AT25GL / AT27GL (13/16" Reach Heads), 12V-AT25GL / AT27GL (13/16" Reach Heads) VGF Series Inline 6: F18G, F18GL/GLD VGF Series Inline 8: H24G, H24GL/GLD VGF Series V-12: L36GL/GLD VGF Series V-16: P48GL/GLD VHP Series Inline 6: 2895GL (13/16" Reach Heads), 3521GL (13/16" Reach Heads) VHP Series V-12: L5108GL (13/16" Reach Heads), L5790GL (13/16" Reach Heads), L7042GL (13/16" Reach Heads) VHP Series V-16: P5115GL, P9390GL (13/16" Reach Heads)


Literature:


Application/Cross Reference Brochure


MurCal is an Authorized Distributor of Denso products.
MurCal provides experienced application and product support, before and after the sale.
