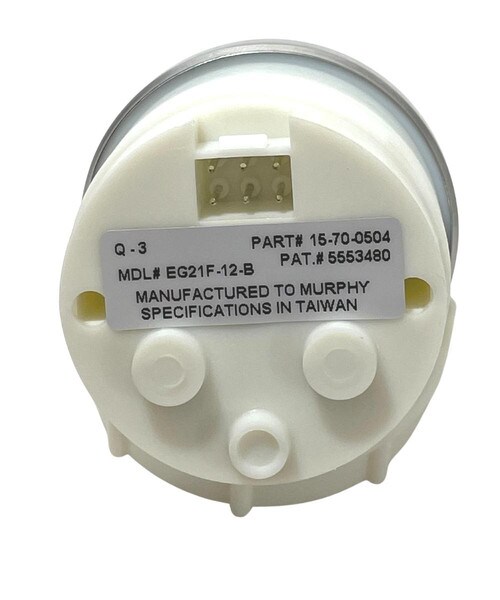

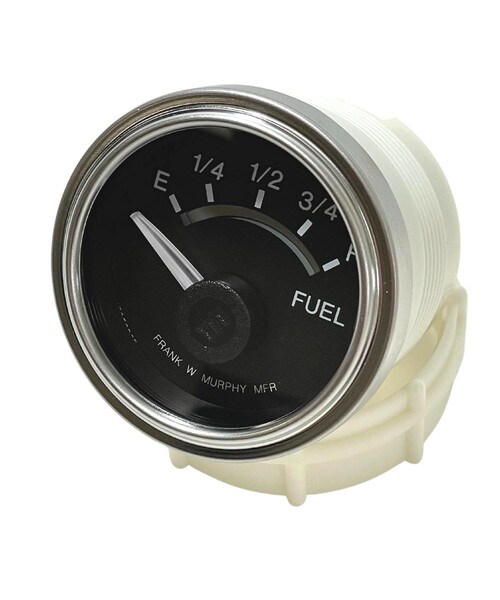

EG21F-12-B Electric Fuel Gage (15700504)
EG21F-12-B: Electric Fuel gage; 12 VDC; SAE Low Profile Stainless Bezel (15700504)
8-18 Volts, shows fuel levels at empty, 1/4, 1/2, 3/4, and full. The EG21F-12-B Electric Gage takes the electric gage to new heights with proven state of the art technology and reliability.
Utilizing our proven EG Air Core movement design, the EG21F-12-B offers technological improvements in overall operation, lighting, accuracy in reading, wiring and installation.
This rugged gage is environmentally sealed and exceed the rigid SAE J1810 standard for reliable operation under tough off-road and power unit environments. Corrosion-resistant materials are used throughout, making the EG21F-12-B highly desirable for marine and other environmentally sensitive applications.
Soft, non-glare dial and pointer illumination is provided by a "cold light" LED and when powered the white lettering and clear pointer become soft red. Mirror band eliminates parallax reading error when the pointer and its reflection are aligned.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
