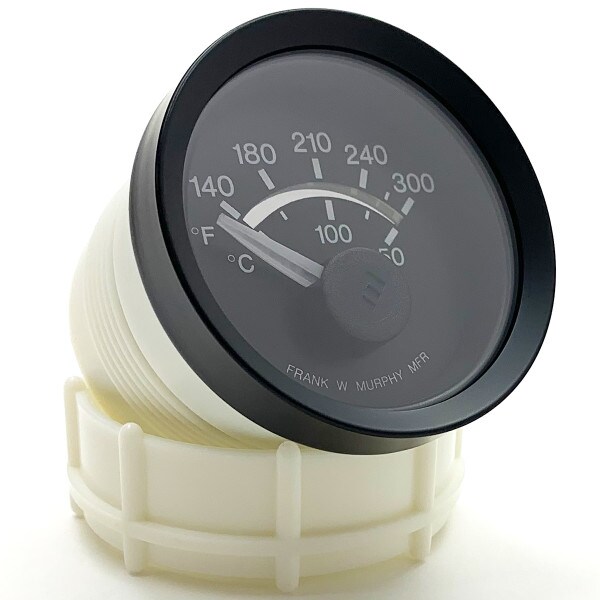

EG21T-300-12-A Electric Temperature Swichgage® (10701300)
EG21T-300-12-A: Temp Swichgage®; 300 max temp; 12 VDC; Black, Semi-Gloss Bezel Finish (10701300)
Features:
- EG Air Core Movement design
- Technological improvements in lighting, accuracy in reading and wiring installation
- Environmentally sealed design
- Exceeds the rigid SAE J1810 standard
- Corrosion-resistant materials
- Desirable for marine and other environmentally sensitive applications
- Soft, non-glare dial and pointer illumination by cold light LED
Specifications:
- Murphy Part No.: EG21T-300-12-A
- Power Input: 12 VDC
- Range: 300°F/149°C
- Bezel: Semi-Gloss Finish Black
- Case: Polyester (PBT), impact and weather resistant with convenient screw-on mounting clamp
- Lens: Clear polycarbonate and UV stabilized
- Air Core Movement: Silicon dampened pointer
- Dial: Black background and white markings; behind dial lighting (white marking becomes red when illuminated); dual scale with mirror band to reduce parallax reading errors
- Swichgage Instrument Sensor: Pressure, fuel, volts set on decreasing scale. Temperature and amps set on increasing scale.
- Output saturation voltage (voltage drop across switch): 1.3-2.3 Volts @ 77°F (25°C) (May require some conditioning to work with logic inputs)
- Swichgage Instrument Set Point Indicator: Visible on mirror band (scale); adjustable from the back of the unit (1/16 in. hex type wrench)
- Wiring: Plug connector with wire leads, 18 AWG (1.0 mm2) x 8 in. (203 mm) length
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Storage Temperature: -77° to 185°F (-60° to 85°C)
- Over Voltage (Gage Movement): Withstands a voltage of 200% of nominal system voltage for 5 minutes. (Meets SAE J1810 stan- dards)
- Reversed Polarity (Gage Movement): Withstands reversed battery terminal polarity indefinitely within operating temperatures Environment and Test: Meets SAE J1810 standards
