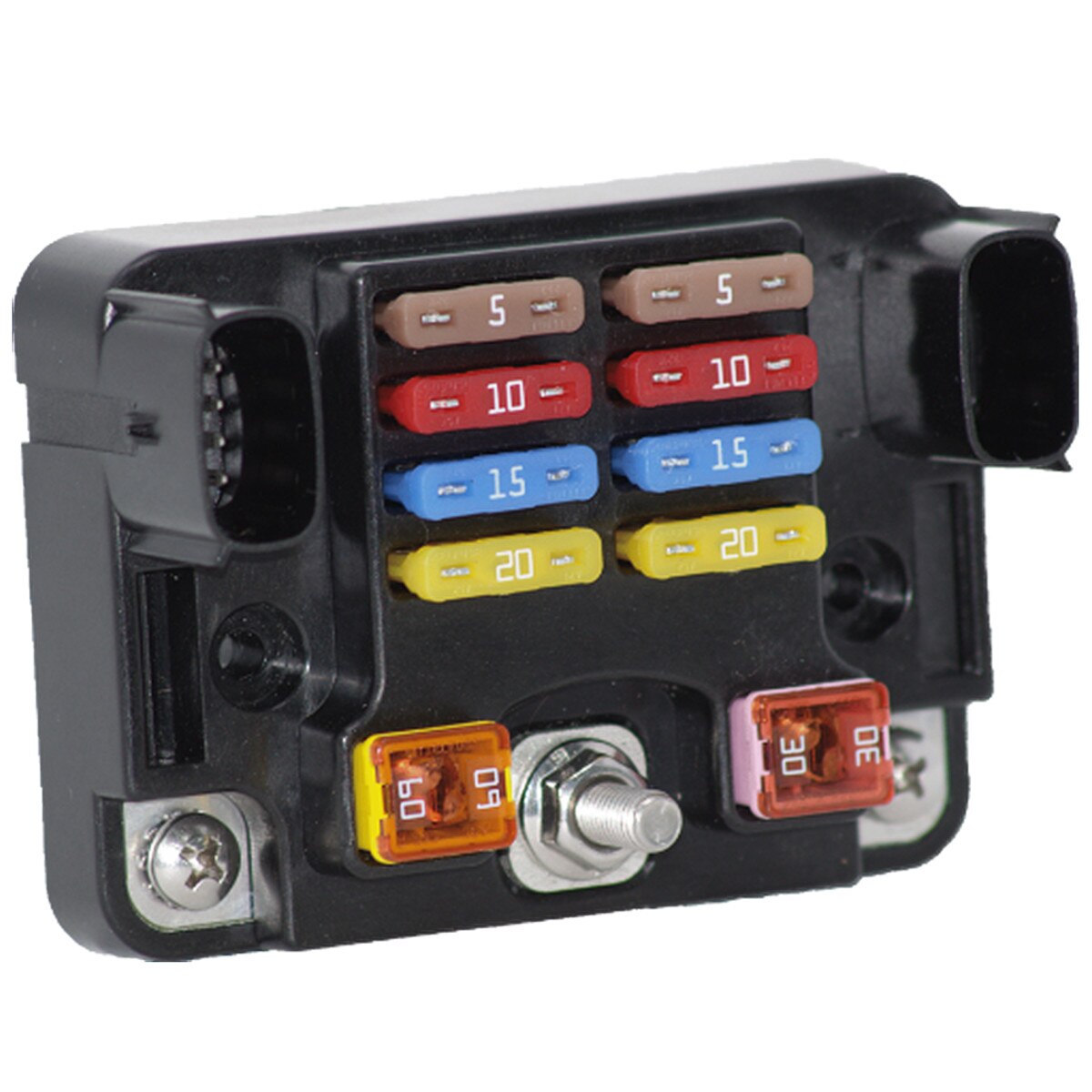

EGIS 8+2 Fuseblock (5015B)
EGIS 8+2 Fuseblock (5015B)
Problems This Solves
• Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
• Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs.
• Two (2) High-Amp (20-50A) Outputs Supports All Necessary Circuit Protection Needs in One Product.
Eight (8) ATO/ATC Fuse Outputs (1-25A)
Two (2) LP J Case Fuse Outputs (20-60 A)
Compact Footprint
Plug & Play Harness Accessories
Features:
• Two (2) High-Amp (20-50A) Outputs
– Supports All Necessary Circuit Protection Needs in One Product.
• Protects Add-On Circuits:
– from accidental short circuits to frame ground or battery negative, or from overload events.
• Simple & Robust Installation:
- Integrated sealed MX-150 (USCAR) plug for low-amp circuits protects wire connections from moisture / corrosion and offers simple plug-in installation.
• Protects Batteries:
- from severe discharges due to short circuits or overload events.
• Bullet-proof Construction:
– Sealed low-amp connections, high temp materials, and Stainless self-locking hardware allow mounting anywhere. 40 waterproof labels included.
• 4 Year Industry Leading Warranty
Literature:
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
