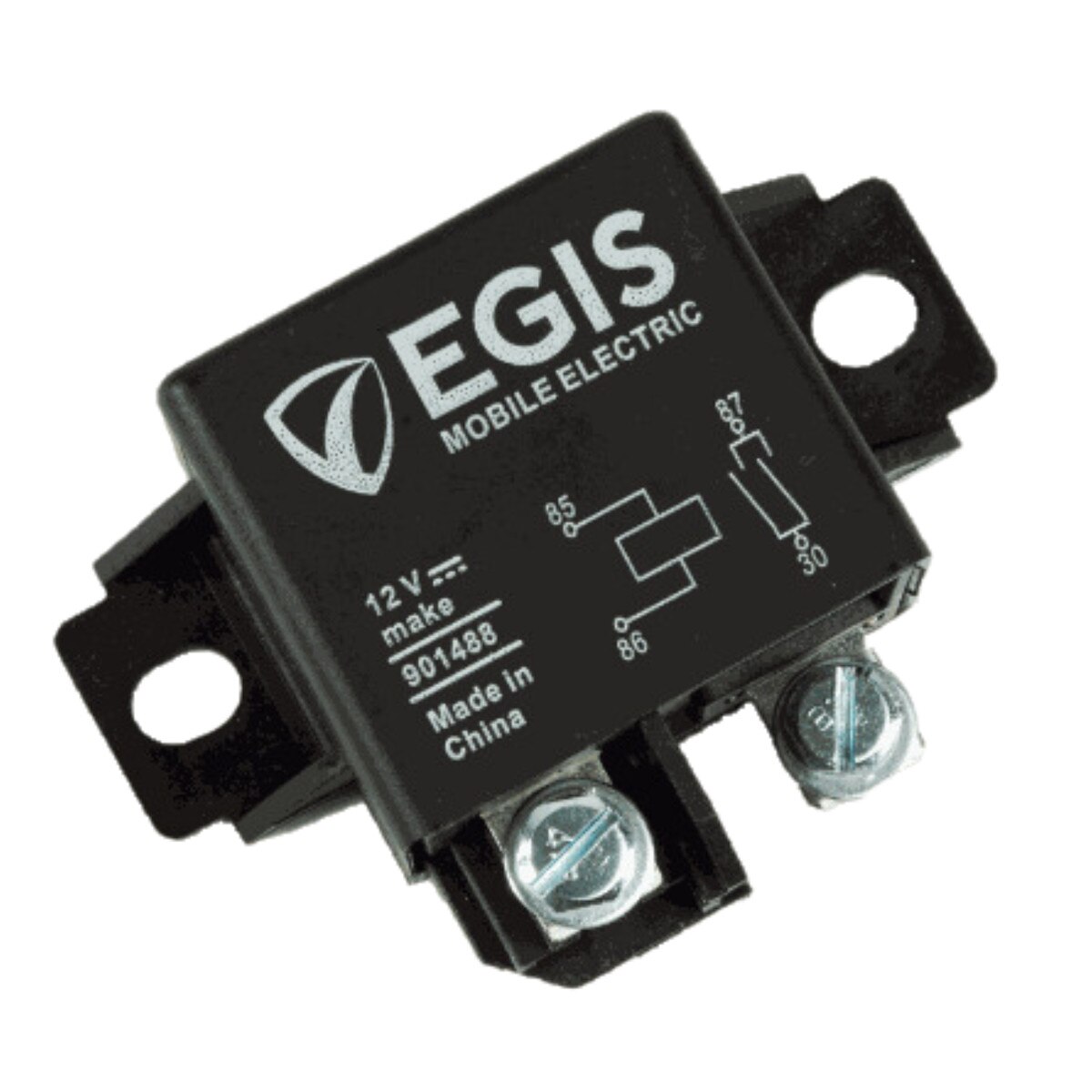

Relay 12V 75 Amp, Bifurcated Contacts (901488)
Relay 12V 75 Amp, Bifurcated Contacts (901488)
Bi-Furcated Contact reduce contact bounce, increase long term reliability. This enables the relay to conduct electrical switching more efficiently, reducing unnecessary heat build up and contact wear.
High Intermittent Amperage rating of 150 amps for up to 3 seconds making this relay great for temporary high equipment start up amp draw applications.
Offset Input/Output Terminals and integrated divider design help prevent accidental contact shorts
High Temperature Ratingof 125C/257F makes this a great relay for high temperature installation environments like engine bays and other low ventilation spaces.
Bullet-proof Construction: Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting.
Dual Mounting Holes on either side for easy mounting with ¼-20”/M6 1.25 Bolts or screws up to #14 screw.
Incorporate The Highest Quality Materials for superior performance and has a high 100,000 electrical switching cycle capacity.
Enhanced Vibration and Shock Protection, ensures enhanced reliability and a long service life and maintains electrical system operational readiness.
Literature:
MurCal is an Authorized Distributor of EGIS products.
MurCal provides experienced application and product support, before and after the sale.
