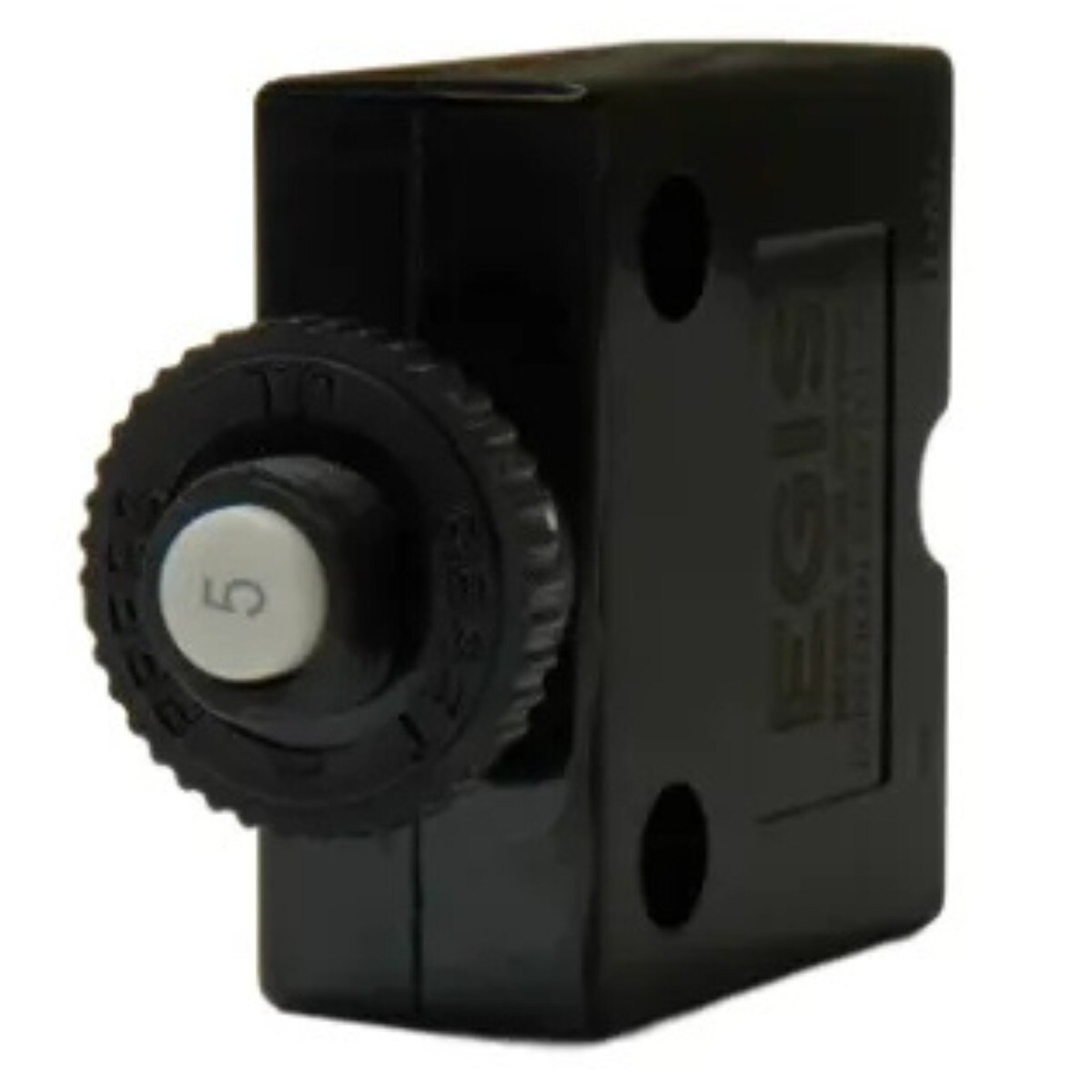

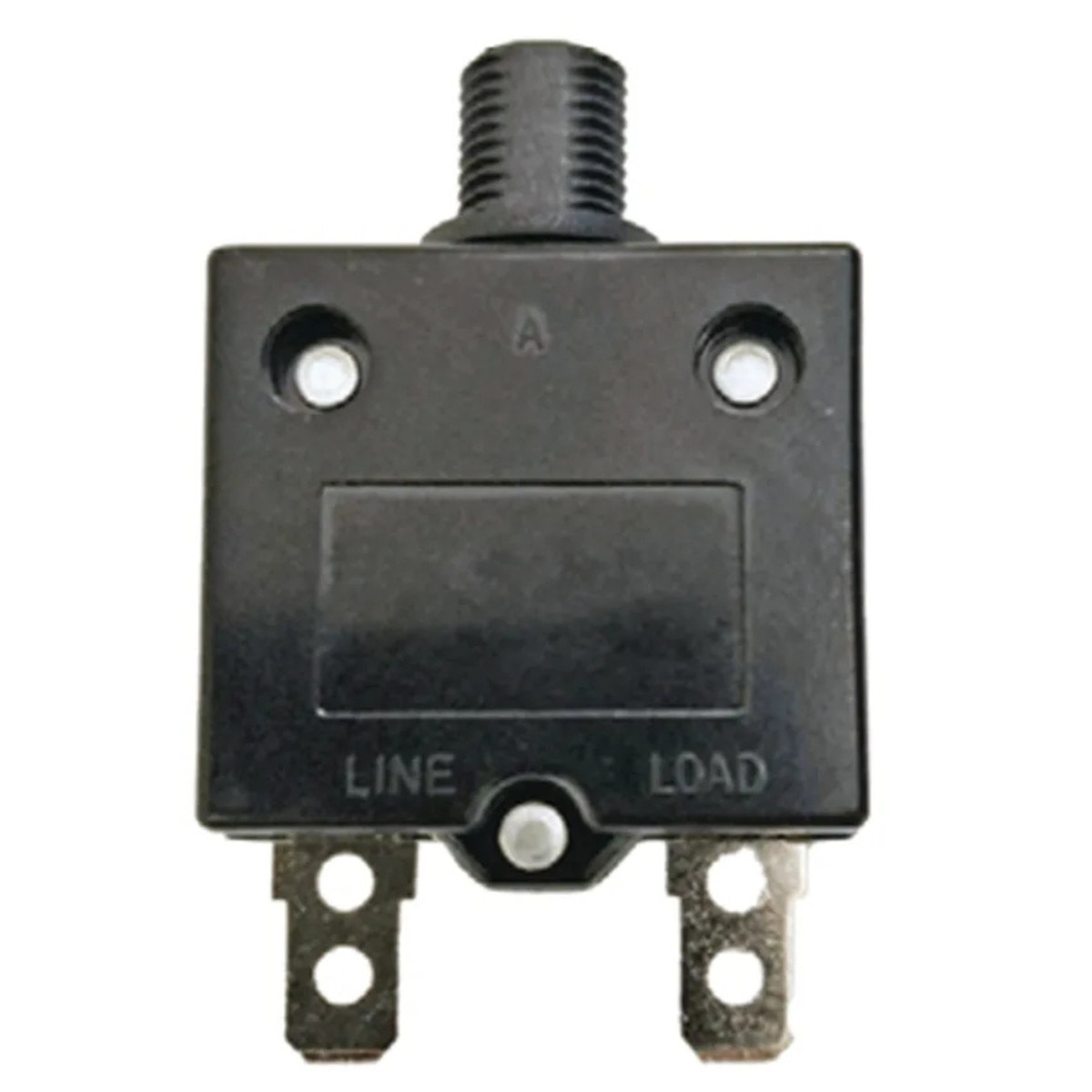

EGIS Push Button Panel Mount Circuit Breaker, Spade Terminals, 5 Amp (4711-05B)
Details
EGIS Push Button Panel Mount Circuit Breaker, Spade Terminals, 5 Amp (4711-05B)
The Egis Mobile Electric 4711-05B is a 5-amp, push-to-reset panel mount circuit breaker designed for reliable, long-lasting circuit protection in demanding environments. It features 1/4" male spade terminals for quick and easy wiring.
Product Overview
This circuit breaker is engineered for durability, making it an excellent choice for marine, automotive, and industrial applications where vibration, temperature extremes, and moisture are present. Its "push-to-reset" design provides both immediate visual indication of a tripped circuit and a simple method to restore power.
Key Features
- Push-to-Reset Functionality: Provides a clear visual cue when a circuit has tripped and allows for a quick, manual reset to the ON position.
- Ignition Protected: Designed for safe installation in closed compartments where potential explosive gases may be present.
- Rugged Construction: Built to withstand harsh environments with high-temperature-rated materials and stainless steel hardware.
- Compact & Easy Installation: Fits a 3/8"-27 mounting hole and comes with a knurled nut and Palnut for a clean, secure panel mount.
- Industry-Leading Reliability: Backed by a 4-year warranty, reflecting its suitability for professional and critical power systems.
Key Specifications
- Amperage: 5 Amp
- Terminal Type: 1/4" (0.25") Male Spade Terminals
- Max Operational Voltage: 50V DC
- Mounting Bushing: 3/8"-27 Nylon Bushing
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Ingress Protection: Compatible with optional silicone rubber boots for added protection against dust and water.
Ideal For
This breaker is perfect for protecting sensitive electronics, lighting, and auxiliary equipment in vehicles, boats, and industrial control panels where space is limited and reliability is non-negotiable.
