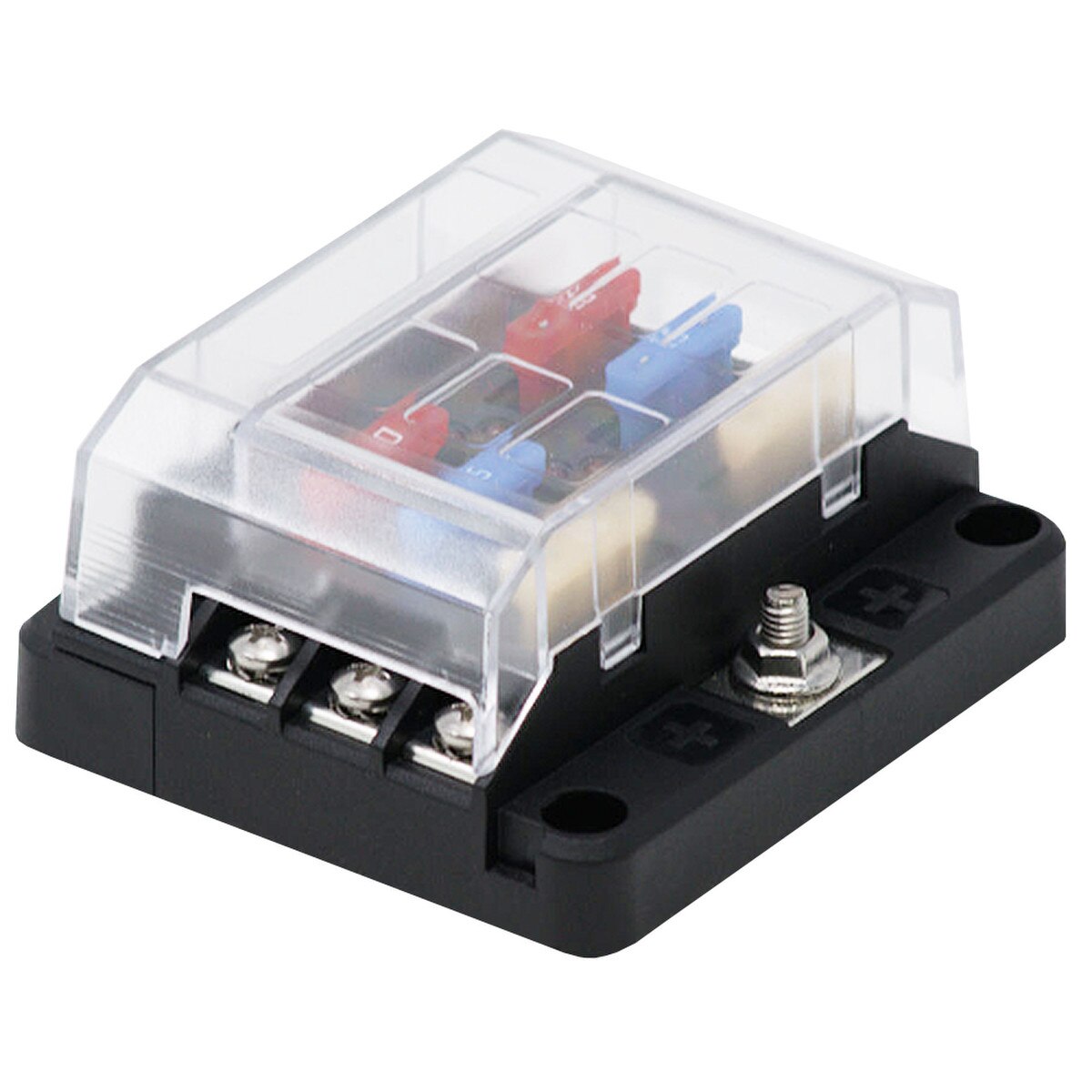

EGIS RT Fuse Block (8028B)
EGIS RT Fuse Block 6 Pos w/ LED Indication, Bulk (8028B)
• Blown Fuse LEDs:
– speed correction of system faults & improve ability to remotely diagnose customer issues.
• Harsh Environment Design:
- and optional weather-proof labels in standard or customized options.
• Protects Branch Circuits:
- by accepting ATO style fuses ranging from 1 through 40 Amps.
• LED Blown Fuse Indication:
- provides rapid diagnostic feedback of system faults, allowing technicians improved ability to remotely diagnose or identify the source issue.
• Supports SAE Circuit Protection Standards:
- for thermal/short circuit events.
• Modular Design:
- allows installers to stock only two basic products (8028 & 8030) while retaining ability to easily construct all variations or purchase individually from factory. Ground block can optionally be re-located away from block for improved wire routing.
• Spare Fuse Locations:
– in each 6-output block (qty 2) allow rapid repairs of likely blown fuses and a location to store a test resistor for siren testing.
• Bulletproof Construction:
– Designed with high temperature materials and stainless-steel self-locking hardware allow mounting anywhere on vehicle.
• 4 Year Industry Leading Warranty
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
