EGIS Terminal Block 30A - 4 Circuit (2230-04B)
EGIS Terminal Block 30A - 4 Circuit (2230-04B)

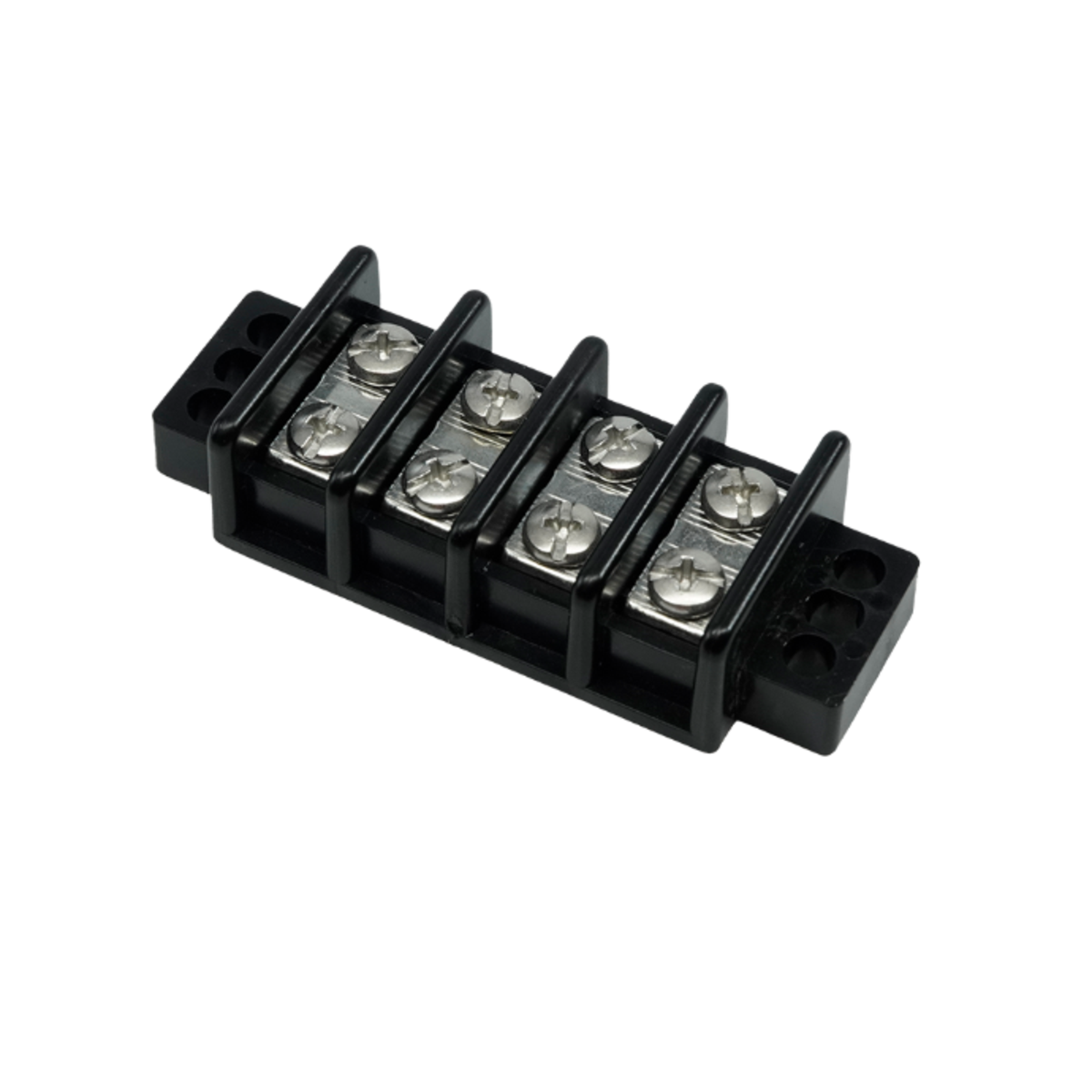

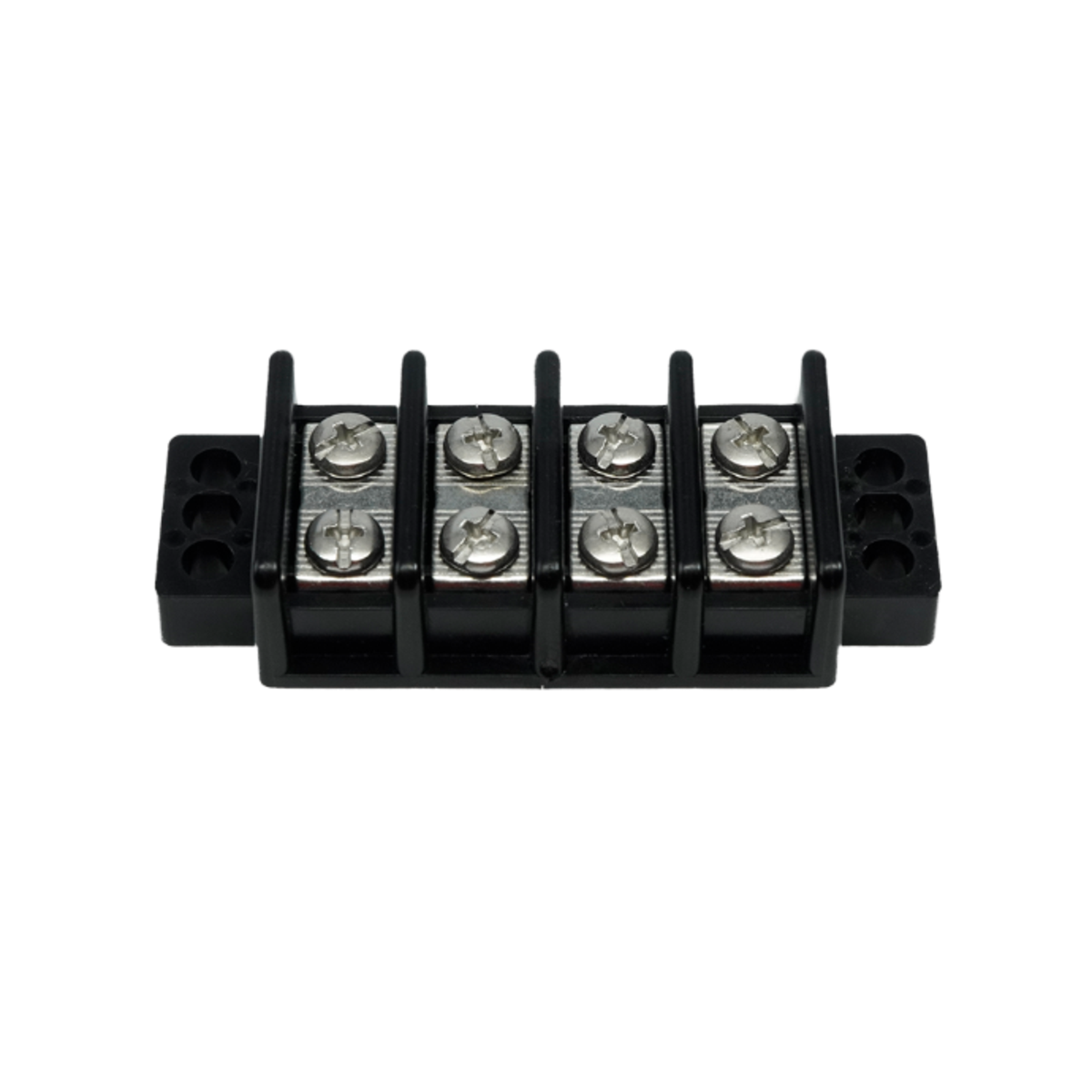

The Egis Mobile Electric 2230-04B is a high-performance, marine-grade 4-circuit terminal block engineered for clean, isolated power distribution across auxiliary mobile electrical systems.
Key Features & Specifications:
Electrical Capability: Safely handles a 30 Amp continuous current rating and supports up to 125V/240V AC or DC configurations, making it completely compatible with 12V, 24V, 36V, and 48V setups.
Premium Insulation Architecture: Designed with specialized high-barrier insulation walls to eliminate short-circuiting between adjacent ring terminals and grounding surfaces. Integrated anti-rotation ribs secure terminal lugs firmly during high-vibration applications.
Industrial Construction: Built with heavy-duty phenolic/high-temperature composite molding, tin-plated copper alloy conductors for optimal current flow, and corrosion-resistant stainless steel hardware.
Literature:
MurCal is an Authorized Distributor of EGIS Mobile Electric products.
MurCal provides experienced application and product support, before and after the sale.
