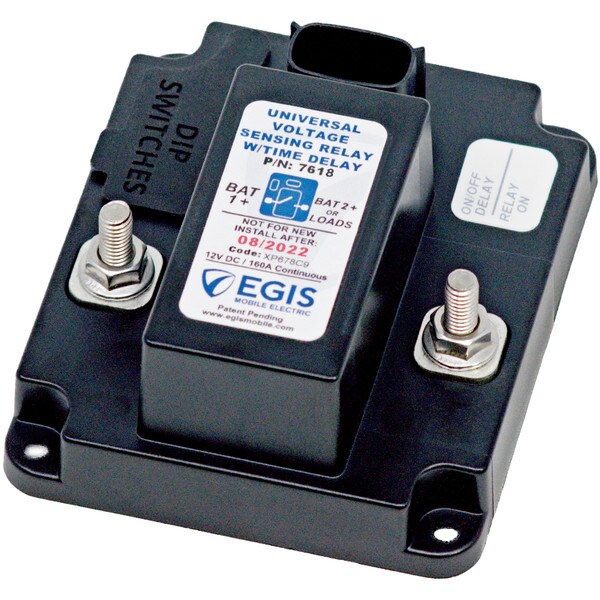

EGIS Universal Relay (7618B)
EGIS Universal Voltage Sensitive Relay w/ Optional Time Delay, 160 Amp (7618B)
12V U-VSR w/2’ Gnd/Key Wires Bulk
Problems This Solves
Prevents add-on equipment from draining batteries, maximizing operational readiness by eliminating dead batteries, saving total cost of operation.
Ensures power available to equipment after engine is off or at end of shift (video downloads) are satisfied while automatically turning off after a preset time or optionally if battery charge is low.
Ensure dual battery systems function safely and effectively by sharing charging power when available and isolating batteries when desired to ensure starting or communications ability.
Reduce voltage drop from battery to loads by eliminating need for long power cables runs to human access areas, also reducing costs.
Four Functions in One Flexible Device: Time Delay Relay, Low Voltage Disconnect, Automatic Charging Relay/Battery Isolator, or a Simple Relay/Solenoid Switch.
Prevent auxiliary loads from draining batteries, maximize electrical system readiness by eliminating dead batteries and reduce long- term electrical system maintenance costs.
Ensure dual battery systems function safely and effectively by sharing charging power when available and isolating batteries when desired to ensure starting or communications ability.
Reduce voltage drop from battery to loads by eliminating need for long power cables runs to human access areas, also reducing costs.
Adjustable Time Delay: 0 sec - 15 hr
Adjustable On/Off Voltage Trigger
Adjustable Low Voltage Protection
Priority Override: Key Signal or UV/OV
Features:
• Ultra-Low Power Draw: – Lowest off-state current draw in industry (1.3 mA).
• Flexible Application Options:
– Install as a Time Delay Relay, Battery Management Relay, Low Voltage Disconnect, or Simple Relay. On/Off trigger via external Ignition signal and/or alternator voltage sense, Adjustable voltage trigger levels, Adjustable low voltage protection levels, and Ability to determine ignition input priority.
• Simple & Robust Installation:
- Sealed plug/ harness included. Combined timer & high-amp relay reduces install time/costs. Optional output bus bar connects RT or CT fuse blocks.
• Adjustable Optional OFF Time Delay:
- 0 seconds to 15 hours.
• Diagnostic Feedback:
– via optional external led and on-board LEDs.
• Bullet-proof Construction:
– Sealed unit, high temperature materials allow mounting anywhere on vehicle. Integrated thermal overload protection.
• Kill Switch Input Option:
– Eliminates need for using thermal circuit breakers as service maintenance switches, reducing voltage drop to electrical loads.
• Two Standard Battery Check Systems
– Works with both constant and intermittent loads.
• Meets Stringent OEM Standards:
– for electrical transient self-protection.
• 4 Year Industry Leading Warranty
