EGS21P-100-12 Electric Pressure Swichgage® (05702405)
EGS21P-100-12: Electric Pressure Swichgage®; 0-100 psi; 12V (05702405)

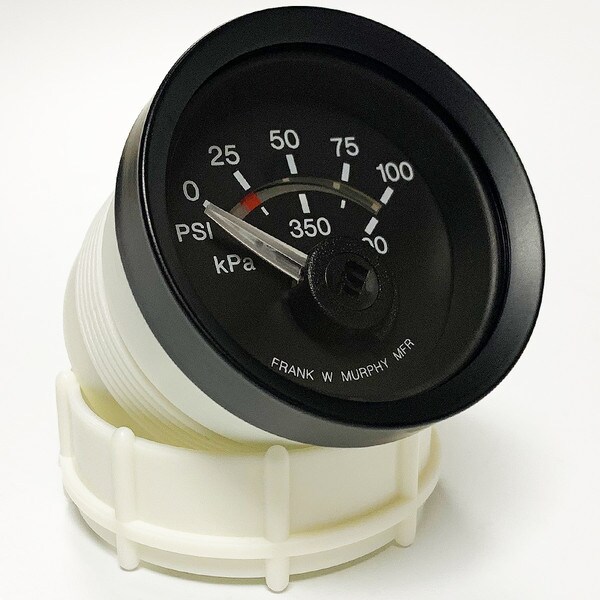

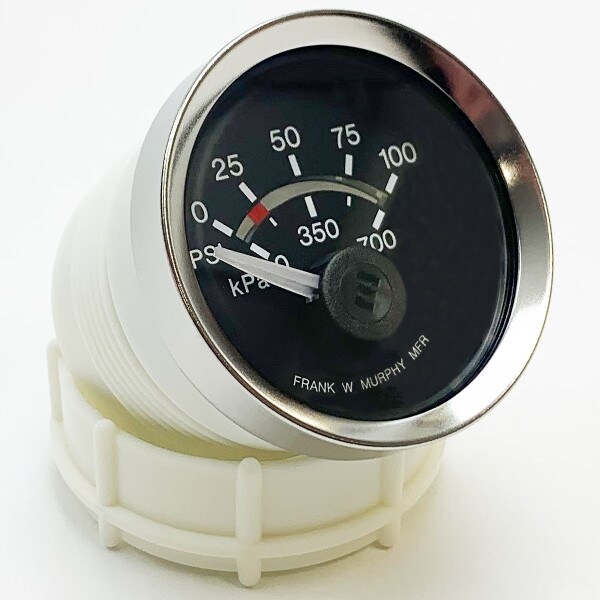

The 2-1/4" EGS21P-100-12 Electric Pressure Swichgage® has a pressure range of 0-100 psi: 12VDC, an impact and weather resistant polyester case, polycarbonate lens and a stainless-steel bezel.
The EGS21P-100-12 takes the electric gage to new heights with proven state of the art technology and reliability.
Utilizing our proven EG Air Core movement design, the EGS21P-100-12 offers technological improvements in overall operation, lighting, accuracy in reading, wiring and installation.
This rugged gage is environmentally sealed and exceeds the rigid SAE J1810 standard for reliable operation under tough off-road and power unit environments. Corrosion-resistant materials are used throughout, making the EGS21P-100-12 highly desirable for marine and other environmentally sensitive applications.
Soft, non-glare dial and pointer illumination is provided by a "cold light" LED and when powered the white lettering and clear pointer become soft red. Mirror band eliminates parallax reading error when the pointer and its reflection are aligned.

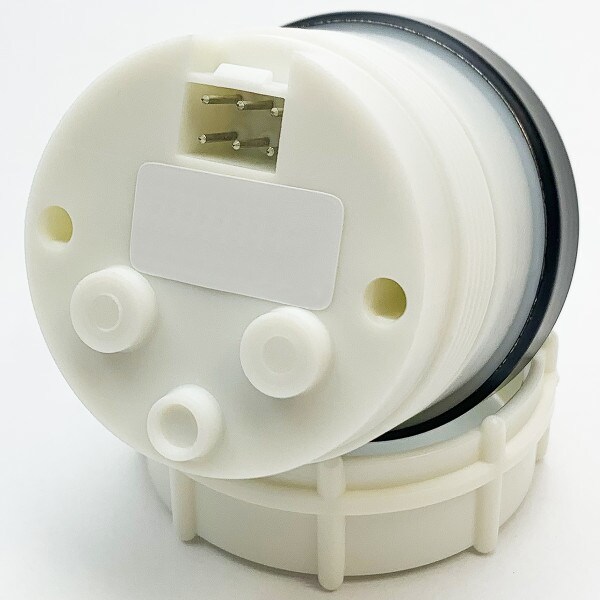

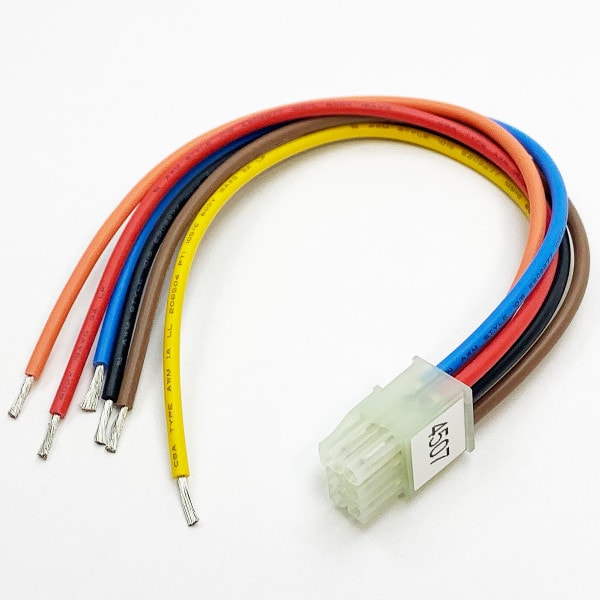

The EGS21P-100-12 Swichgage® also has an adjustable set point PowerHall® Effect switch output for operating alarms or equipment shutdown. The trip point is adjustable over 90% of the scale and has a set point indicator visible from the gage face. This gage features a spin-on gage clamp that will accommodate panel mounting up to 3/4" thick. A plug-in wire connector is provided for positive and easy connection.
Now you can have both the ease of electric gage installation, and the reliable switching of Murphy's famous Swichgage® instrument.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
