The EL150K1 Liquid Level Swichgage instrument is a combination liquid level gauge and low limit switch; the instrument includes:


(1) a chamber with pivotal float,


(2) an indicating dial with pointer,


(3) a low level contact.


When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation, and closes a switching circuit if the level falls to the low-limit set point.




The primary use of the EL150K1 is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems.




The EL150K1 Liquid Level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs and activate alarms and/or shut-down at a predetermined minimum level.




This instrument is built for low pressure systems with a maximum of 25 psi (172 kPa) [1.72 bar].




Features

•
  Snap-Switch: SPDT rated 10 A @ 125 VAC;



•
  0.5 A @ 125 VDC;



•
  10 A 30 VDC.



•
  Die cast aluminum, polyurethane coated case; brass float; polycarbonate lens.



•
  Wire is (3) 18 AWG x 14 in. (1 mm2 x 356 mm).



•
  An explosion-proof model is available.


Literature

1.
   Sales Bulletin



2.
   Installation Instructions



3.
   Click the link below to see a much larger image:



4.

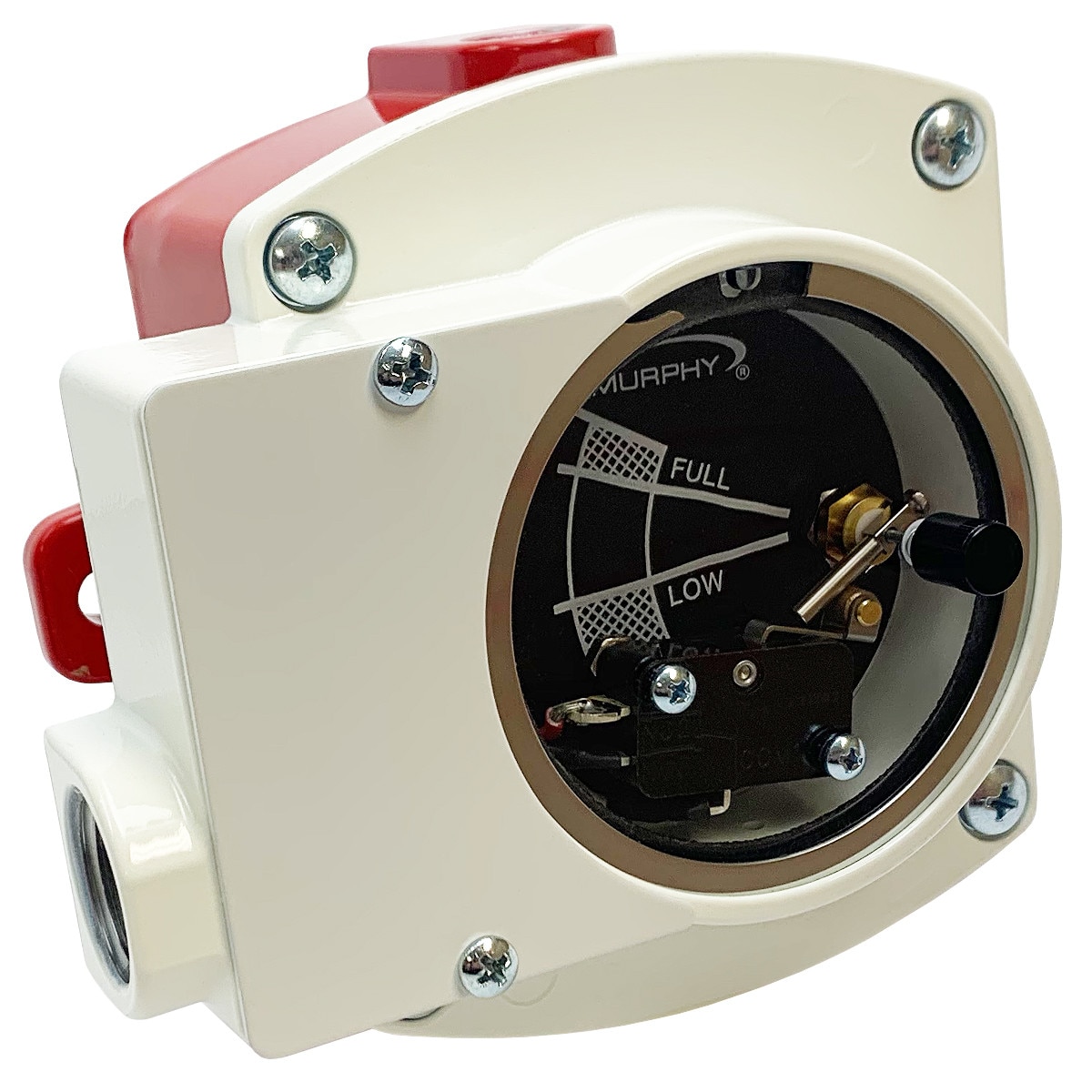

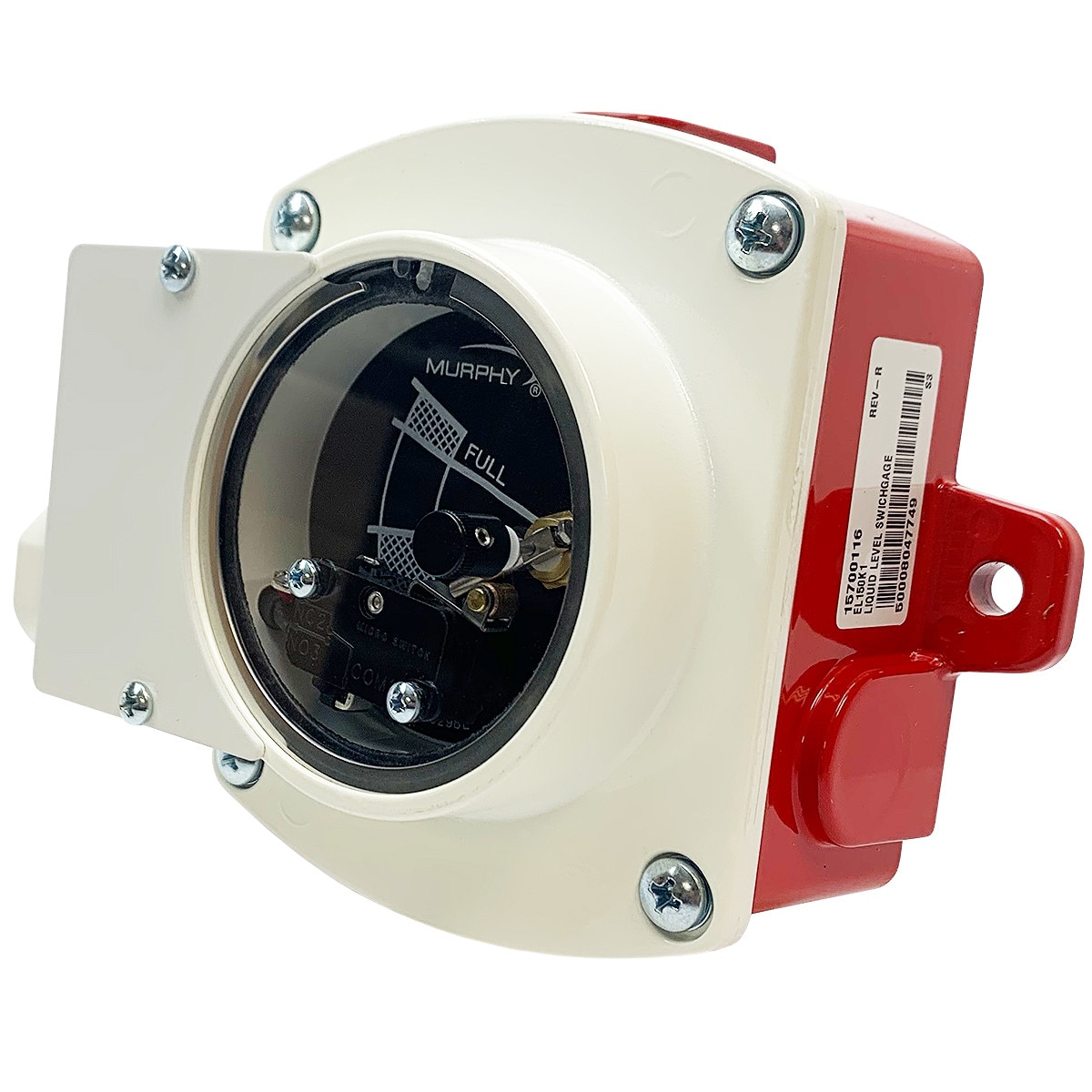

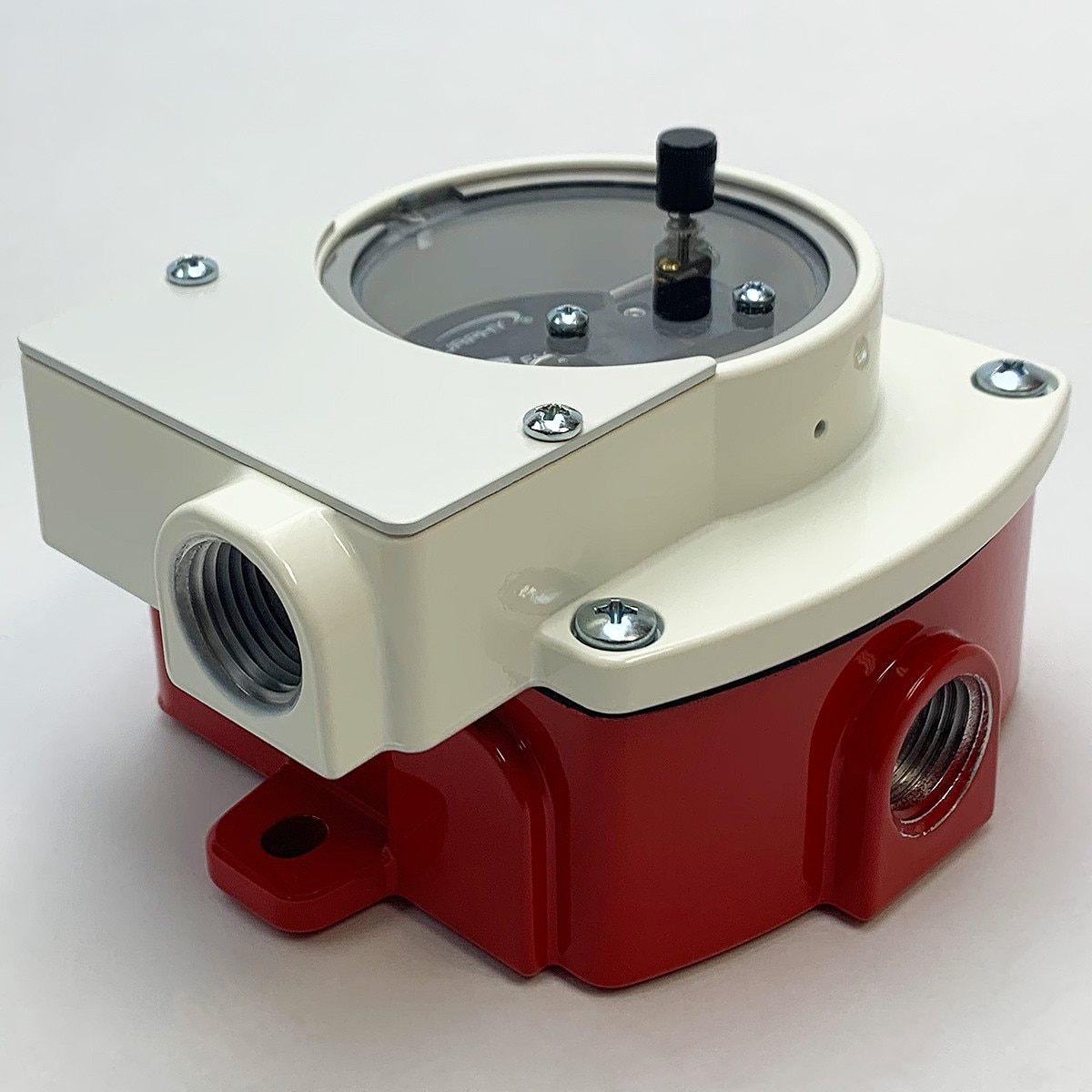

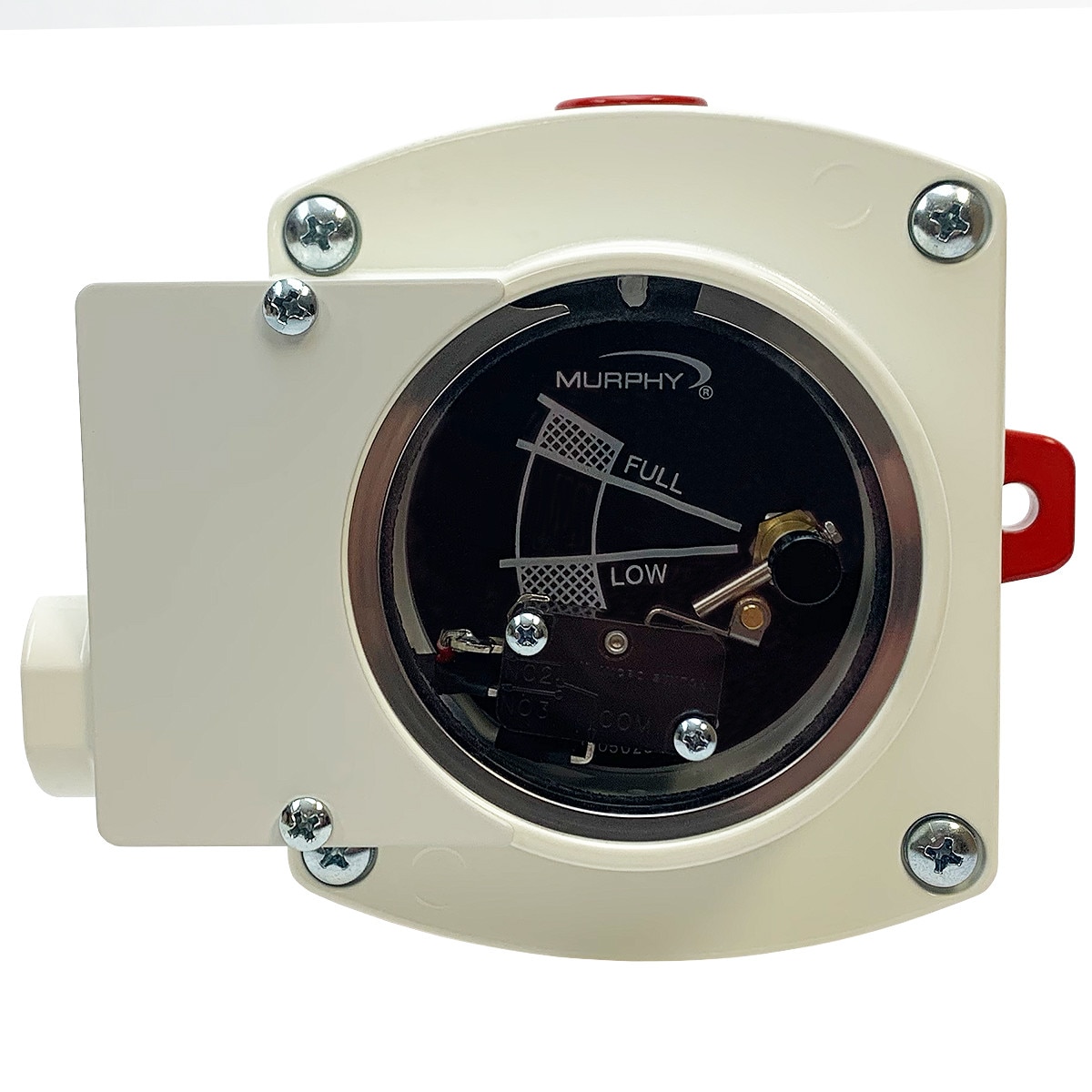

   Enlarged photo of the EL150K1 with and without the Protective Visor mounted
