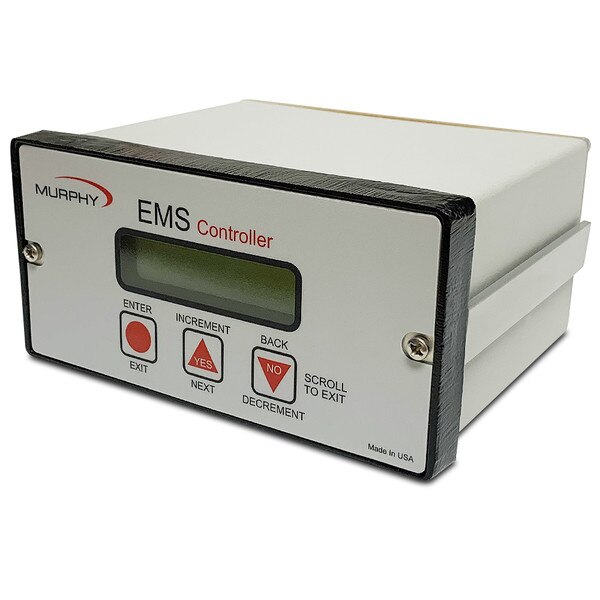

EMS467 Controller (ZR30279) (40090044)
EMS467 Electronic Monitor/Programmable Controller w/ CUSTOM program (ZR30279) (40090044)
The EMS467 Electronic Monitoring System/Controller is micro-processor based for monitoring and control of equipment functions. It is especially suited to tasks requiring remote modem or SCADA communications.

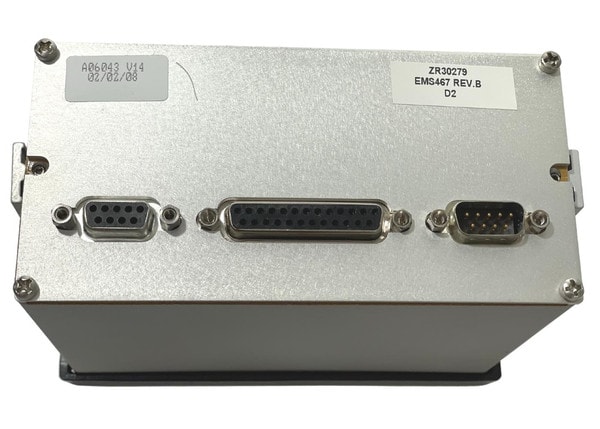

The four built-in communication ports provide a variety of communications capabilities. Basic programs provide selectable auto or manual start/stop and first-out shutdown for engine functions such as a pressure, temperature, level and overspeed. Time delays for lock out during start up are included.
The EMS467 can be applied as an RTU to interface between SCADA applications and other control platforms. With an inexpensive wireless data modem attached, the EMS467 can be used for remote monitoring and control through the internet. The unit can send emails, serve web pages, and transmit data to remote servers.
An external PC card reader can be used with the EMS467 to log data from flow meters, pressure transmitters, electric gauge senders, and other sensing devices.

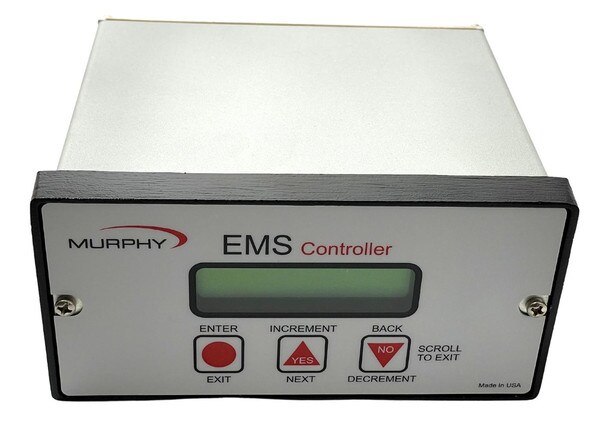

This is a popular application in the flood control market. Operating data is displayed on a 32 character back-lit alpha-numeric liquid crystal display. An on-board real-time clock keeps a log of equipment running hours and alerts you when to change oil, filters and perform other routine service.
The EMS467 operating parameters are configured through a simple three-button interface. Access to the system memory is controlled by entry codes.
A password-protected program uses a built-in memory to display the alarm/shutdown history, including a display of the last ten shutdowns, when and why they occurred, and displays all of the engine operating conditions at the time of the last shutdown.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
