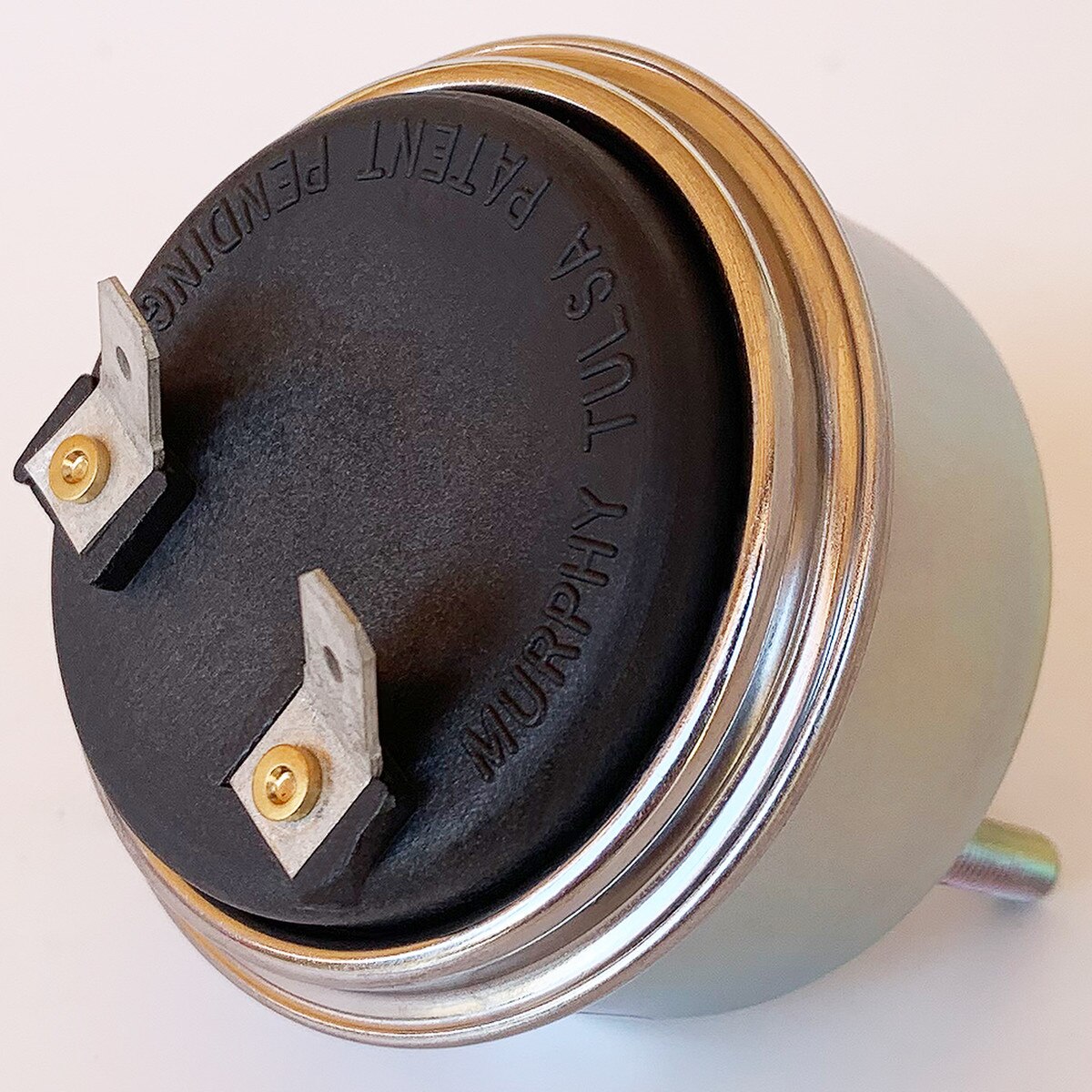

ES2PM-200 Wire Pressure Sender (05701748)
ES2PM-200: 2 Wire Pressure Sender; 200 psi max (05701748)
The ES2PM-200 Pressure Sender is a 2-wire ungrounded pressure sender for use with electric pressure gages. Rated at 200 psi maximum, and ranging from 240 ohms at 0 psi to 33 ohms at 200 psi. The manufacturer recommends mounting off-equipment. Ideal for marine applications.
The ES2PM-200 is designed to be used in conjunction with our EG Series Swichgage® Instruments as well as CAN I/O modules.
NOTE: Always provide proper circuit protection with fuses or circuit breakers.
